COMMUNICATIONS
Use the Communications Transports window to setup, edit, and configure numbered
user sockets or serial ports for your scanning system. User sockets are another interface
available for Ethernet communication. There are nine available.
Transport parameters are used to setup the serial or Ethernet configuration to match
the transmit/r
eceive parameters of an external interface.
To edit the Transports settings:
1. In the menu tree under Modify Settings, navigate to Global Settings | Communica-
tions | Transports.
The Transports window opens.

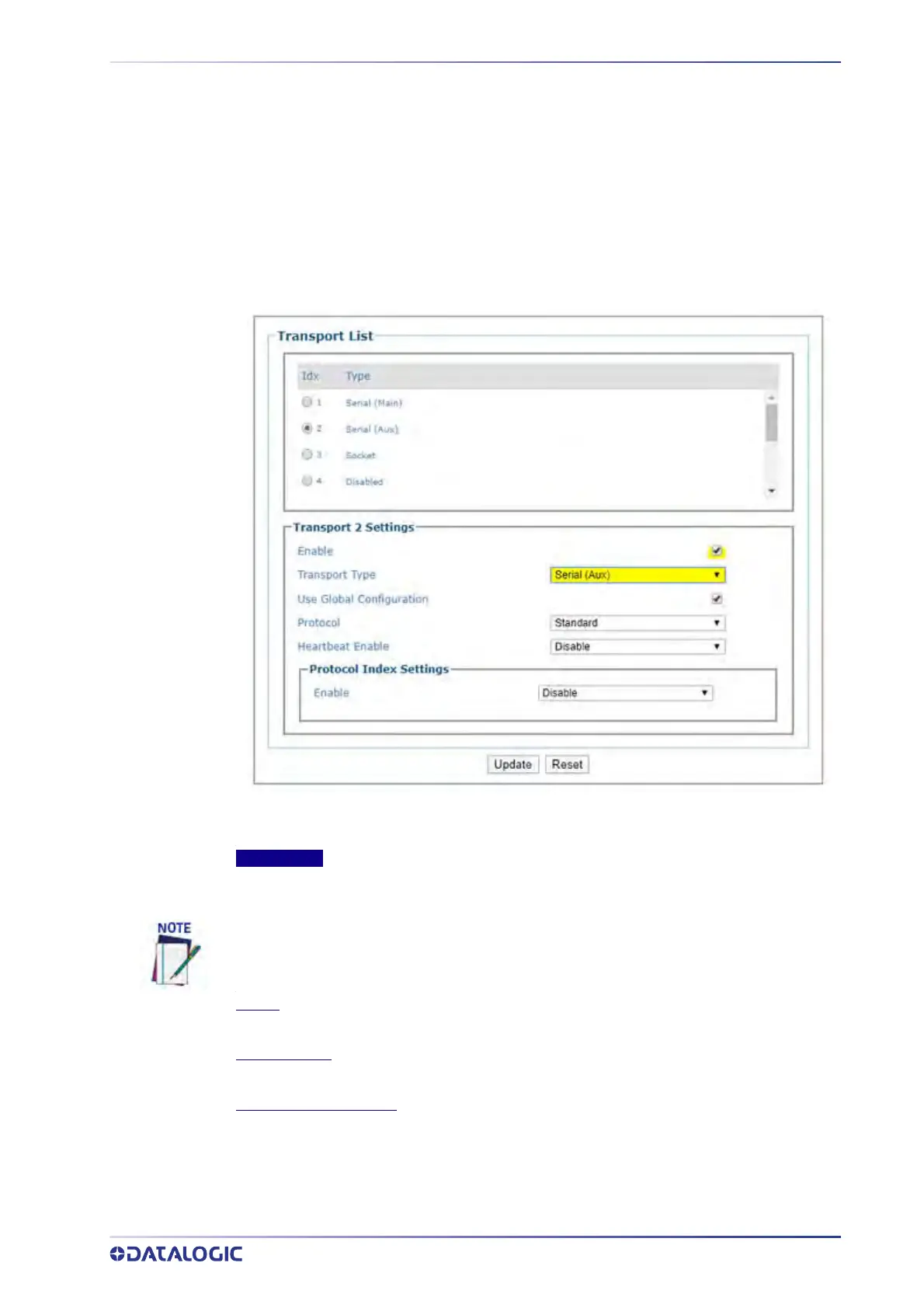

2. Enter the appropriate information in the form as described below:
Transport List
Select an Idx option button in the list at the top of this window to create a new transport
setting item, or to edit an existing one.
Enable
Select the check box to reveal the related configuration options.
Transport Type
Click the drop-down to select the transport type; choices are Serial (Aux) or Socket.
Use Global Configuration
Select the check box to reveal the global configuration options. When Global Configuration is
selected, any of the camera’s in the tunnel will use this transport.When Global Configuration is
not selected a drop-down menu is presented which allows for the selection of the camera's in
the array to transmit the data.
Transport # 1 and 2 are the only setting that allows for a Serial communication connec-
tion.
