ELECTRICAL INSTALLATION
66
AV500/AV900 2D CAMERA
CBX800

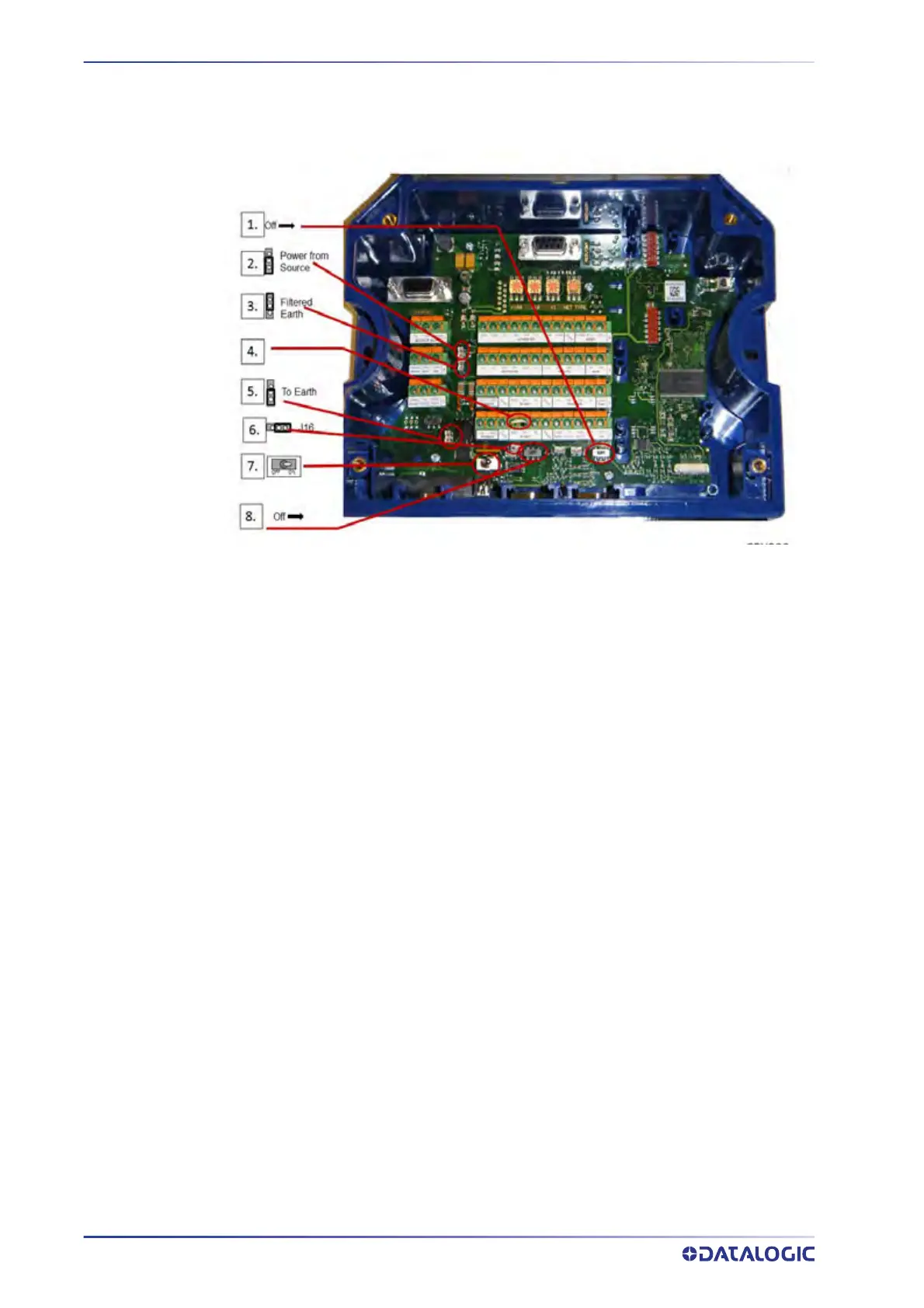

Please verify that the CBX800 connection box is configured for the AV500/AV900 appli-
cation as follows.
1. Set HOST RS485HD TERM switch to OFF.
2. Set Power Source Selector jumper to FROM SOURCE.
3. Set Shield jumper to FILTERED Earth.
4. Insert jumper wire in pin block from REF to ID+ (one jumper in either block is suffi-
cient).
5. Set DEVICE CHASSIS GROUNDING to Earth.
6. Set J16 Jumper 16 to right position.
7. Set POWER switch to ON.
8. Set ID-NET TERM switch to OFF.
