Imaging Calibration Wizard
Use the Imaging Calibration Wizard to automatically calibrate focus and sensitivity for
the Fixed, Dual and Sequential focus modes.
To access the Imaging Calibration Wiz
ard:
In the menu tree under Modify Settings, navigat
e to Device Settings | <Camera Name>
| Imaging. The Imaging window opens. Click the Imaging Calibration Wizard button.
The steps for this wizard are different based upon the focusing method you chose.

Fixed Focus Calibration

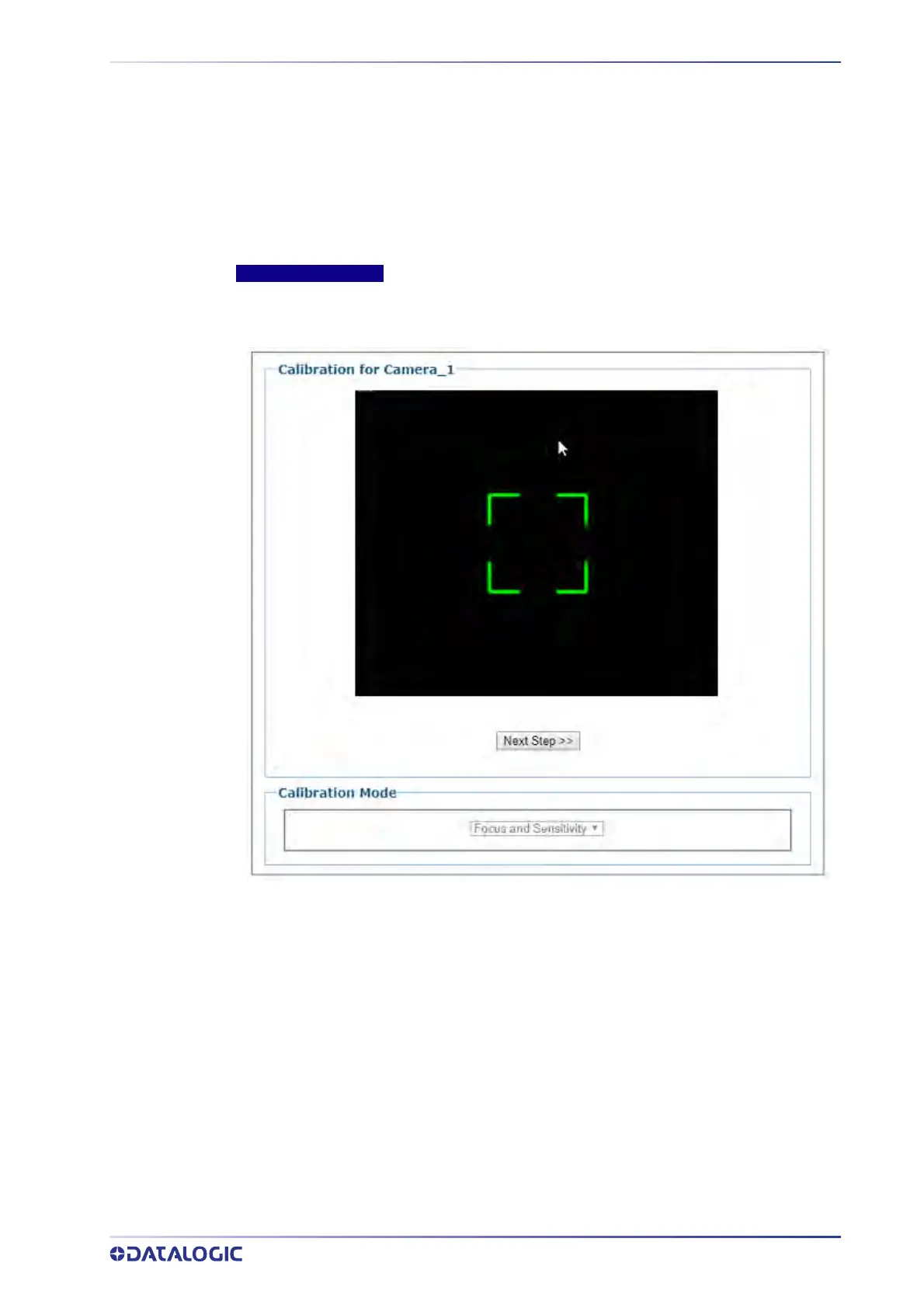

1. When you click the Imaging Calibration Wizard this is the first screen you will see.
Click Next Step>>
.
2. Place a Calibration Ta
rget, or clean barcode, in the middle of the desired working
range. Make sure the checker board grid, or a clean barcode, is centered in the
green alignment area. Leave the target under the camera and press Next Step>>.
