INTRODUCTION
14 AV500/AV900 2D CAMERA
Test Mode

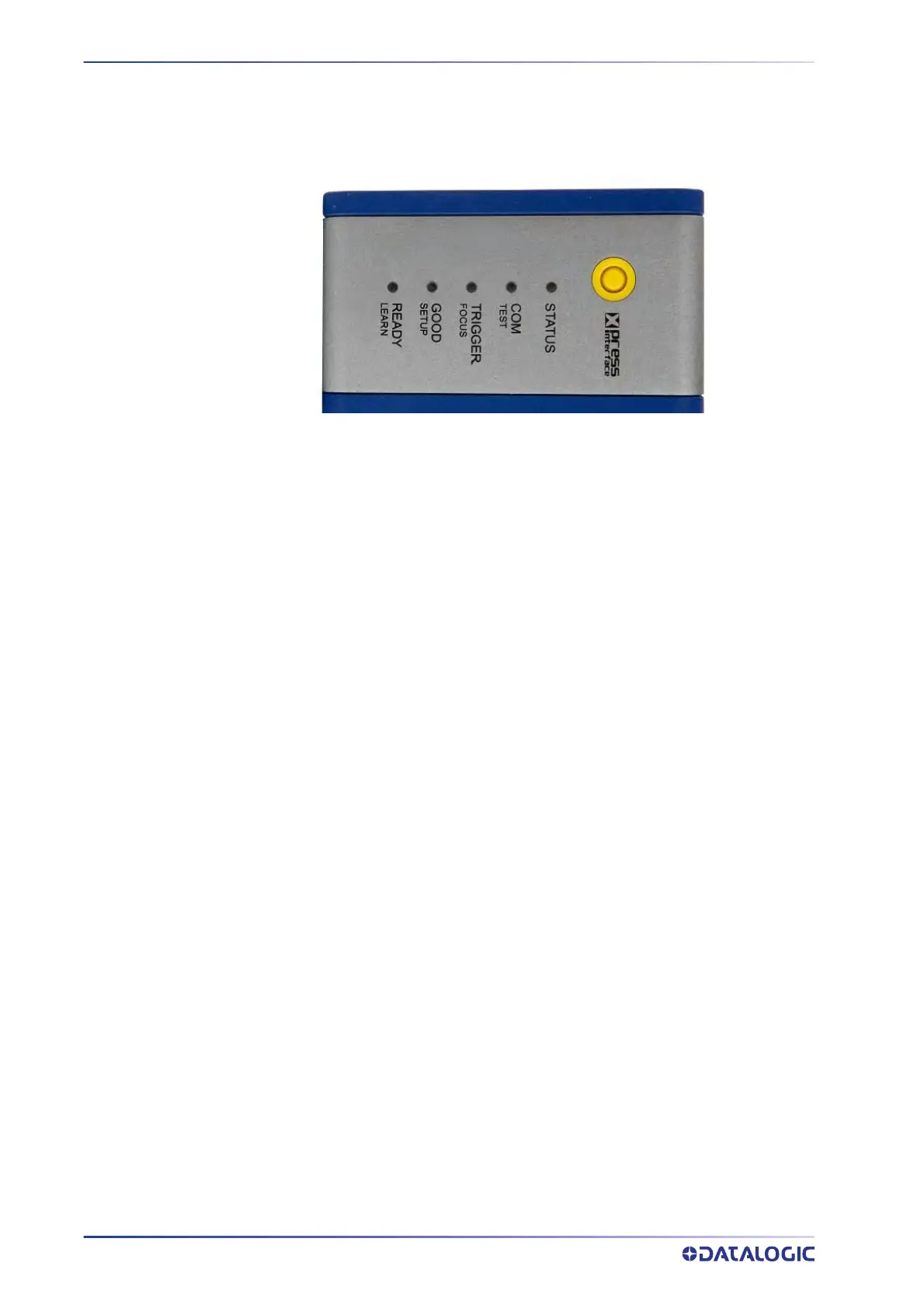

Once entered, the Bar Graph on the five LEDs is activated and if the camera starts read-
ing codes the Bar-Graph shows the Good Read Rate. The Bar Graph has the following
meaning:
³95% ³75% ³60% ³40%
In case of a NO READ, only the Status LED is on and it is blinking. To exit the Test Mode,
press the X-PRESS push button once.
Test Mode will timeout in 4.5 minutes after the last barcode is decoded and revert back
to Operating Mode.
