APPENDIX C
360
AV500/AV900 2D CAMERA

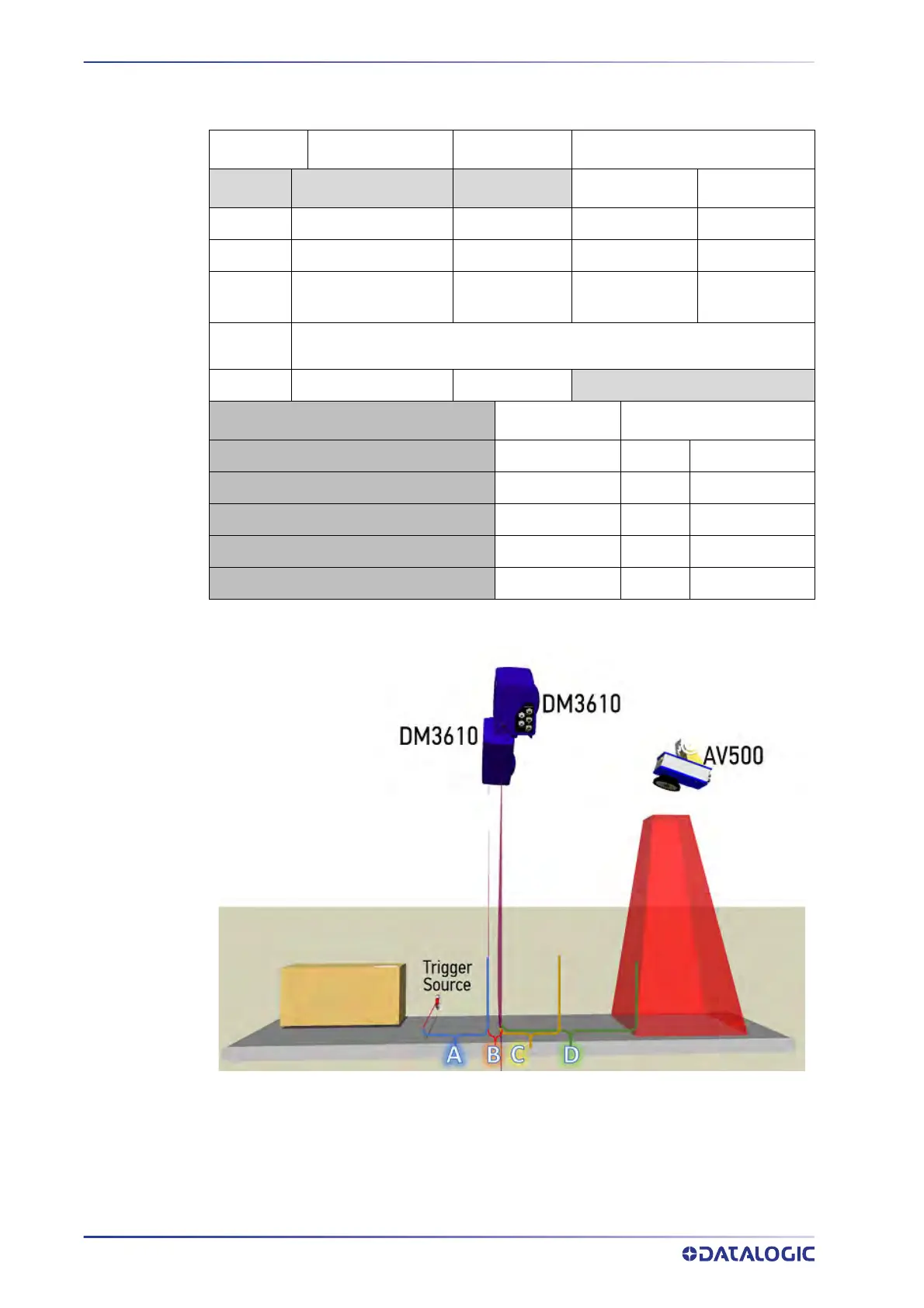

Focusing with a Dual DM3610 System
Identifier Item 1 Item 2 Minimum Distance
[in] [mm]
A Trigger Source DM3610 #1 5 127
B DM3610 Scanline #1 DM3610 #2 1.5 to 10 38 to 254
C DM3610 Scanline #1
Focus Xmit
Point
B + 10 B + 254
C note:
The “C” distance number is inserted into the Focus Transmit Point in the DM3600 and the
Position Sensor Transmit Delay in the AV7000
D DM3610 Scanline #2 AV500
Speed [ft/min] Minimum Distance
[in] [mm]
300 20.4 518
400 22.7 577
500 25.0 635
600 27.3 693
