SYSTEM INFO
System Info provides basic camera system data (whether your system includes one cam-
era or an array). View cameras and bring new devices into a cluster (array of cameras
and devices that work to
gether). Critical information such as software version, MAC
address, and camera position is also provided.
To view System Information:
1. In the menu tree under Modify Settings, click
System Info. The System Info win-
dow opens.
2. The information in this form is auto-filled. The fields ar
e described below.

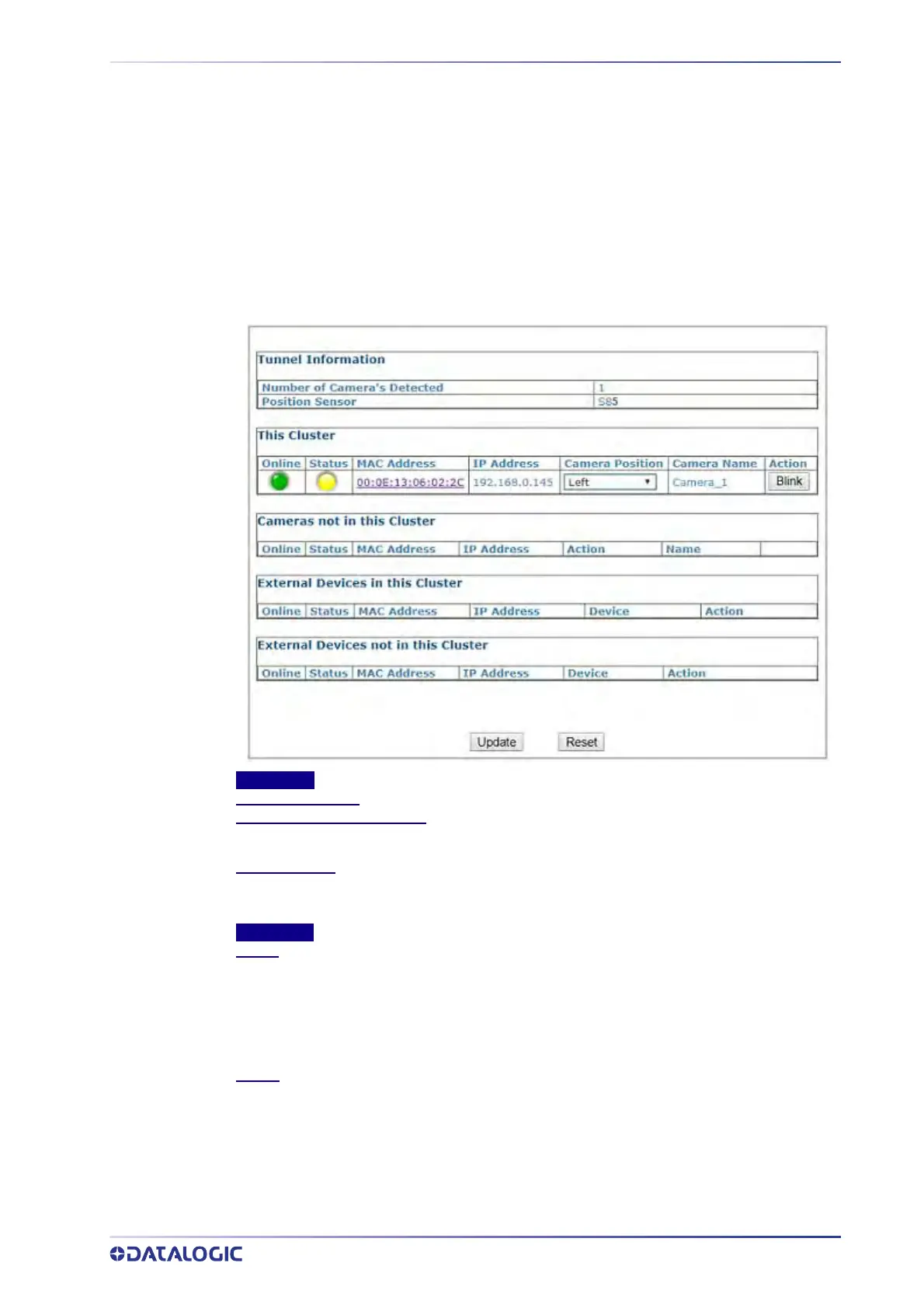

System Info
Tunnel Information
Number of Cameras Detected
Displays the number of cameras found in the system.
Position Sensor
Displays the type of Position sensor and indicates whether it is a Dimensioner, Light Curtain or
S85.
This Cluster
Online
Green = Online (connected and recognized in the cluster)
Gray = Unit not connected (unit not seen by master)
Yellow = Online, but not assigned to the cluster (shown under Cameras not in this Cluster)
Red = Offline
Status
Green = No errors and ready to read
Gray = Unit not connected
Yellow = Warning present, if you click on the MAC address, it will take you to the status viewer
page for more info on the error
Red = Error, if you click on the MAC address, it will take you to the status viewer page for more
info on the error
