148 AV500/AV900 2D CAMERA
Protocol Index Examples
The Protocol Index is used to get a message from third party equipment such as a scale
or sorter. The message can then be attached to the barcode message output from the
system. In the following example, a message from a third party scale needs to be
attached to a barcode relating to a package.
Protocol Index Setup Example:
First, configure the transport connections in Global Sett
ings | Communications | Trans-
ports.

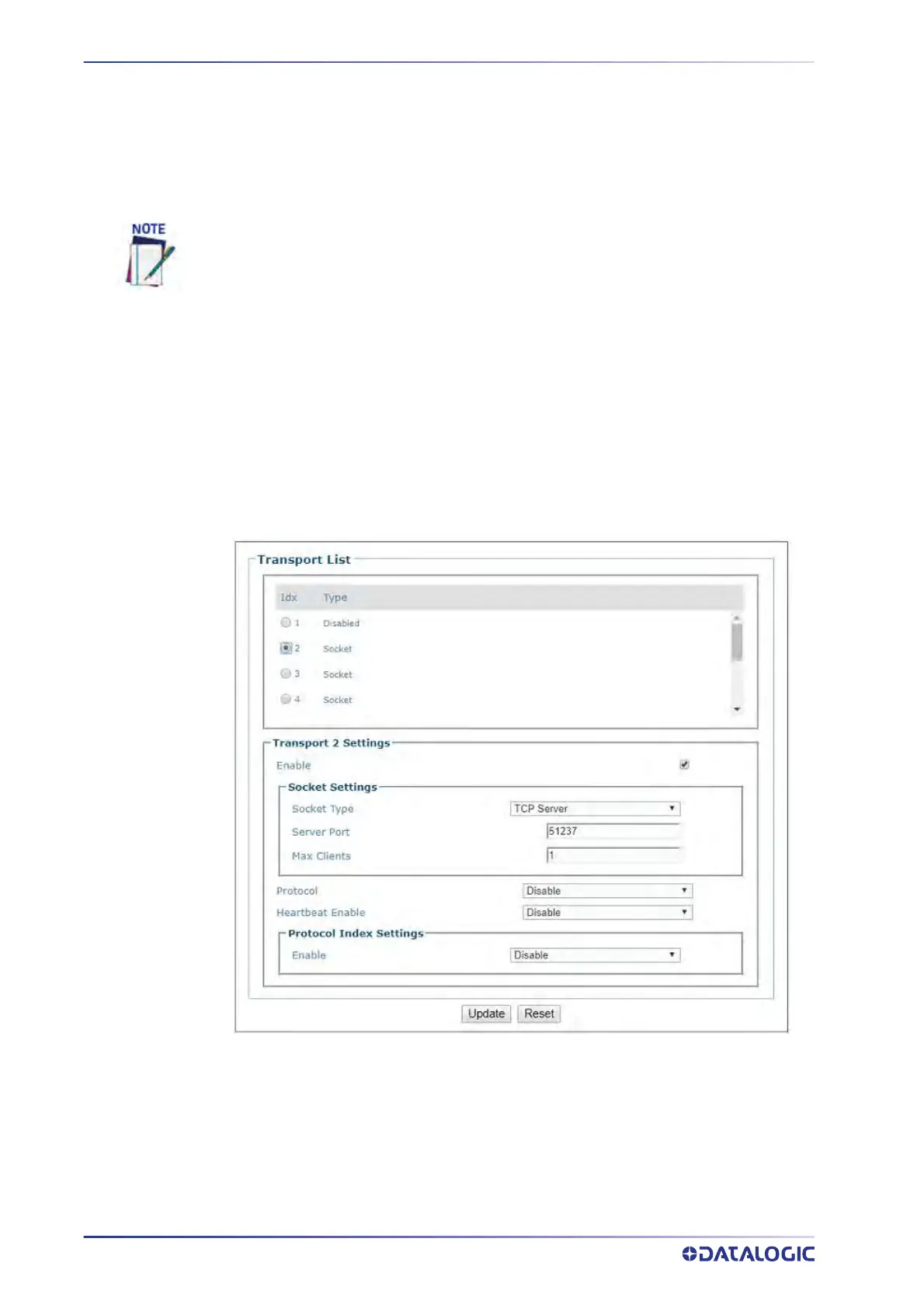

1. Navigate to Global
Sett
ings | Communications | Transports.
2. Select a transport for the incoming data message from the scale. In this example,
transpor
t number 2 is selected.
3. Click the Enable checkbox.
Socket settings parameters appear.
4. Make sure appropriate Socket Type is selected from the Socket Type drop-down
list.
5. Enter the shared Server port # of the unit generating the protocol index informa-
tion and specify Max Clients.
6. Under the P
rotoc
ol Index Settings - Enable section of the screen, select Without
Request Message from the drop-down list. Associated parameters appear.
Use the “Diagnostics | Message Placing Wizard” on page 254 to properly set up your
Protocol Index
messages.
