AV500/AV900 2D CAMERA
Standard Multi-Label

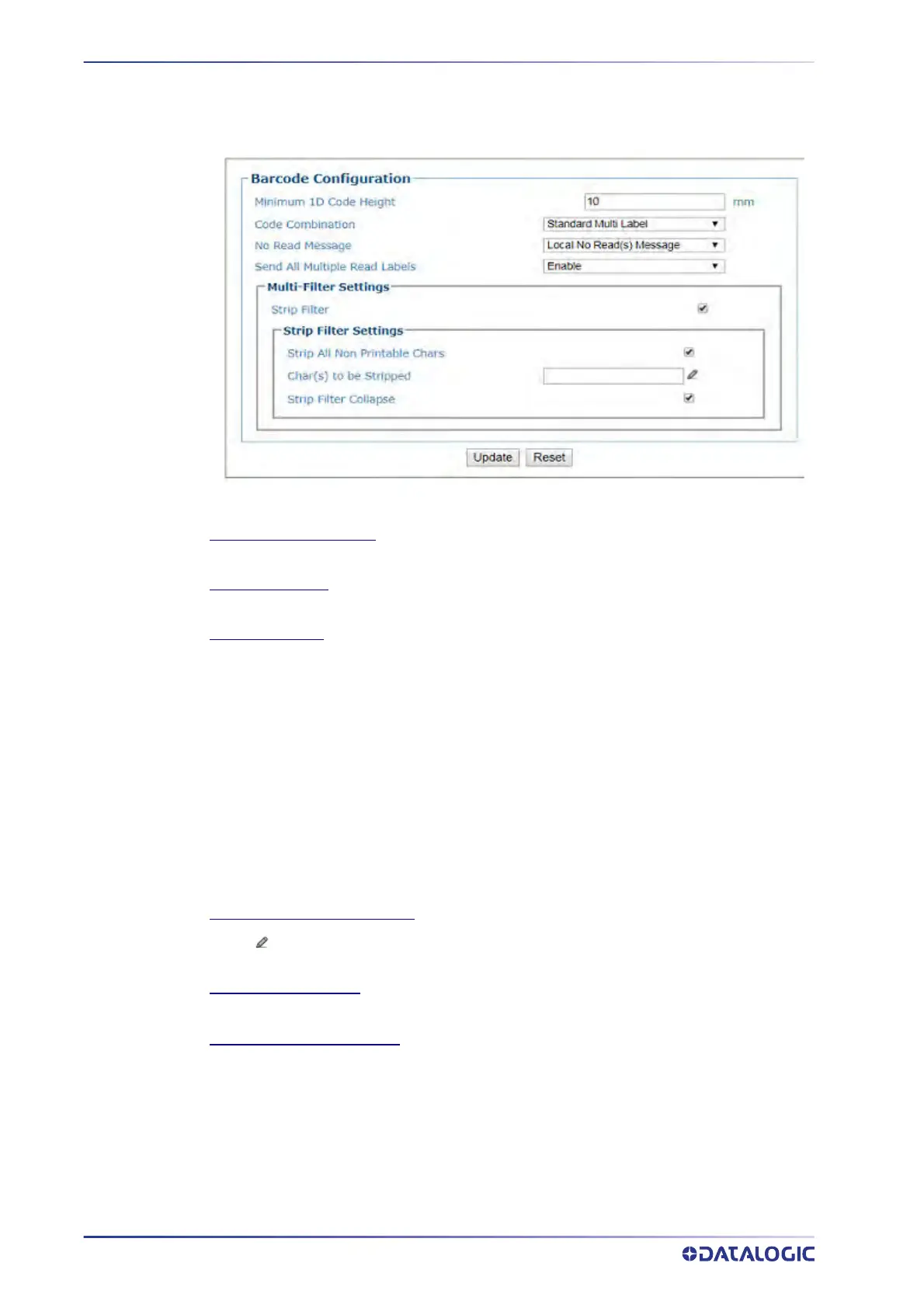

When Standard Multi Label has been selected from the Code Combination drop-down
list, the Barcode Configuration window reveals related input fields.
1. Enter the appropriate information in the form as described below:
Minimum 1D Code Height
Enter the minimum code height in the field provided (mm [in])
Code Combination
Standard Multi Label has been selected.
No Read Message
Select Disable No Read Message, Global No Read Message, or Local No Read(s)
Message from the drop-down list. The No Read condition occurs whenever a code cannot be
read or decoded.
Disable No Read Message: The No Read Message is not transmitted.
Global No Read Message: The No Read String will be sent if the barcode reader is unable to
decode one or more barcodes in the reading phase.
Local No Read(s) Message: This option is useful when one or more codes are not read in the
reading phase or when more codes than the expected number set by the configuration
parameters are read.
If working in
Standard Multi Label mode, this option activates the Code Label Local No
Read String
and the Code Label Local Multiple Read String parameters which allow
setting a
Local No Read String and a Local Multiple string for each defined code
symbology.
No Read String (max. 128 chars)
Click to activate the “The Text Entry Tool” on page 81 and create a string to be displayed
when
Global No Read Message is selected from the No Read Message drop-down list.
Multiple Read Message
Select Enable, Disable from the drop-down list.
Send All Multiple Read Labels
Select Enable, Disable from the drop-down list. Available with Standard Multi Read and
Logical Combination. When set to Disable, if there are two or more codes during the read
cycle, the camera will transmit the first decoded bar code and ignore all other bar codes with
matching parameters. The "first decoded bar code" can be different between trigger cycles.
When enabled the camera will read all bar codes having the same symbology and number of
characters.
