AV500/AV900 2D CAMERA
Verification Wizard

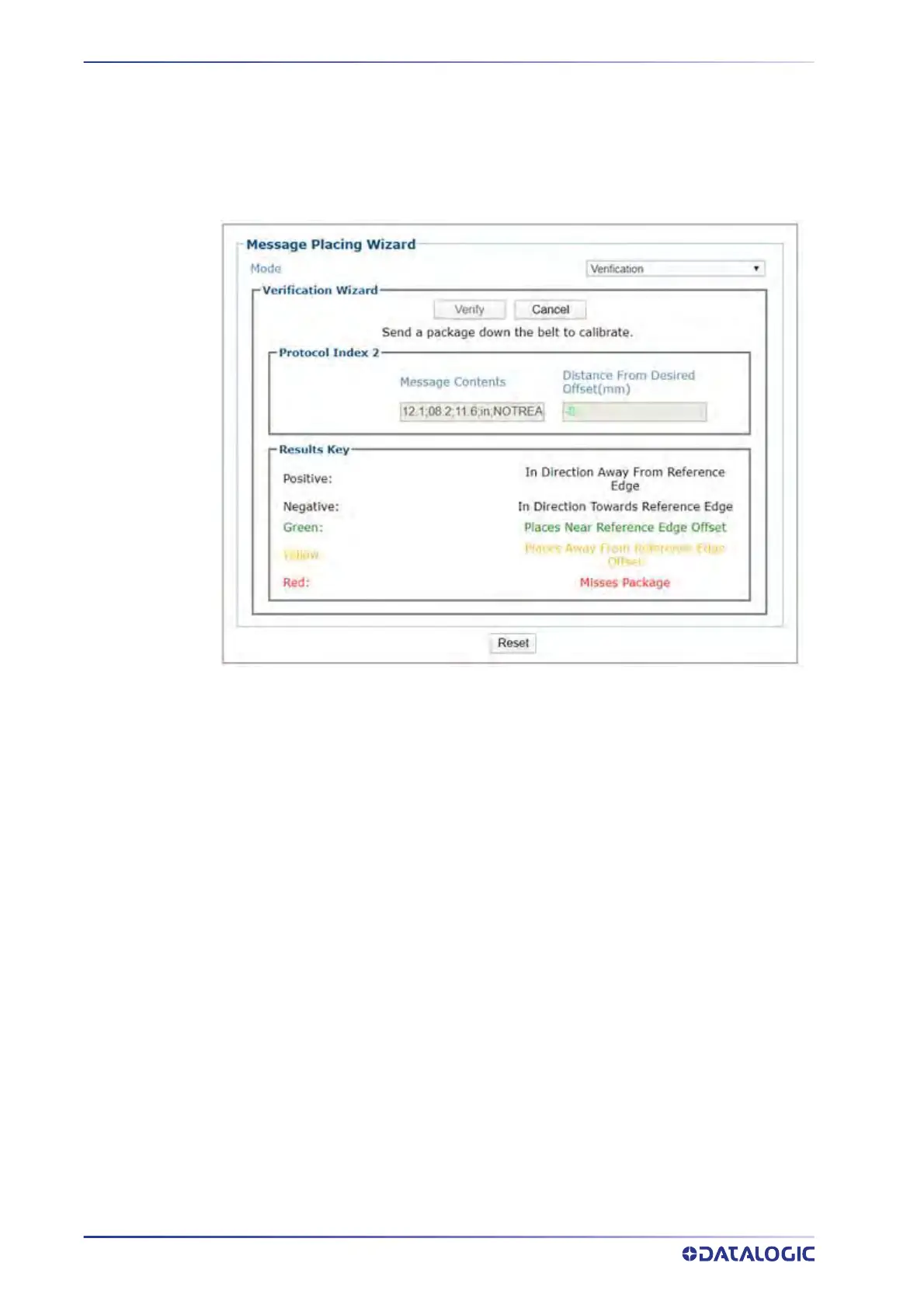

Use the verification page to check the messages placed on a package. No changes are
made via this page.
1. Click the Verif
y button and send a package down the conveyor. The results display.
2. The message contents appear in the Message Contents box. In the verification
page, as well as the calibration page, if a character is not utf-8 then it will be
replaced with a period ‘.’ character.
3. The Distance from Desired Offset ref
ers to the 3-inch buffer from the leading/
trailing edge that we want to place the Protocol Index in. We should not place it
much closer or further from this offset.
4. If the resulting value is re
d, the messag
e missed the box entirely (the message
came in either before start trigger or after end trigger).
5. If the resulting value is green, w
e placed on the package within an acceptable
range of the offset. The acceptable range is set to .75*Offset or from .75-
>5.25inches from the reference edge of the package.
6. If the resulting value is yellow, we placed on the pack
age, but not in the “accept-
able” range.
7. If you click R
eset the
values will be cleared and you will need to begin the Calibra-
tion process over again.
