TRIGGER AND FOCUSING DEVICE WIRING
PRODUCT REFERENCE GUIDE
63

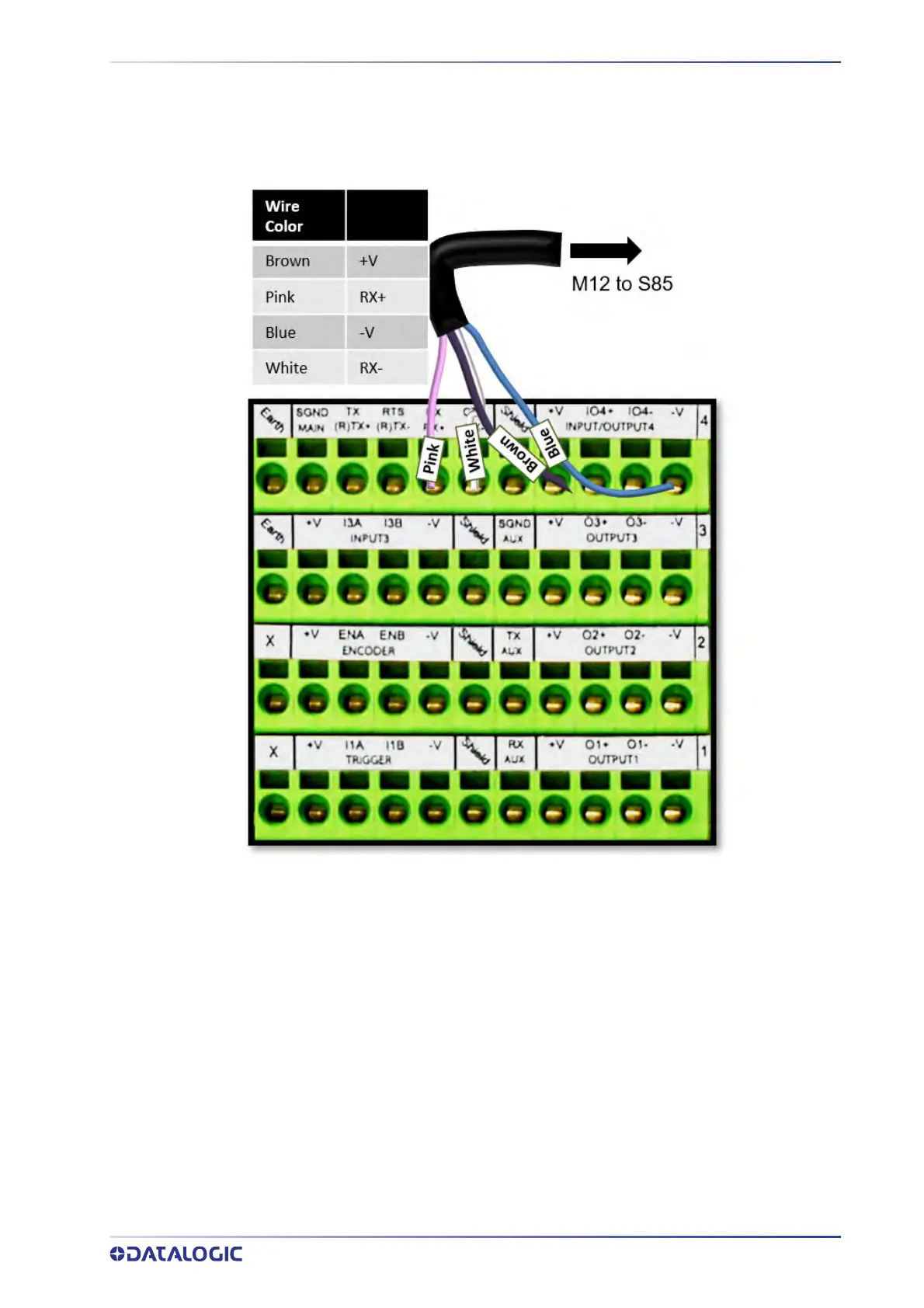

DK503 - S-85 Position Sensor
When using the S-85 for focusing, it must be wired to the CBX510 connected to the
AV500/AV900 using the cable included in the kit (95ACC1620).
