134 AV500/AV900 2D CAMERA

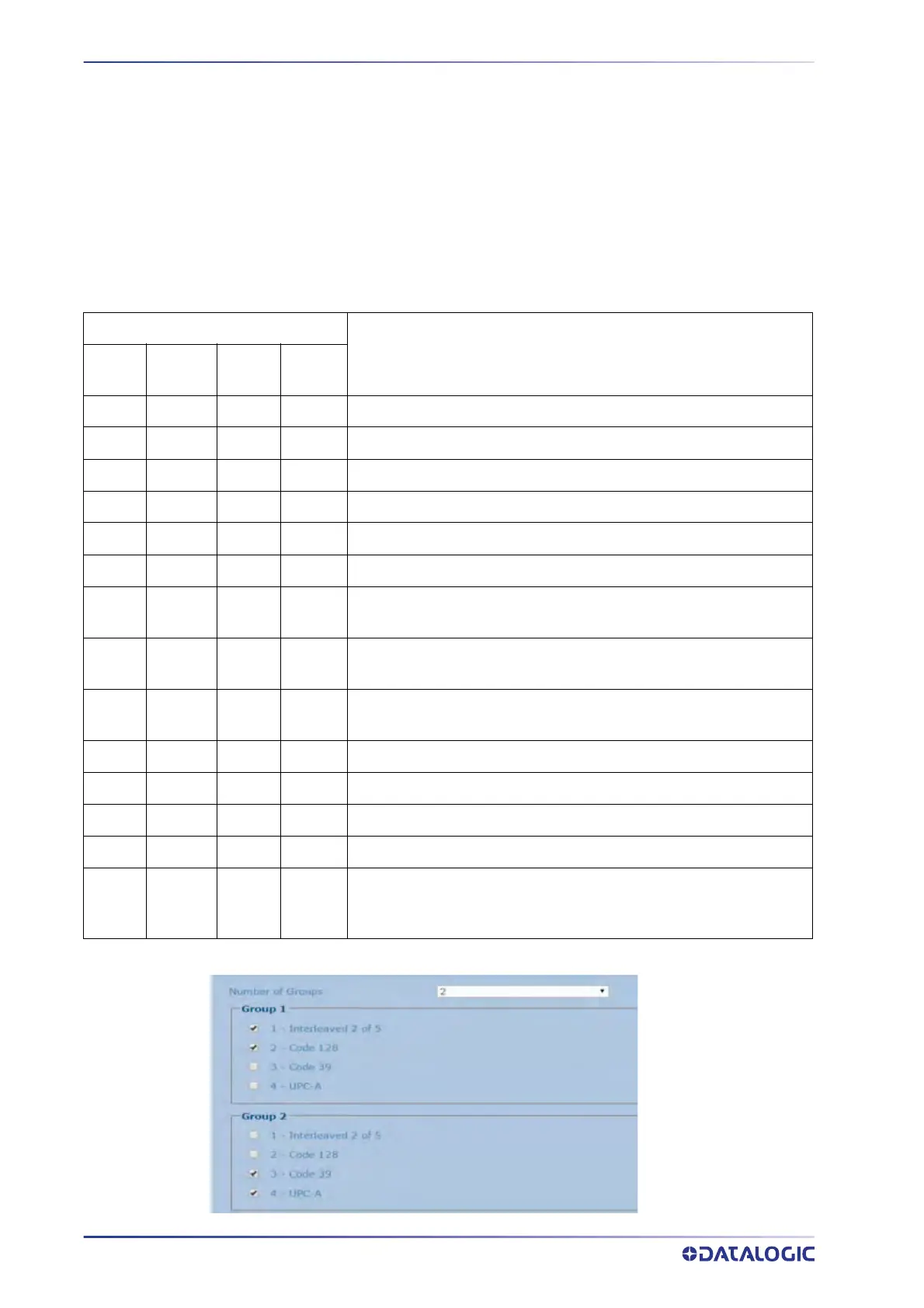

Example 4
Code label setting#1 = Interleaved 2/5
Code label setting#2 = Code 128
Code label setting#3 = Code 39
Code label setting#4 = UPC-A
Logical Combination Rule = 1^2&3^4
Defines 2 groups, each of them expecting one of the defined code types. The first group
ma
y exp
ect an Interleaved 2 of 5 label or a Code 128 label. The second group may
expect a Code 39 label or a UPC-A label.
Decoded Code Symbology
Output Message
Label
#1
Label
#2
Label
#3
Label
#4
--- --- --- --- <Header><Global No Read Message><Terminator>
X --- --- --- <Header><Global No Read Message><Terminator>
--- X --- --- <Header><Global No Read Message><Terminator>
--- --- X --- <Header><Global No Read Message><Terminator>
--- --- --- X <Header><Global No Read Message><Terminator>
X X --- --- <Header><Global No Read Message><Terminator>
X --- X X
<Header><Code93><DPS>< First decoded code/Multiple Read Mes-
sage string><Terminator>
X X X ---
<Header><First decoded code/Multiple Read Message
string><DPS><EAN 8 data><Terminator>
--- X X X
<Header>< Interleaved 2/5 data><DPS>< First decoded code/Multi-
ple Read Message string ><Terminator>
X --- X --- <Header><Code 93 data><DPS><EAN 8 data><Terminator>
X --- --- X <Header><Code 93 data><DPS><UPC-A data><Terminator>
--- X X --- <Header><Interleaved 2/5 data><DPS><EAN 8 data><Terminator>
--- X --- X <Header><Interleaved 2/5 data><DPS><UPC-A data><Terminator>
X X X X
<Header><First decoded code/Multiple Read Message
string><DPS>< First decoded code/Multiple Read Message s
tring
><Terminator>
