TRIGGER, POSITIONING AND FOCUSING DEVICE SETUP
280 AV500/AV900 2D CAMERA
tion
The goal of this focusing process is to correlate the DM3610 zero reference points to the
far working distances of the cameras.
The DM3610 Left and Right Offsets will focus the DM3610 at the Far Wo
rking Distances
(Left and Right) of the side AV500/AV900 cameras. These values are not necessarily the
same. AV500/AV900 Reference the system application drawings for the exact prescribed
Far Working Distances of each camera.
1. Navigate to Diagnos
tic

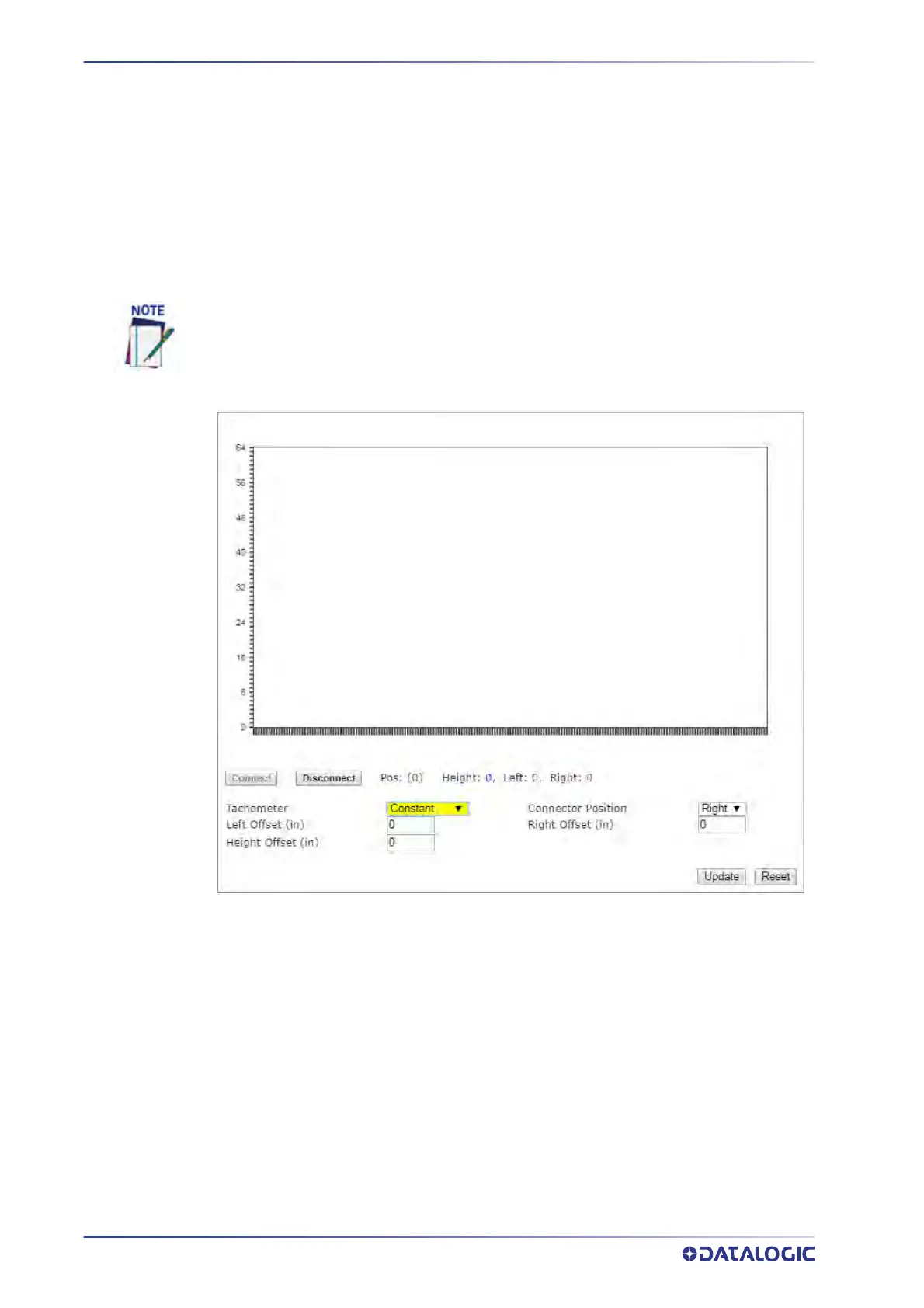

s | Focus Setup. The Focus Setup window opens,
2. From the Tachometer drop-down list, select Constant.
3. Verify that the values displayed for Left Offse
t, Right Offset, and Height Offset are
all set to 0.
4. Referencing the direction of conveyor travel, view the Dimensioner from an
upstr
eam position. Determine if the connectors located on the side of the unit
face left or right, see the image below.
If you navigate away from the Focus Setup page, the Constant Tach setting will auto-
matically reset to Hardware Tach. AV500/AV900 Reset it, to continue the focus setup
process.
