Replacing fuse
- 218 -
Emergencies
3
F37
-
Reserved
-
F38
30A
Wiper main relay power
supply
MINI
F39
15A
TCU cooling relay power
supply
MINI
F40
-
Reserved
-
F41
5A
IGN2 feedback input
MINI
SB1
-
IG1 power supply
JCASE
SB2
40A
ESC B+
JCASE
SB3
30A
Power trunk lid
JCASE
SB4
40A
TCU B+
JCASE
SB5
40A
ESC B+
JCASE
SB6
40A
IGN2 relay power supply
JCASE
SB7
30A
Rear defroster relay
power supply
JCASE
SB8
40A
P gear motor
JCASE
SB9
30A
Vacuum pump actuator
power supply
-
SB10
30A
Anti-pinch motor control
unit
JCASE
SB11
30A
Anti-pinch motor control
unit
-
SB12
-
A/C power supply
JCASE

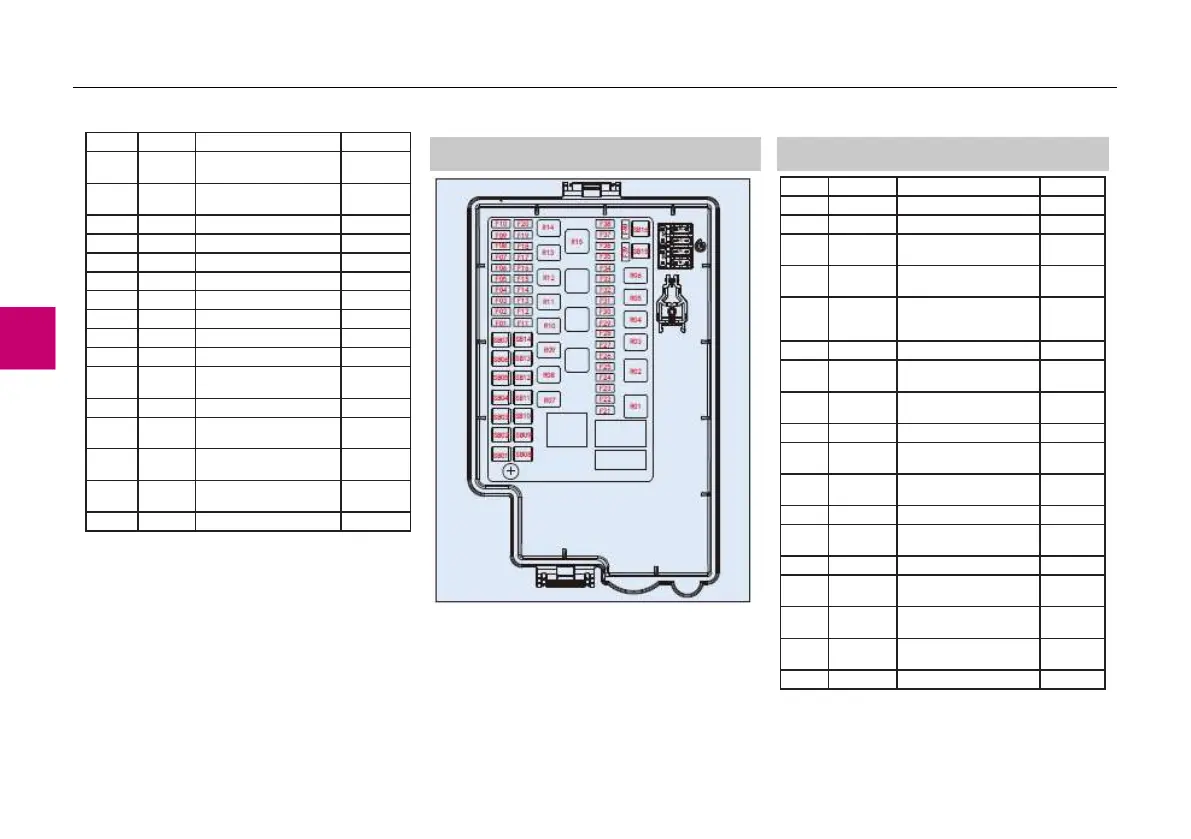

Engine compartment fuse box (for
conventional fuel-powered vehicles)
Engine compartment fuse box is beside the
battery. Open the box cover, and then you can
see the fuse.
There are relevant instructions on the fuse box
cover.
Fuse instructions (for conventional fuel-
powered vehicles)
No.
Capacity
Fuse function
Type
F1
-
Reserved
-
F2
5A
TCU power supply
MINI
F3
10A
A/C control panel power
supply
MINI
F4
15A
TCU cooling relay
power supply
MINI
F5
30A
Four-way adjustable
front passenger’s power
seat
MINI
F6
10A
EPS B+ power supply
MINI
F7
20A
Fuel pump relay power
supply
MINI
F8
30A
Starter relay power
supply
MINI
F9
-
Reserved
-
F10
30A
Driver’s power seat
harness
MINI
F11
5A
Front through-type lamp
power supply
MINI
F12
-
Reserved
-
F13
30A
Exterior lamp power
supply 3
MINI
F14
-
Reserved
-
F15
15A
Exterior lamp power
supply 2
MINI
F16
5A
R main relay control
terminal power supply
MINI
F17
30A
Wiper main relay power
supply
MINI
F18
-
Reserved
-
