DongFeng Huge - Body Fuse Box

Replacing fuse
- 219 -
Emergencies
3
F19
-
Reserved
-
F20
20A
High beam relay power
supply
MINI
F21
5A
Starter relay coil power
supply, compressor relay
coil power supply,
canister solenoid valve,
cooling fan, fuel pump
relay coil power supply
MINI
F22
30A
EMS main power supply
MINI
F23
20A
Engine harness
MINI
F24
15A
Engine harness
MINI
F25
5A
IGN2 feedback input
MINI
F26
5A
Starting status feedback
MINI
F27
5A
EPS, ESC IG1
MINI
F28
5A
ACC radar
MINI
F29
5A
EMS、TCU IG1
MINI
F30
-
Reserved
-
F31
-
Reserved
-
F32
15A
Horn relay power supply
MINI
F33
10A
Rear wiper power supply
MINI
F34
-
Reserved
-
F35
25A
Left front door window
regulator power supply
MINI
F36
25A
Right front door window
regulator power supply
MINI
F37
25A
Left rear door window
regulator power supply
MINI
F38
25A
Right rear door window
regulator power supply
MINI
F39
10A
Left low beam
MINI
F40
10A
Right low beam
MINI
SB1
40A
ESC B+
JCASE
SB2
40A
Window lifting motor*
JCASE
30A
Anti-pinch motor control
unit*
JCASE
SB3
-
-
-
SB4
30A
Power trunk lid*
JCASE
SB5
40A
IGN2 relay power supply
JCASE
SB6
-
-
-
SB7
40A
Window lifting motor*
JCASE
30A
Anti-pinch motor control
unit*
JCASE
SB8
40A
ESC B+
JCASE
SB9
40A
Main relay power supply
JCASE
SB10
-
-
-
SB11
-
-
-
SB12
30A
Rear defroster R9 relay
power supply
JCASE
SB13
30A
B+ shunt
JCASE
SB14
40A
TCU B+
JCASE
SB15
-
-
-
SB16
-
-
-

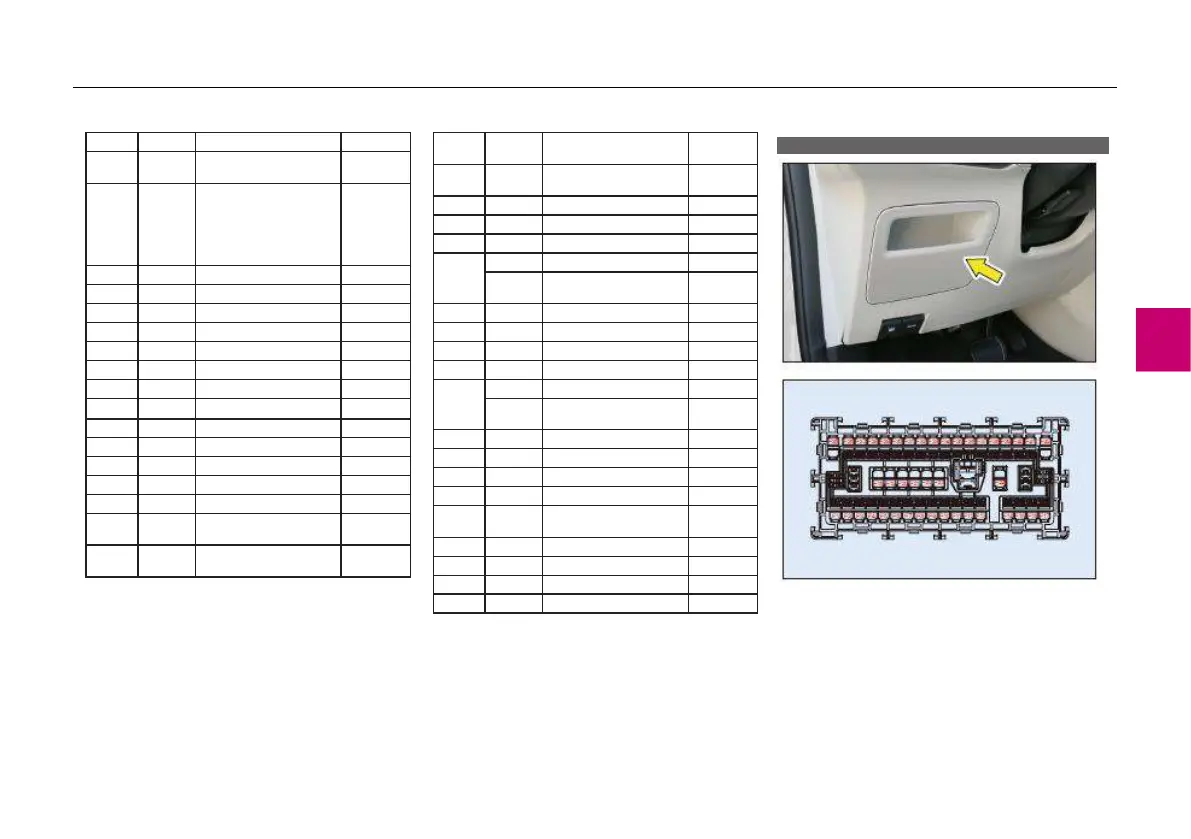

Body fuse box
Remove the cover plate at the lower left part of
the instrument panel to expose the passenger
compartment fuse box.
