Emergencies
3

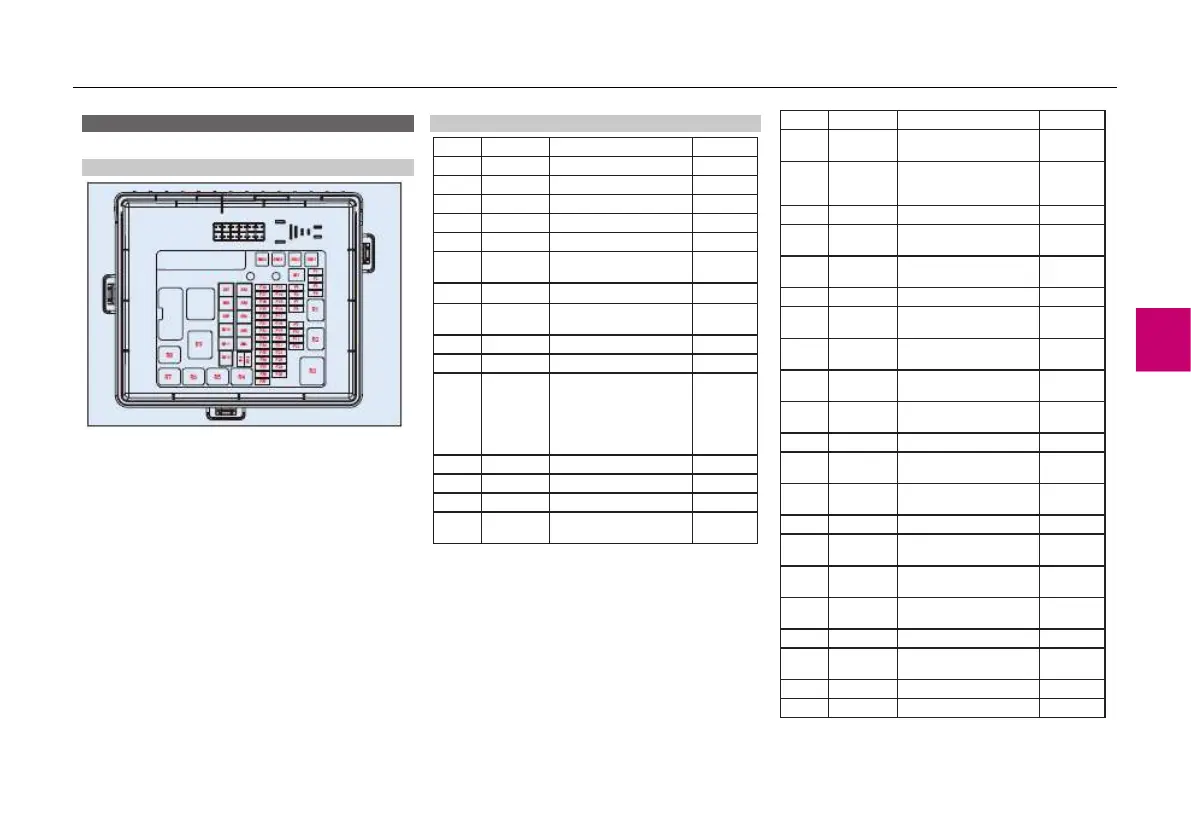

Engine compartment fuse box*
Engine compartment fuse box (for HEVs)
Engine compartment fuse box is beside the
battery. Open the box cover, and then you can
see the fuse.
There are relevant instructions on the fuse box
cover.
Fuse instructions (for HEVs)
No.
Capacity
Fuse function
Type
F1
10A
Left front low beam
MINI
F2
10A
Right front low beam
MINI
F3
-
Reserved
-
F4
-
Reserved
-
F5
5A
EPS/ESC IG1
MINI
F6
5A
MCU*, ACC radar*,
AVAS *IG1
MINI
F7
5A
EMS、TCU IG1
MINI
F8
5A
Vacuum pump relay R7
coil power supply
MINI
F9
20A
Engine harness
MINI
F10
15A
Engine harness
MINI
F11
5A
Starter relay coil power
supply, compressor
relay coil power supply,
canister solenoid valve,
cooling fan, fuel pump
relay coil power supply
MINI
F12
30A
EMS main power supply
MINI
F13
-
Reserved
-
F14
5A
TCU power supply
MINI
F15
25A
Right front door window
regulator
MINI
No.
Capacity
Fuse function
Type
F16
25A
Left front door window
regulator
MINI
F17
30A
Four-way adjustable
front passenger’s power
seat
MINI
F18
10A
EPS B+ power supply
MINI
F19
20A
Fuel pump relay power
supply
MINI
F20
30A
Exterior lamp power
supply 3
MINI
F21
5A
Horn relay
MINI
F22
5A
Main relay control
terminal power supply
MINI
F23
30A
Driver’s power seat
harness
MINI
F24
5A
Front through-type lamp
power supply
MINI
F25
25A
Right rear door window
regulator
MINI
F26
20A
Door lock power supply
MINI
F27
25A
Left rear door window
regulator
MINI
F28
20A
Exterior lamp power
supply 2
MINI
F29
-
Reserved
-
F30
10A
Rear wiper power
supply
MINI
F31
30A
Starter relay power
supply
MINI
F32
15A
High beam relay power
supply
MINI
F33
15A
Horn relay power supply
MINI
F34
20A
Low beam relay power
supply
MINI
F35
10A
MCU (B+ power)
MINI
F36
-
-
* indicates a
configuration variance
Reserv
ed
