2 Technical Data
Power Connection
Connection via internal screw terminals near
cable glands, (fig. 2-6).
Cross section: max. 10 AWG (4 mm
2
), using conductor
sleeves is not required
Cable entry via 1 cable gland, classified IP 68
Permissible outer cable diameter for power cable: 0.28 to 0.5 inch (7 - 12 mm)
Power fuses
The power terminals integrate fuse holders.
Fuse ratings: AC 230 V, 3.15 A, 5x20 mm

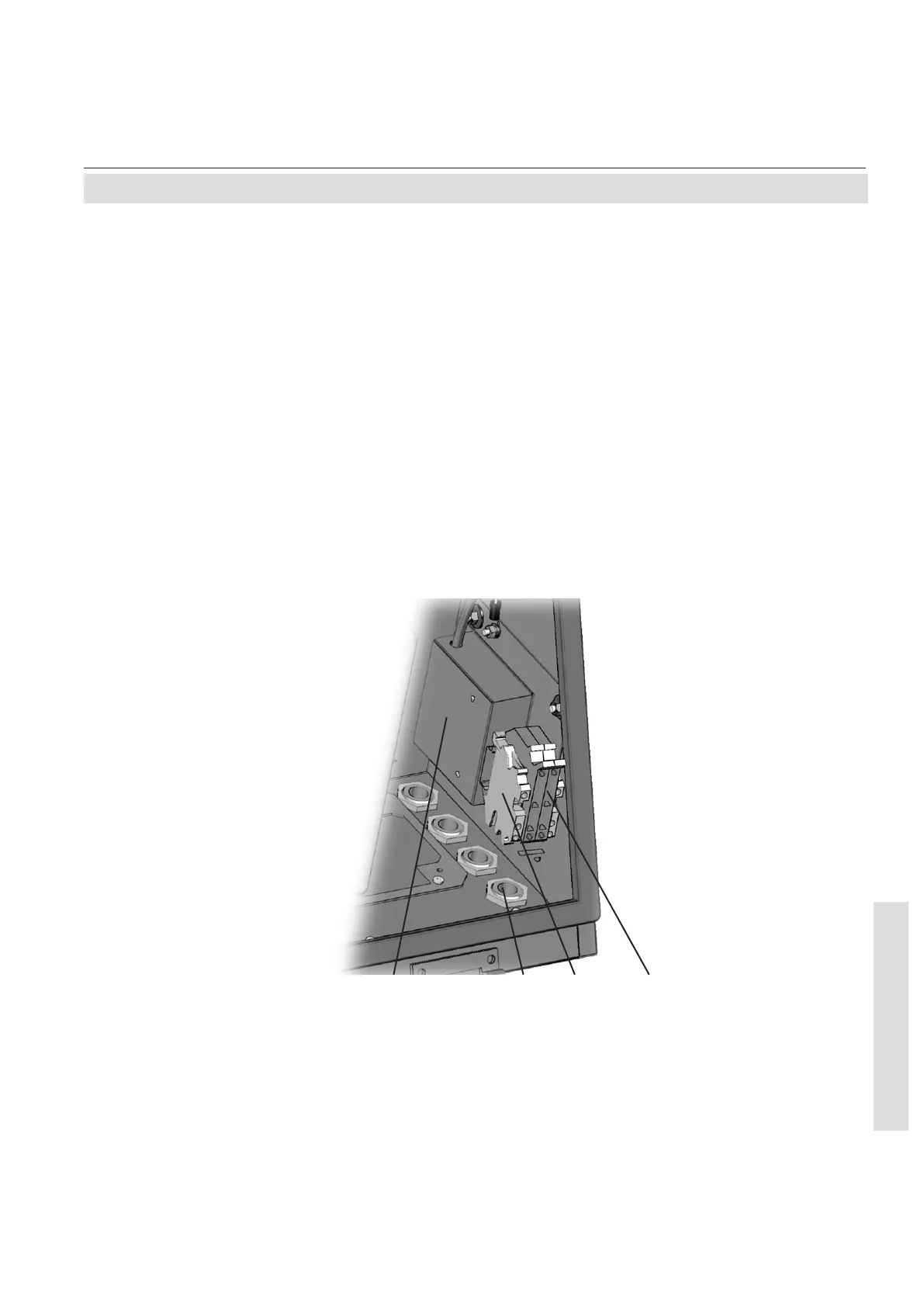

Fig. 2-5: X-STREAM F - power terminals / fuse holders
1 Power terminals with integrated
fuse holders
2 Protective earth terminal (PE)
3 Power cable gland
4 EMI power filter
3 24 1
2-2-2 X-STREAM F
