X-STREAM
4-6
Instruction Manual
HASAxE-IM-HS
07/2006
Emerson Process Management GmbH & Co. OHG
The analyzer variations X-STREAM GP and
GPS are intended for horizontal orientation
during operation.
X-STREAM GP / GPS with mounting frames
beside the front panel may be mounted into a
rack (rack mount version). Use four screws to
fix the analyzer in the rack (fig. 4-2).
4-4-1 X-STREAM GP, X-STREAM GPS
Depending on which variation was ordered
either screw terminals or plugs and sockets are
provided for electrical connections, accessible
at the rear panel (fig. 4-3 and 4-10).
4-4-1 Installation - X-STREAM GP, X-STREAM GPS
The analyzers do not provide a
power switch and are operable
when connected to power.
4-4 Detailled Installation Instructions

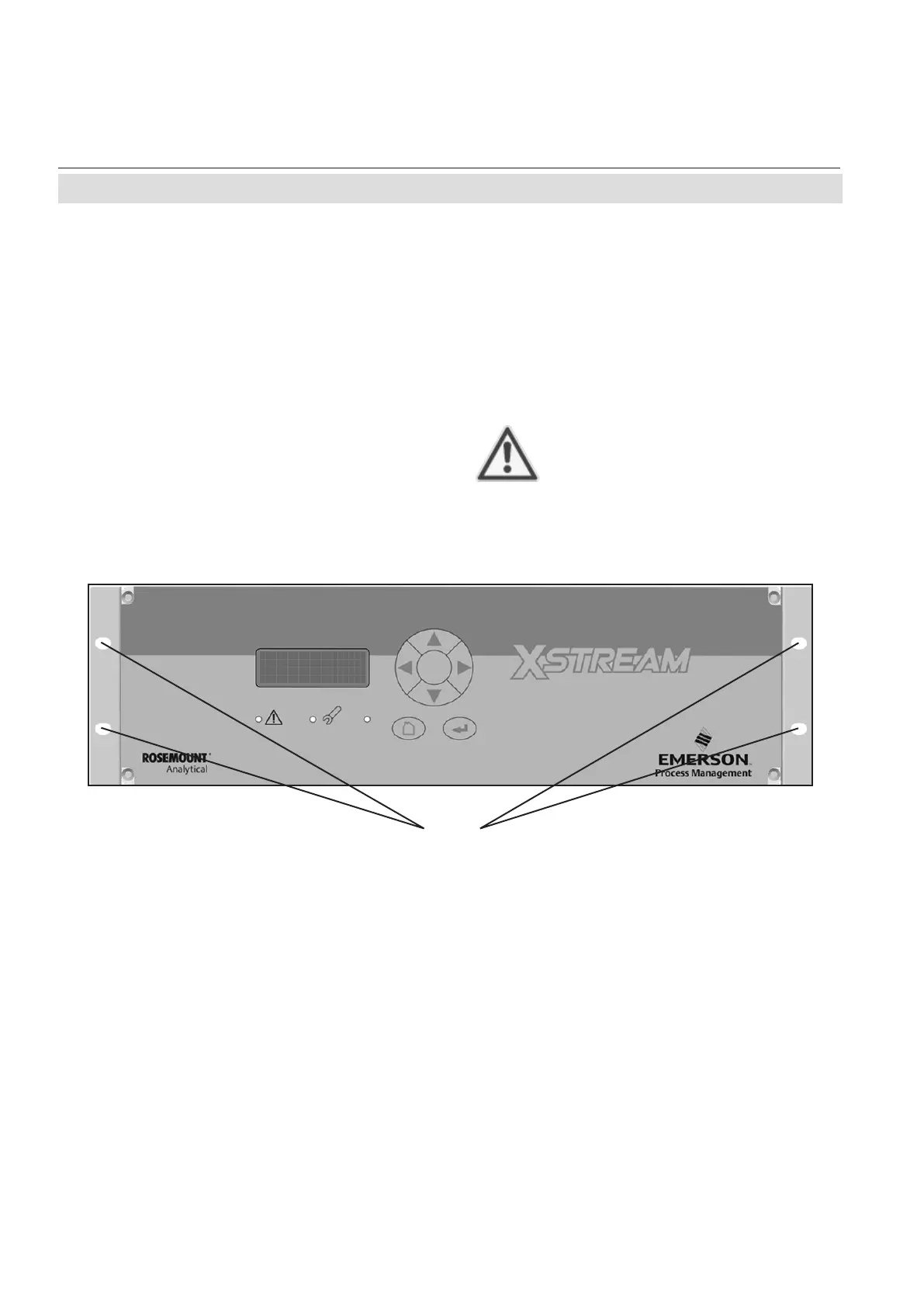

Fig. 4-2:Frontal view
Fixing holes for rack mounting (rack mount version only)
(0.3 x 0.4 inches / 7.5 x 10.5 mm)
