X-STREAM
2-12
Instruction Manual
HASAxE-IM-HS
05/2006
Emerson Process Management GmbH & Co. OHG
2-2-2 X-STREAM F
Signal inputs / outputs
All signal lines need to be connected to internal
screw terminals (fig. 2-7)
Cross section: max. 12 AWG (2.5 mm
2
), using conductor
sleeves is not required
Cable entry via 3 cable glands, classified IP 68
Permissible outer cable diameter for power cable: 0.28 to 0.5 inch (7 - 12 mm)
Available signals: standard: Analog signal outputs
Relay status signals
Modbus interface (RS485; RS 232)
optional: Digital inputs/outputs
Detailed pin assignment
4-4 Installation, page 4-6.

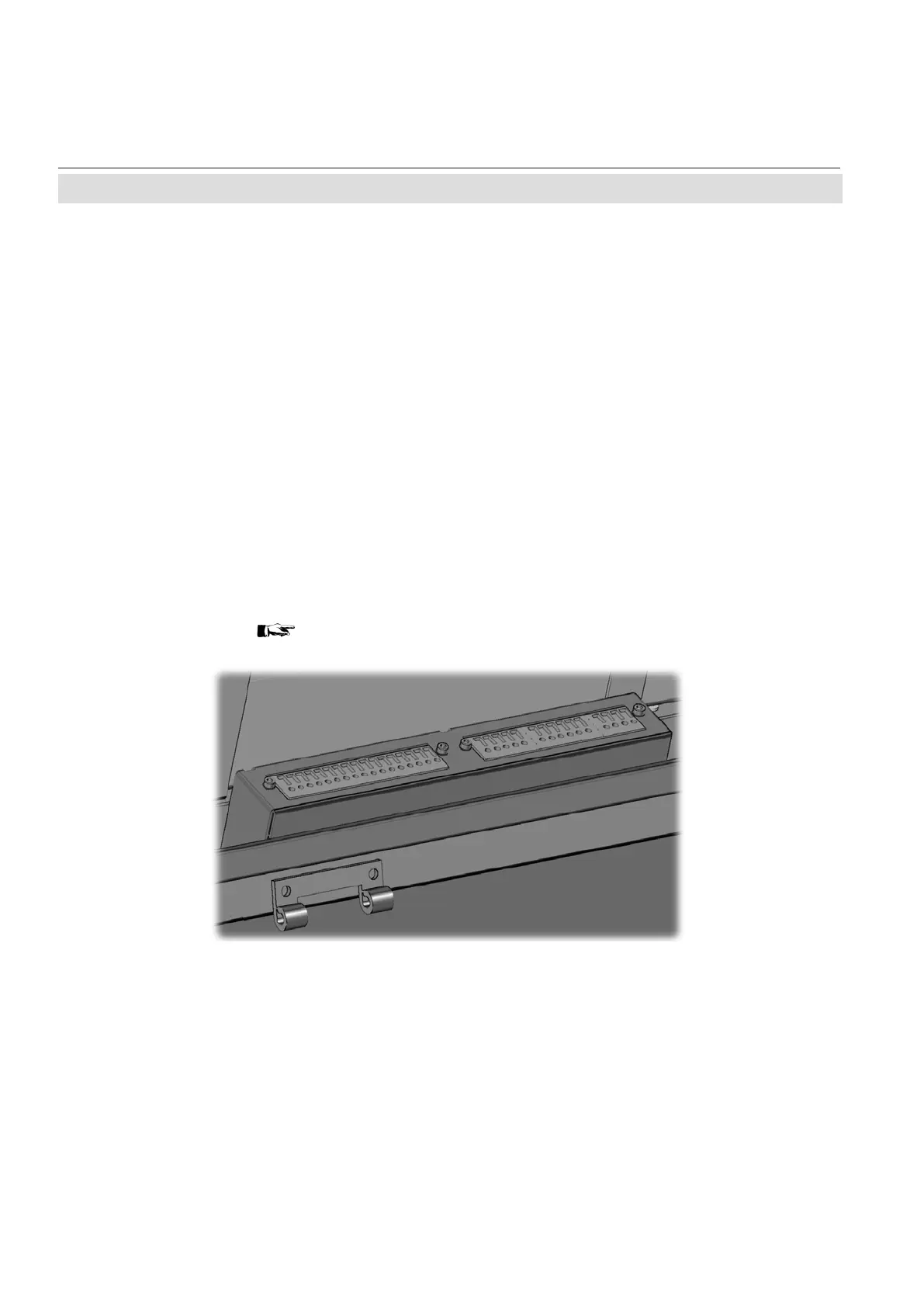

Fig. 2-6: X-STREAM F - signals terminals
