X-STREAM
3-7
Instruction Manual
HASAxE-IM-HS
05/2006
Emerson Process Management GmbH & Co. OHG
3 Principles

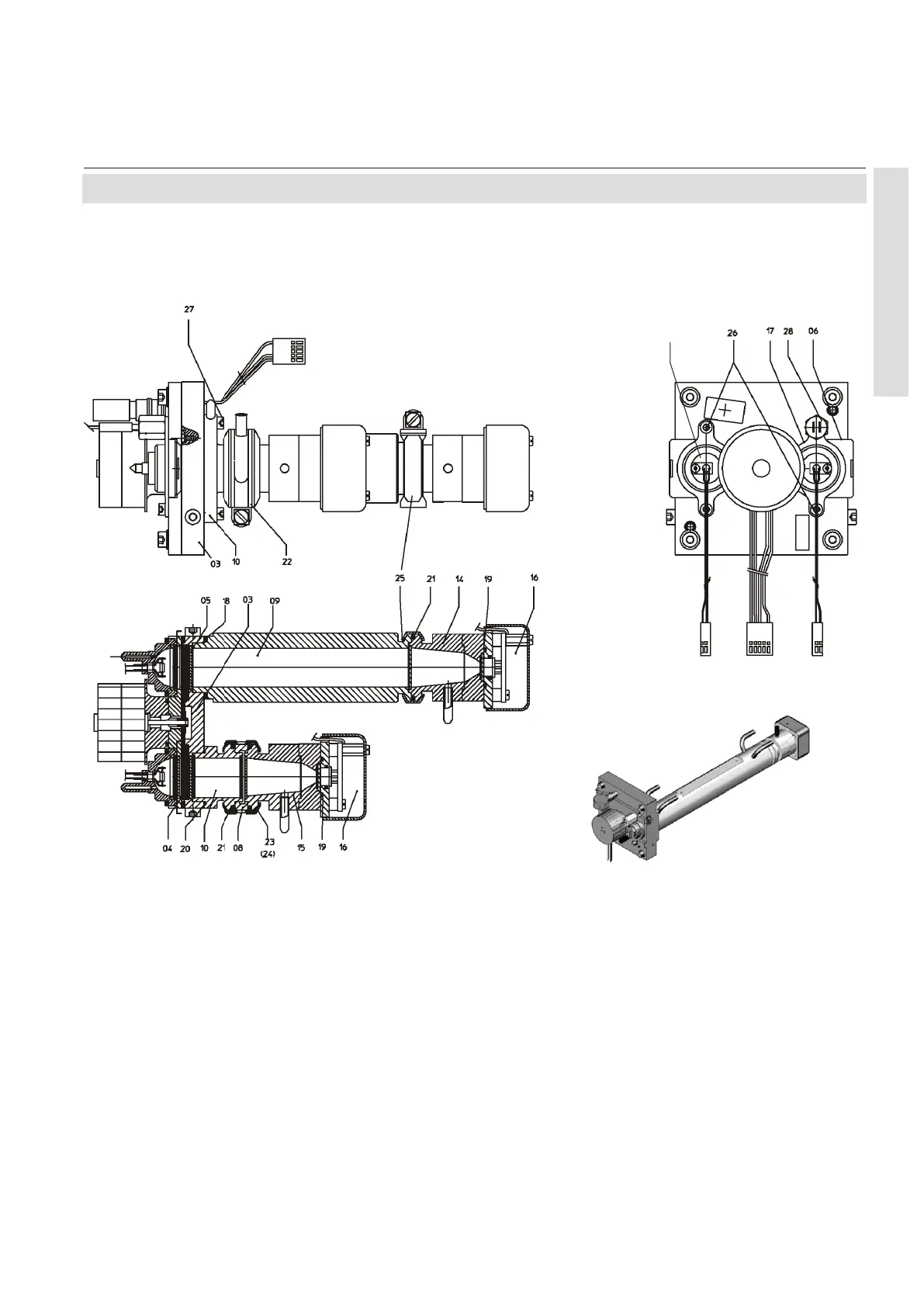

Fig. 3-4: Photometer Assembly with Pyroelectrical Detector
03 Chopper
04 / 05 Filter aperture
06 Zero aperture (not with sealed variation)
07 Source
08 Analysis cell 1 - 7 mm (distance ring)
09 Analysis cell 50 - 200 mm
10 Adaptor cell
14/15 Filter cell
16 Detector
17 Flange (source)
18-21 O-ring
22 Clamp (for cells 1-7 mm)
23 (24) Clamp (for cells 1-7 mm)
25 Clamp (for cells10-200 mm)
26 Fixing screws (source)
27 Fixing screws (cells and adaptor cells)
28 Temperature sensor
3-1 Infrared (IR) and Ultraviolet (UV) Measurement
07
