X-STREAM
4-10
Instruction Manual
HASAxE-IM-HS
07/2006
Emerson Process Management GmbH & Co. OHG
4-4-1 Installation - X-STREAM GP, X-STREAM GPS
Relay status Signals
Design: dry relay contacts
Electrical specification: max. 30 V , 1 A, 30 W
Note!
Take care of the special installation instructions
in section 4-5!

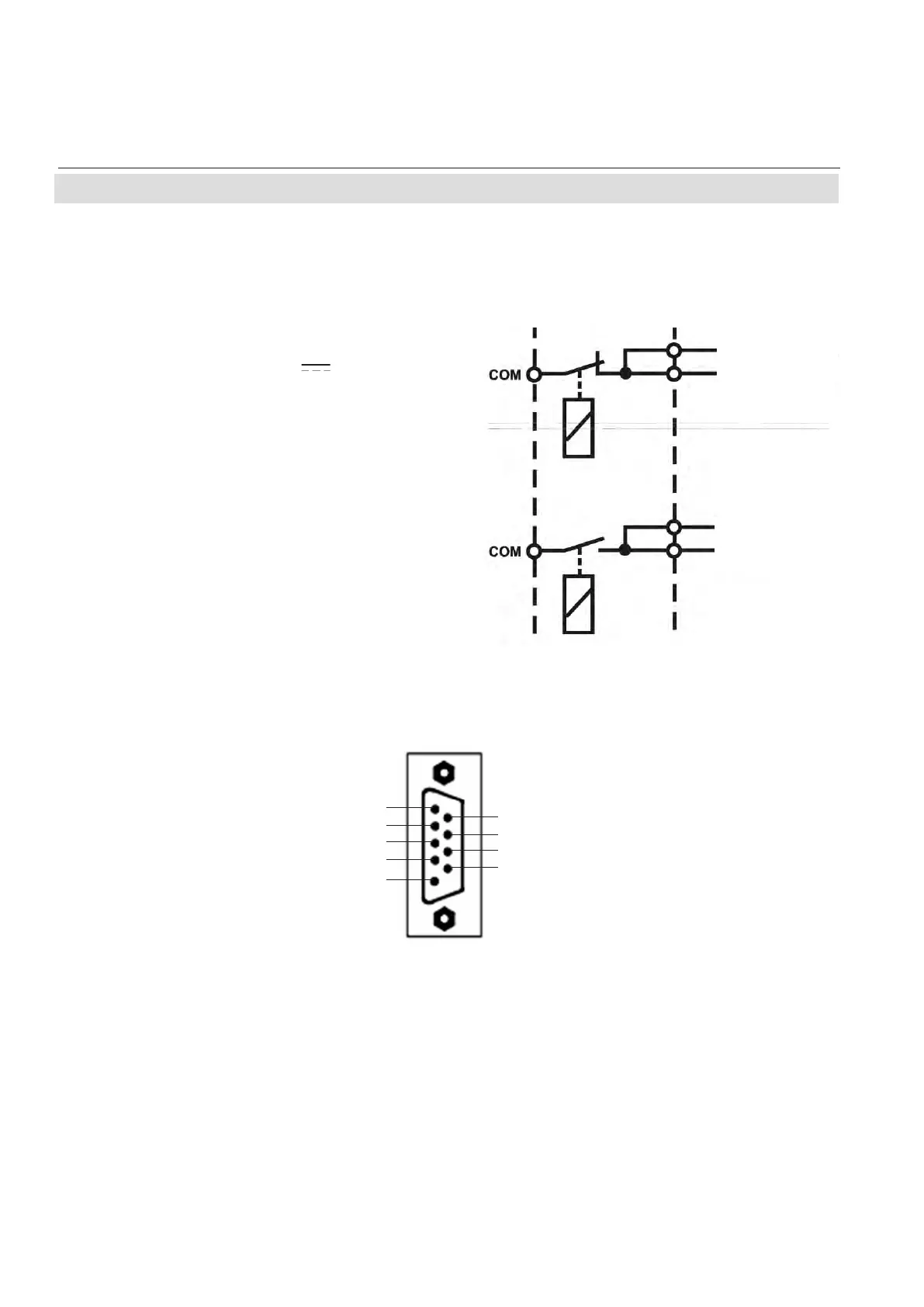

Fig. 4-7: Plug X3 - pin assignment
Fig. 4-6: Relay status signals, block diagram
Signal output (NC);
configuration on
request
Signal output (NO);
factory standard
configuration
9 / Function check
8 / Function check COMMON
7 / Maintenance, off-spec COMMON
6 / Failure COMMON
5 / Function check
4 / Maintenance, off-spec
3 / Maintenance, off-spec
2 / Failure
1 / Failure
Legend: Pin # / Function
