Emerson Rosemount Xstream Series - X-STREAM F Field Housing; Fig. 2-4: X-STREAM F - Dimensions (Approx. MM [Inch])

X-STREAM
2-10
Instruction Manual
HASAxE-IM-HS
05/2006
Emerson Process Management GmbH & Co. OHG
2-2-2 X-STREAM F
2-2-2 X-STREAM
F Field Housing

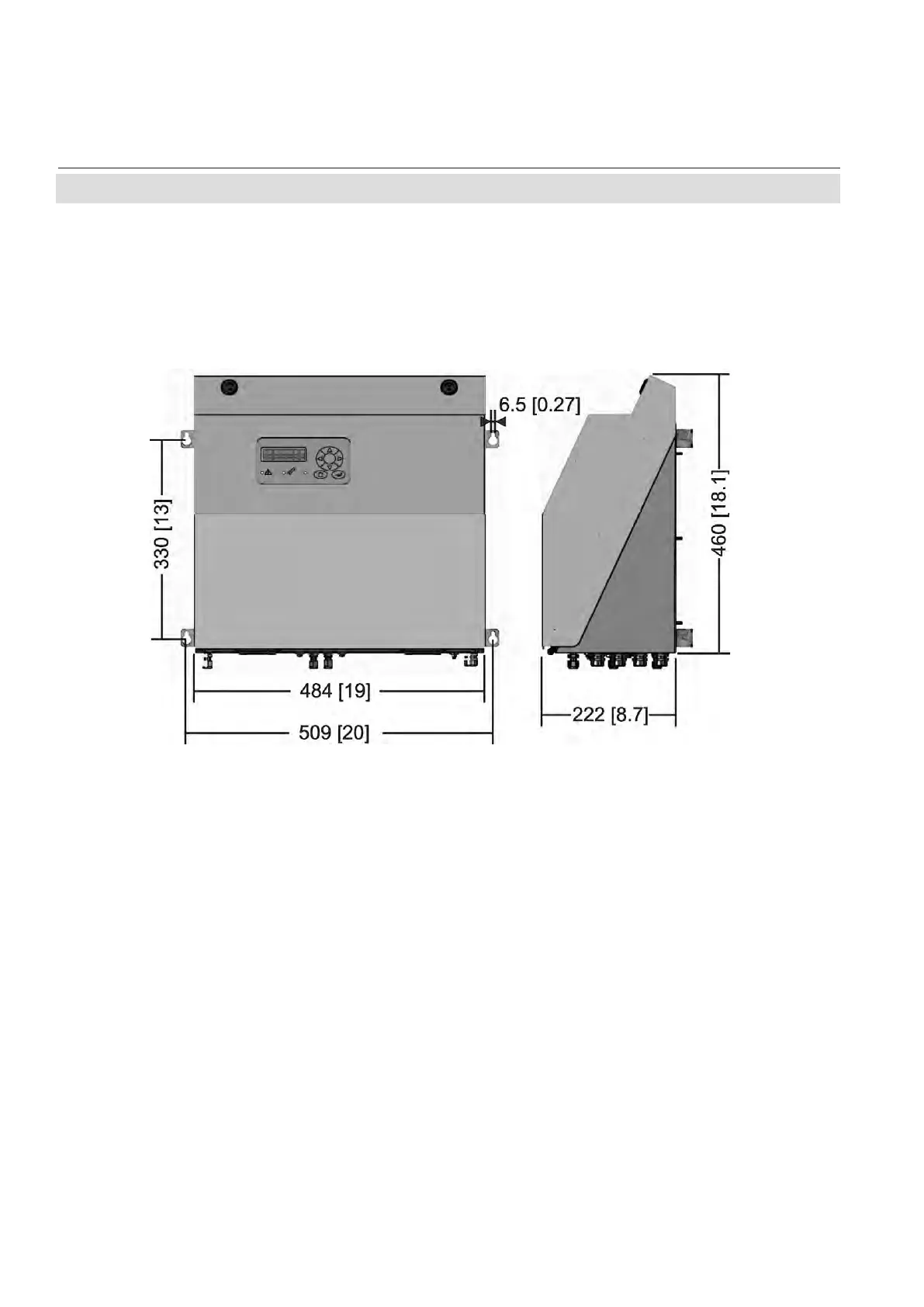

Fig. 2-4: X-STREAM F - dimensions (approx. mm [inch])
Housing
Permissible ambient temperature range -4 F to 122 F ( -20 °C to +50 °C)
Weight: approx. up to 57.3 lbs (26 kg)
(depending on analyzer configuration)
Protection class: IP 66 (EN 60529) / NEMA 4X
for outdoor installation
Analyzer must not be exposed to direct
sun light
Gas fittings: quantity: max. 8
specification: 6/4 mm PVDF
optional 6/4 mm or 1/4", stainless
steel, other on request
