4 Installation
4-4-1 Installation - X-STREAM GP, X-STREAM GPS

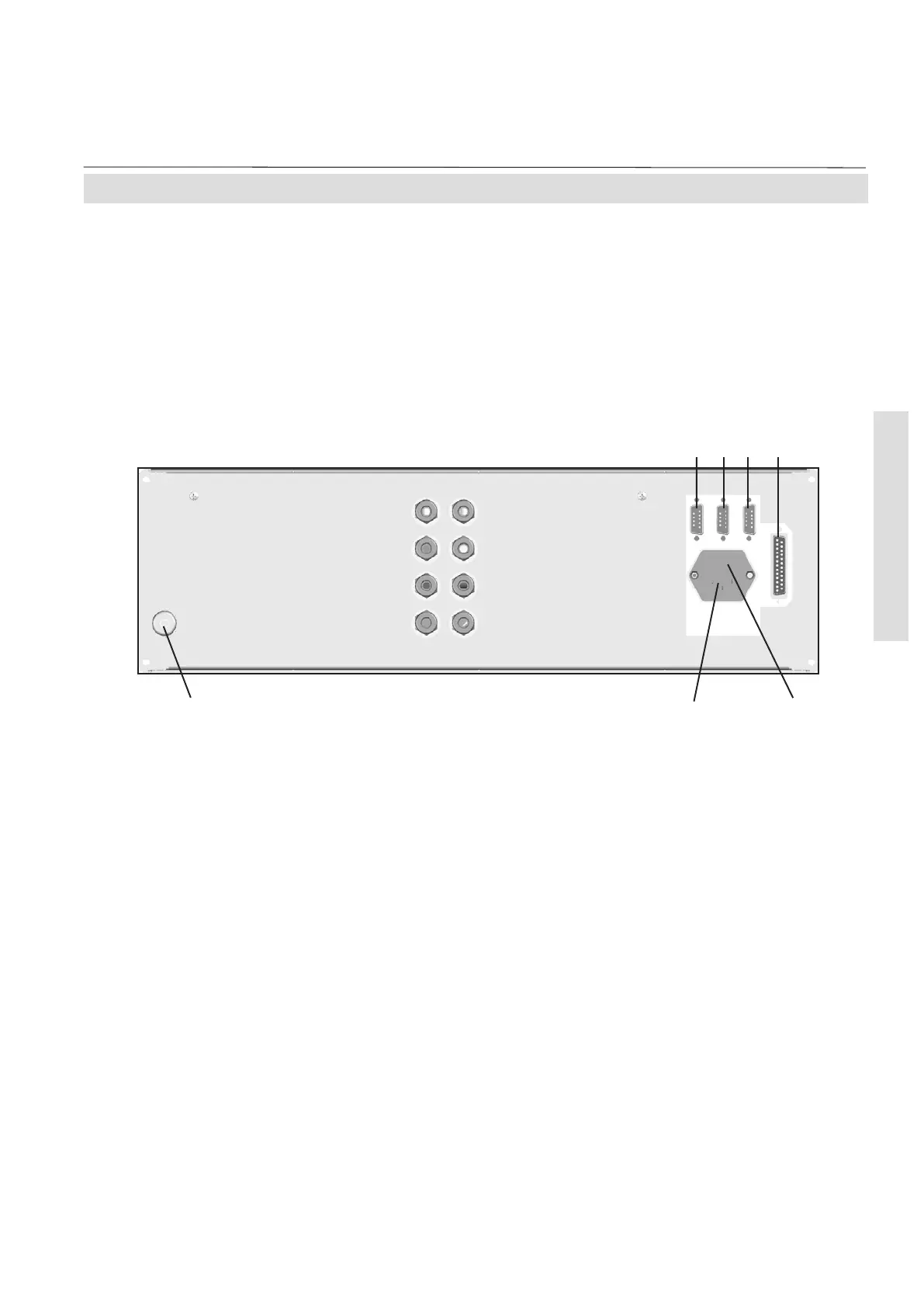

Fig. 4-3: Rear panel - plugs & sockets version
The number and assignment of gas inlet and outlet fittings depends on the application and is given
on a label attached to the analyzer's rear panel adjacent to the fittings.
For simple installation we recommend to mark the gas lines according to fig. 4-3 (In1, Out1, In2,
Out2, ...). This avoids confusion during re-installation when the analyzer had to be disconnected for
whatever reason.
Gas inlets
Gas outlets
1
2
3
4
Purge gas inlet
(option)
Analog outputs
Modbus interface
Relays
Digital inputs /
outputs
Power appliance
Power fuses
4-4-1-1 Plugs & Sockets Version
Gas inlets and outlets
Quantity: max. 8 (+ 1 optional purge gas fitting)
Specification: 6/4 mm PVDF
optional 6/4 mm or 1/4", stainles steel,
other on request
