X-STREAM
Emerson Process Management GmbH & Co. OHG 7-39
Instruction Manual
HASAxE-IM-HS
05/2006
7 Maintenance
7-4 Replacing the Electrochemical Sensor
7-4-2 Opening the Analyzer
ELECTRICAL SHOCK HAZARD!
Live parts are accessible when working at open instruments!
Take care to observe all applicable safety instructions!
7-4-2-1 Opening X-STREAM GP / GPS
Locate the 12 screws at the top of the instrument
and after loosening them remove the cover.
7-4-2-2 Opening X-STREAM F
Open the front door utilizing the two sash
fasteners. Flip down the front door carefully to
not damage the instrument, hinges or
equipment installed below the analyzer.

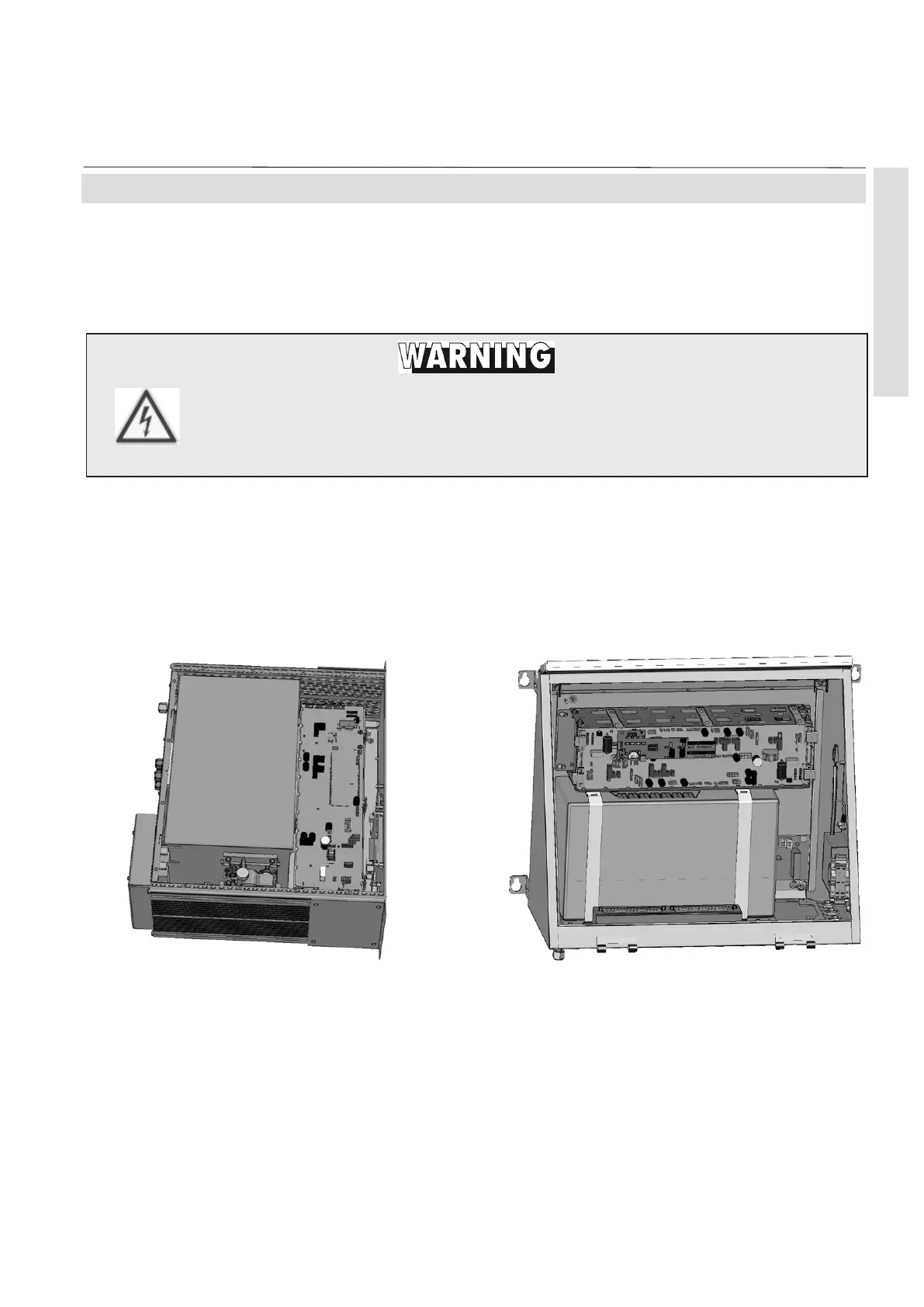

Fig. 7-4: X-STREAM interior views
(covers and doors not shown)
