8 Troubleshooting
8-4-5 Fuse on BKS 20 Board

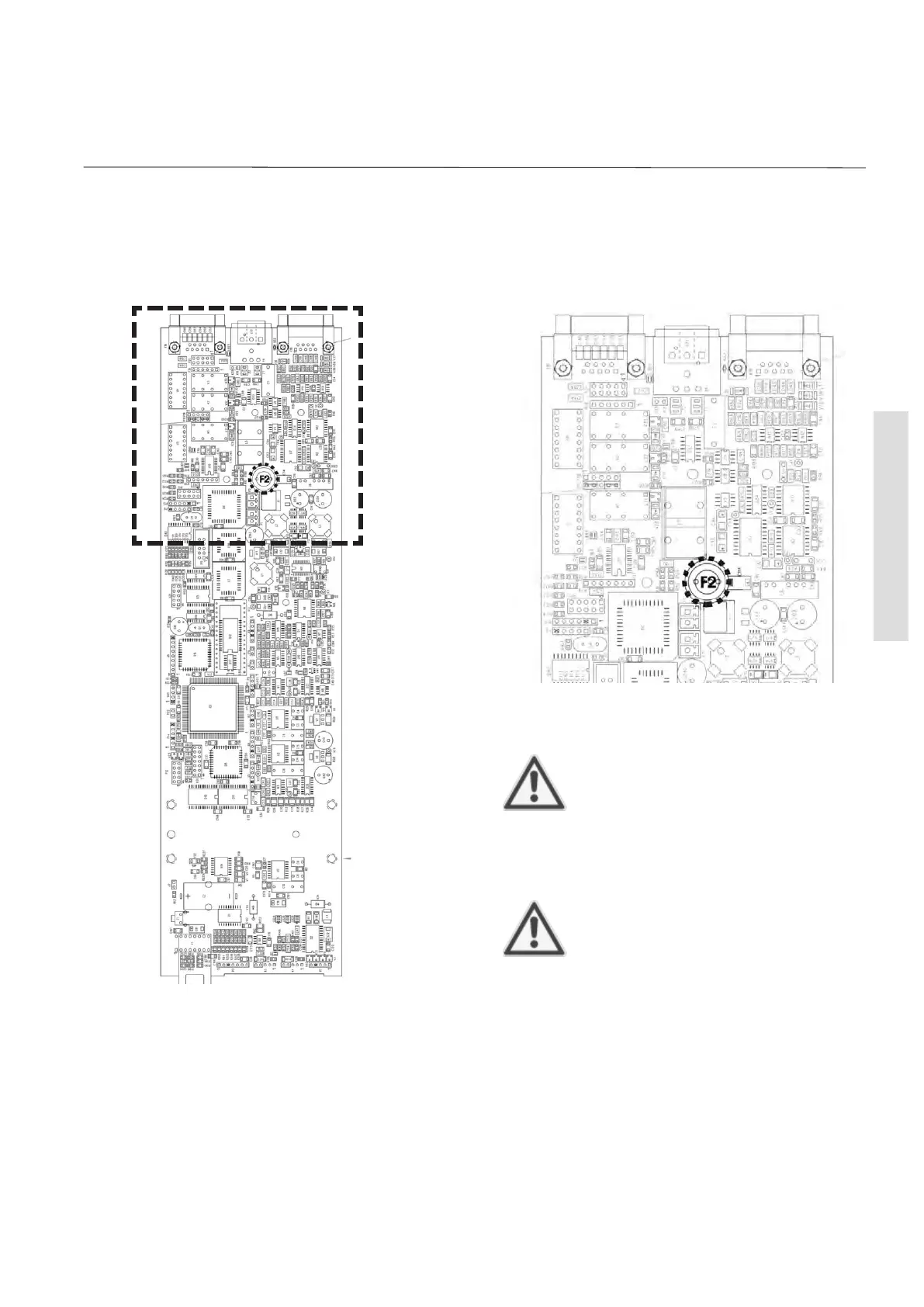

Fig. 8-6: Allocation of fuse on BKS board

Before replacing the fuse ensure
the instrument is de-energized!
The fuse is placed in a socket. Just pull it out
and insert a new one.
Use only the same type and
ratings of fuse!
Fuse data: Type Wickmann 372
T 4 A / 250 V
