X-STREAM
4-11
Instruction Manual
HASAxE-IM-HS
07/2006
Emerson Process Management GmbH & Co. OHG
4 Installation
4-4-1 Installation - X-STREAM GP, X-STREAM GPS
Digital Inputs & Outputs
Design: Open collector (outputs)
Electrical specification:
outputs: max. 30 V
, 30 mA
inputs: max. 30 V , internally limited to 2.3 mA
H level: min. 4 V; L level: max. 3 V
Note!
Take care of the special installation instructions
in section 4-5!

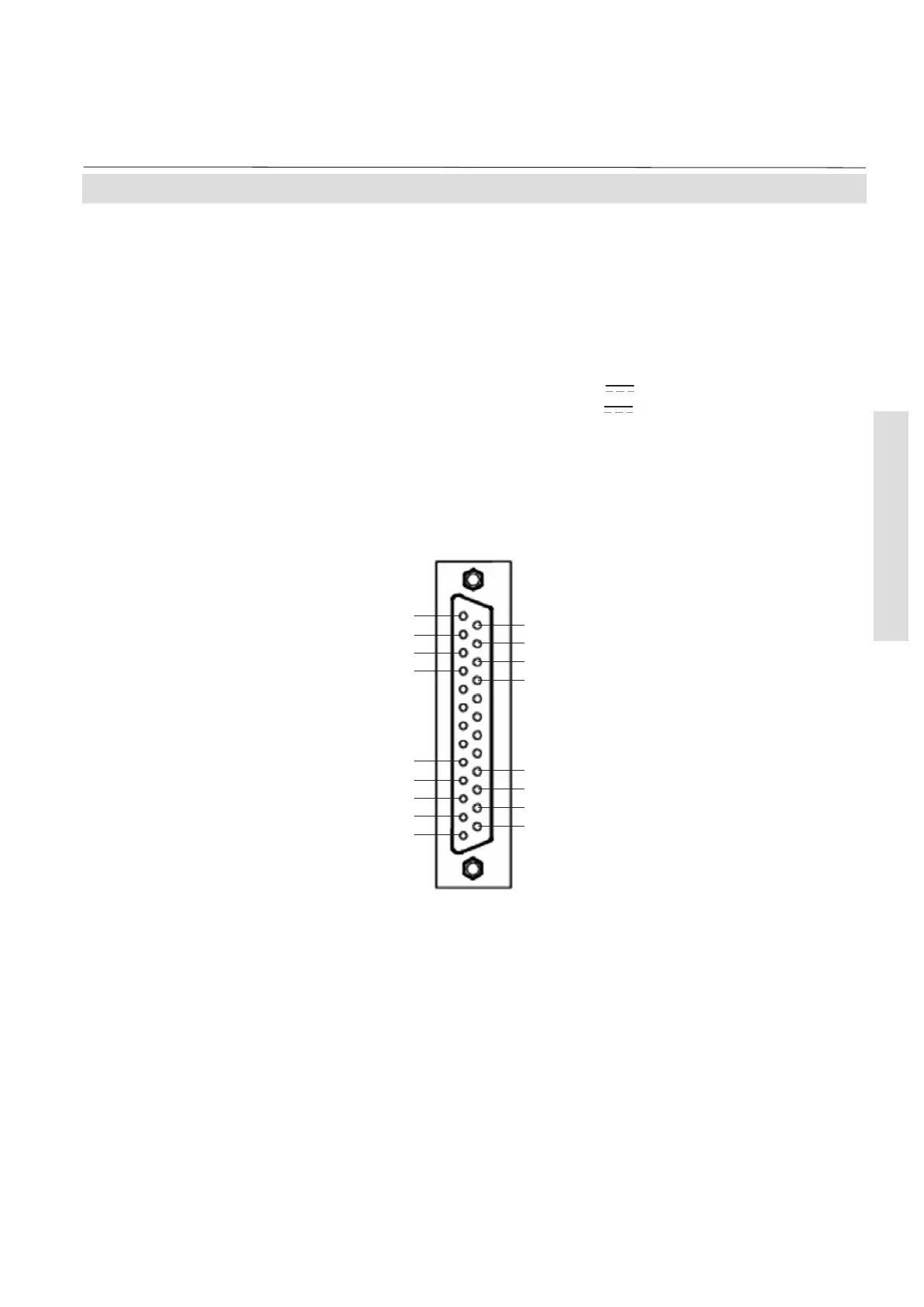

Fig. 4-8: Socket X4 - pin assignment
Legend: Pin # / Function
14 / Span cal. Ch1
15 / Open V4
16 / Open V2
17 / DIG In GND
25 / Ch1: threshold 1
24 / Ch2: threshold 1
23 / Sample valve
22 / Valve V1
1 / Zero cal. Ch1 & Ch2
2 / Span cal. Ch2
3 / Open V1
4 / Open sample valve or
close all
9 / Valve V2
10 / Valve V4
11 / Ch2: threshold 2
12 / Ch1: threshold 2
13 / DIG Out GND
Digital Outputs Digital Inputs
