Emerson Rosemount Xstream Series - Fig. 4-5: Socket X2 - Pin Assignment

X-STREAM
4-9
Instruction Manual
HASAxE-IM-HS
07/2006
Emerson Process Management GmbH & Co. OHG
4 Installation
4-4-1 Installation - X-STREAM GP, X-STREAM GPS

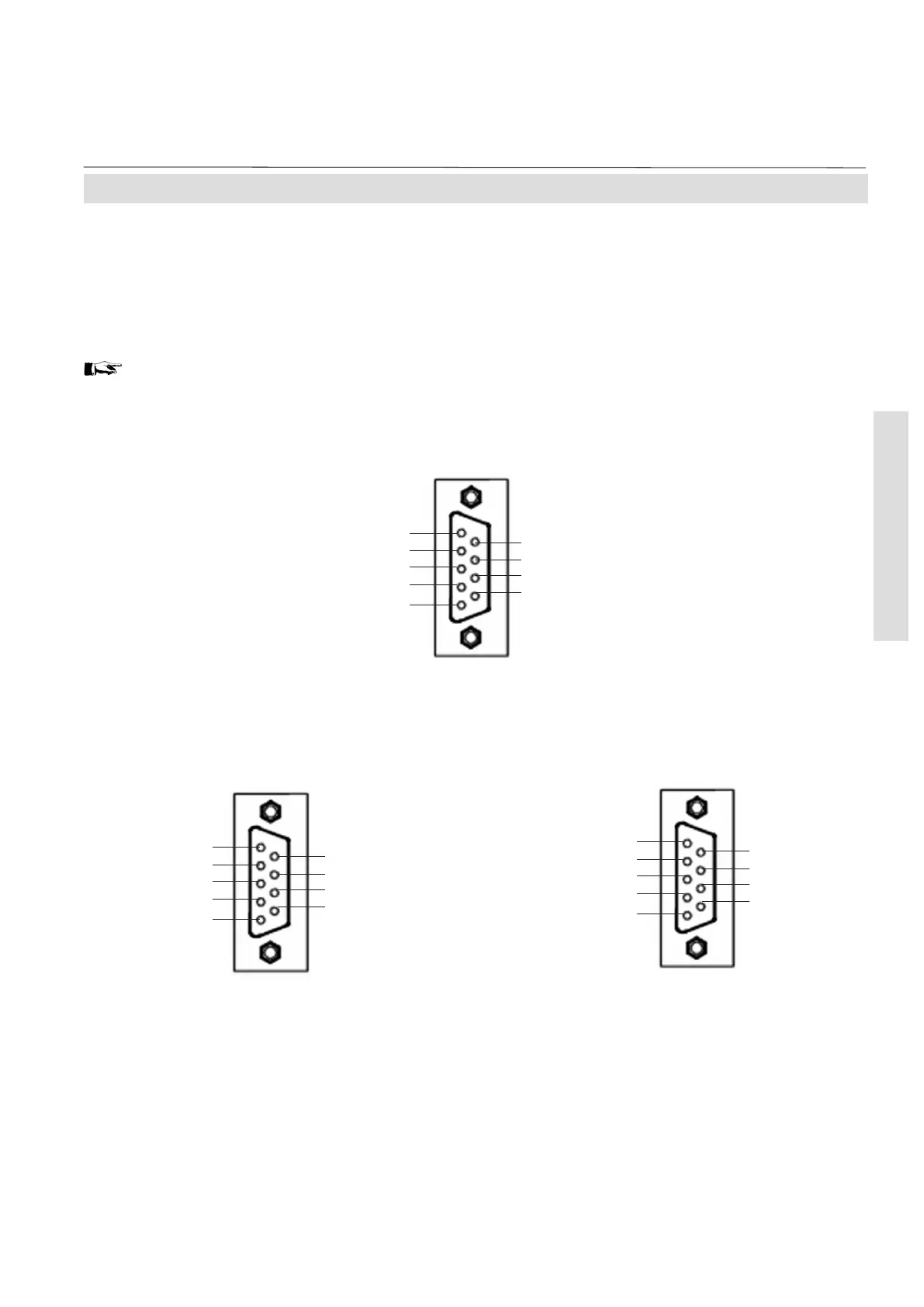

Fig. 4-5: Socket X2 - pin assignment
RS 232 interface
RS 485 interface
Modbus interface
Specification and driving the interface:
Chapter 7
Note1!
Take care of the special installation
instructions in section 4-5!
6 / not used
7 / not used
8 / not used
9 / not used
1 / Common
2 / RXD
3 / TXD
4 / not used
5 / Common
Legend: Pin # / Signal
Legend: Pin # / Signal
6 / not used
7 / not used
8 / RXD0
9 / TXD0
1 / Common
2 / not used
3 / not used
4 / RXD1
5 / TXD1
6 / not used
7 / not used
8 / not used
9 / D0
1 / Common
2 / not used
3 / not used
4 / not used
5 / D1
Note2!
X-STREAM analyzers are to be considered
a DTE (Data Terminal Equipment).
4-wire configuration 2-wire configuration
