X-STREAM
2-13
Instruction Manual
HASAxE-IM-HS
05/2006
Emerson Process Management GmbH & Co. OHG
2 Technical Data
2-3 Information on the Nameplate Label
The analyzer nameplate label gives important
information about the instrument‘s confi-
guration, installed measuring principle(s),
sample gas(es), measuring range(s) and
shows the serial number, required when asking
for support or spare parts.
2-3 Specifications on the Nameplate Label
The nameplate label is located either on the
instruments left or right housing side or at the
inner side of the front door (field housing).
Model and installed measuring
principles (here: IR & UV)
Channel 1:
Gas and measuring range
(here: CO, 400 to 1000 ppm)
Serial number
Channel 2:
Gas and measuring range
(here: SO
2
, 800 to 2000 ppm)

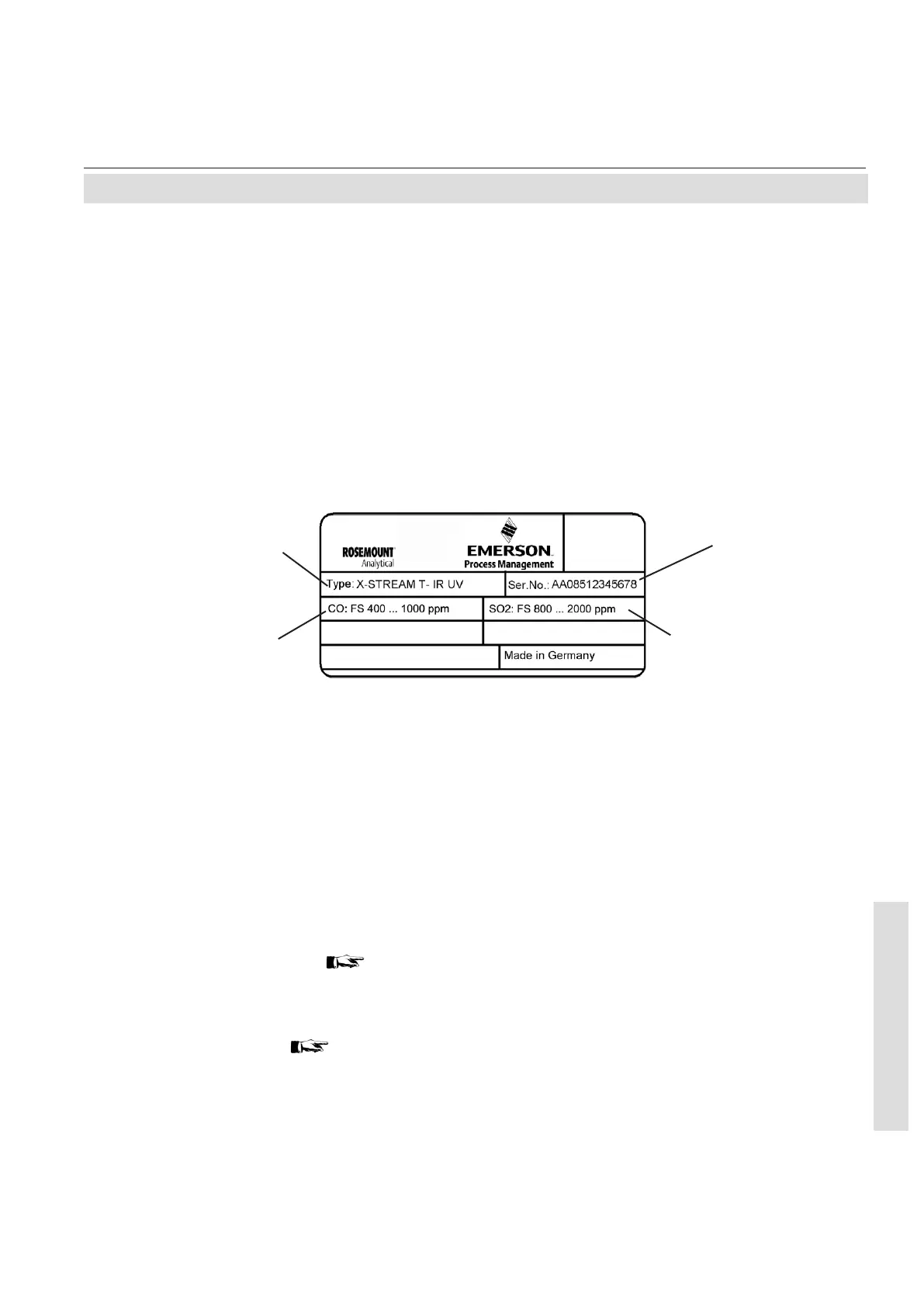

Fig. 2-7: Analyzer Nameplate Label (example)
Note!
The operator may change the analog output
scaling within the stated measuring ranges
without affecting the specifications.
(Here for channel 1 a 20 mA output signal
may be assigned to concentration values
between 400 and 1000 ppm, ANALOG
OUTPUT SIGNAL SCALING menu, page
5-35 ).
The measuring ranges are also shown in the
INFO - RANGES.. menu, page 5-57.
