X-STREAM
4-23
Instruction Manual
HASAxE-IM-HS
07/2006
Emerson Process Management GmbH & Co. OHG
4 Installation
Signal inputs / outputs
Analog signal outputs
4-4-2 Installation - X-STREAM F
ELECTRICAL SHOCK HAZARD!
Verify power cables are disconnected and/or instrument is de-energized
prior to working at the terminals!
For access to the terminals open the instru-
ment's front door
.

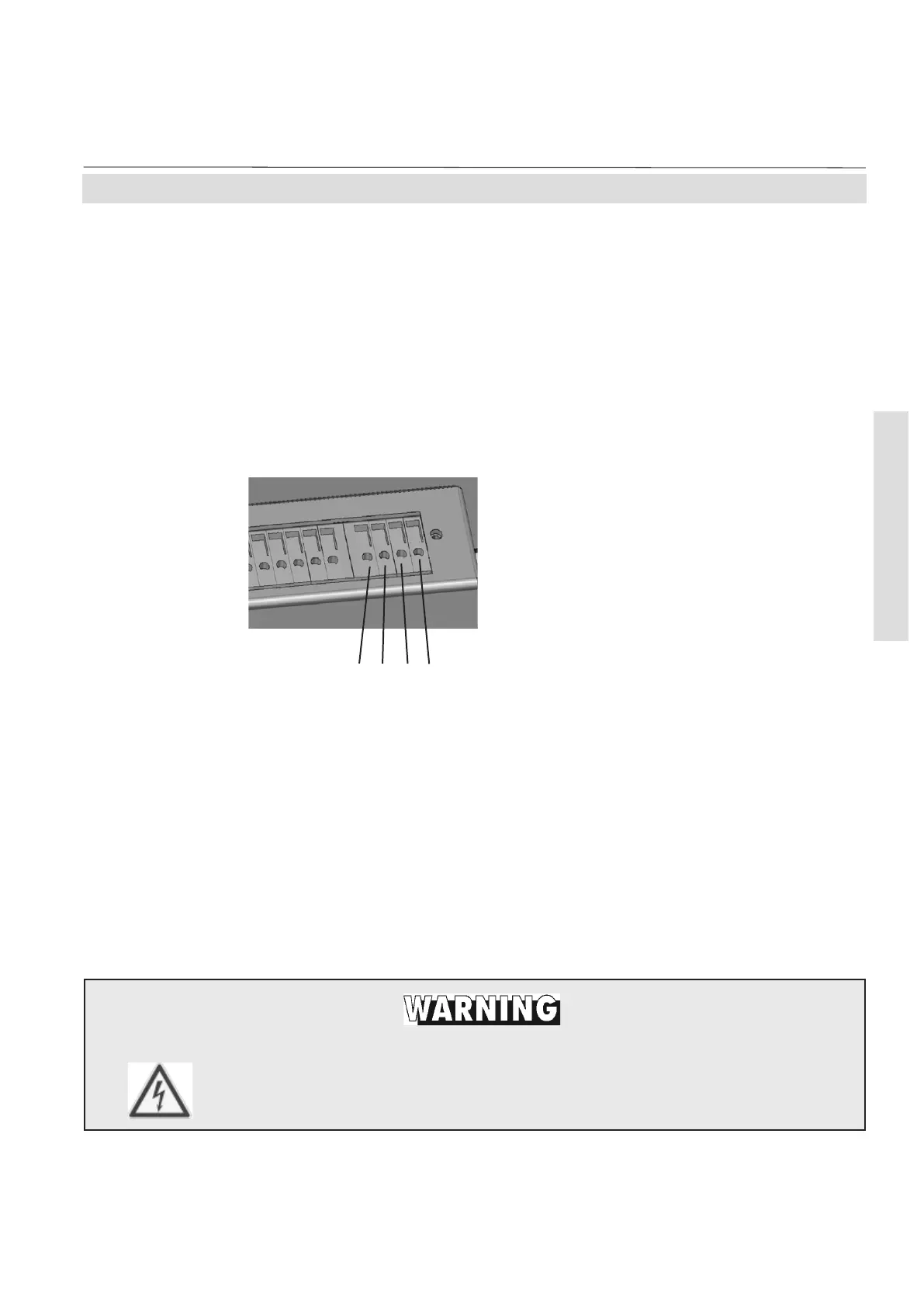

Fig. 4-19: X-STREAM F - Analog output terminals
Note!
Take care of the special installation instruc-
tions in section 4-5 and of the cable gland
assembly instruction on page 4-22!
The rightmost 4 terminals (# 1 - 4) of the
terminals row next to the power terminals are
reserved for analog signal outputs.
(-) 4 (0) - 20 mA, channel 2
(+) 4 (0) - 20 mA, channel 2
(-) 4 (0) - 20 mA, channel 1
(+) 4 (0) - 20 mA, channel 1
Burden: R
B
≤ 500 Ω
