4 Installation
Relay status Signals
Design: dry relay contacts
Electrical specification: max. 30 V , 1 A, 30 W

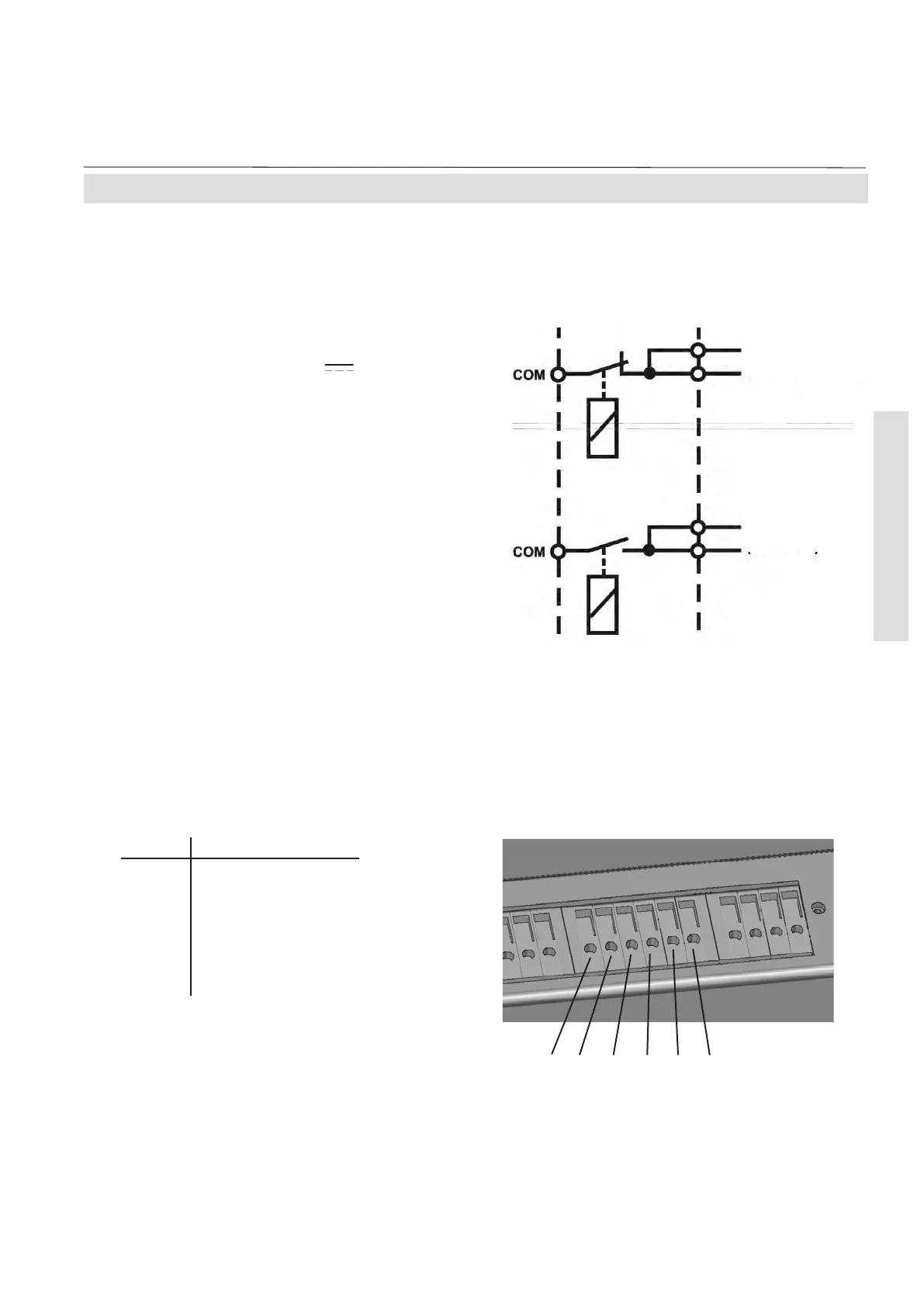

Fig. 4-21: Relay status signals, block diagram
Note!
Take care of the special installation instruc-
tions in section 4-5 and of the cable gland
assembly instruction on page 4-22!
4-4-2 Installation - X-STREAM F
Signal output (NC);
configuration on
request
Signal output (NO);
factory standard
configuration
Fig. 4-22: X-STREAM F - Relay Status Terminals
For accessing the terminals open the
instrument's front door.
The middle 6 terminals (# 5 - 10) of the
terminals row next to the power terminals are
reserved for the relay status signals.
5 Failure COM
6 Failure NO
7 Maintenance, off-spec COM
8 Maintenance, off-spec NO
9 Function check COM
10 Function check NO
Terminal Signal
5678
9
10
