ENSONIQ KT-88 Musician's Manual

Section 5 — Understanding Sounds
4 ENSONIQ KT Musician’s Manual
KT Standard Sound Configuration
Each of the three voices within a KT Standard sound has:
• a digital oscillator playing one of the 211 waves from the KT wave memory
• a filter stage comprised of two multi-mode digital filters
• an output stage for amplitude control
• one low frequency oscillator (LFO)
• three complex envelope generators for controlling each of the three stages
• a versatile matrix modulation scheme with 15 routable modulation sources

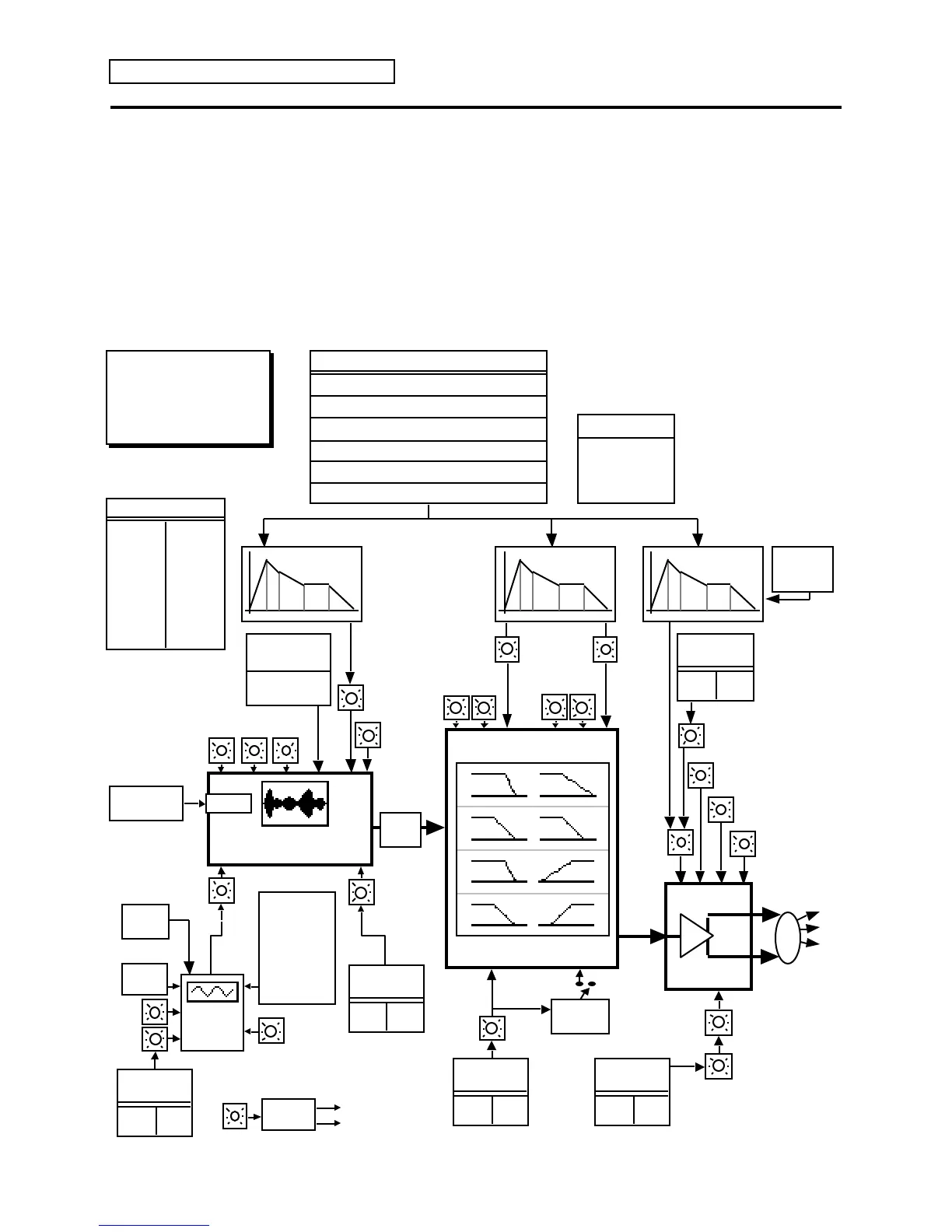

The following diagram shows the configuration of one KT voice.
Velocity Curve
Keyboard tracking of Times
Velocity control of Levels and Attack Time
Depth
Delay
TRIANGLE
SINE
SINE/TRI
POS/SINE
POS/TRI
SAWTOOTH
SQUARE
ENV1 ENV2
Filter Mode:
Env 1
Mod
Amt
Octave
Semi
tone
Pitch
Mod
Amt
F1
Mod
Amt
Cut
off
Kbd
Amt
Env 2
Mod Amt
Cut
off
Digital
Oscillator
Digital Filter
Pan
Position
LFO
Amt
Kbd
Amt
Env 2
Mod
Amt
LFO Wave
F1 F2
F2:F1:
Amplifier
LFO
Fine
tune
Wave
Mod Sources
LFO
NOISE1
NOISE2
ENV1
ENV2
ENV3
WHL+PR
WHEEL
PITCH
PEDAL
TIMBRE
XCTRL
PRESSR
KYBD
VELOC
<OFF>
Levels: Peak, Break, Sustain
Envelope Parameters
QUIKRISE
CONVEX
LINEAR
CONCAVE
Velocity Curves
Noise Src
Rate
Noise
Source
Rate
System
Bend Range
System
Pitch-Table
Wave
Mod
KT-76
Standard Sound
Voice
Configuration
F1
Mod Source
LFO
Mode
Pitch
Mod Source
ENV3
ON OFF
Times: Attack, Decay1, 2, Release
NOISE1
NOISE2
LFO Depth
Mod Source
Mode (NORMAL, FINISH, REPEAT)
Restart
Mode
Wave
Delay
Glide
Mode &
Glide
Time
Pan
Mod
Source
Pan
Mod Source
Volume
Mod Amt
Voice
Ouput
Volume
(ENV 3 Amt)
L
R
Volume
Mod Source
Volume
Mod Source
Keyboard
Scaling
MODE=
REPEAT will
restart the
wave
Velocity
Window
Voice
Priority
DRY
FX1
FX2
2-HP2-LP
3-LP 1-HP
2-LP
3-LP
2-LP
1-LP
Fc1 Mod
—> Fc2
