STACK CORRECTION/SLICE SPACING:
Depending on whether “Stack,” “Shingle” or
“Shaved” mode is selected in the “Portion Type”
parameter in the Product Code, determines which
adjustment will display on the list. (Illustration 36)
(“Stack” selected in the “Portion Type”): If
“Stack” is selected, the “Stack Correction”
adjustment displays and is used to compensate
for leaning stacks. (Illustration 37) This parameter
controls the distance that the Slicing Conveyor
will travel forward or backward, while the stack is
being sliced. Set this setting as a positive or
negative number depending on which way the
stack is leaning.
If the stack is leaning toward the rear of the
machine, set this as a “negative” distance.
If the stack is leaning toward the front of the
machine, set this adjustment as a “positive”
number.
(“Shingle” selected in the “Portion Type”): If
“Shingle” is selected, the “Slice Spacing”
adjustment displays and controls the speed and
travel distance of the Slicing Conveyor while
shingling a draft. (Illustration 38) The larger the
setting, the greater the slice spacing and the
longer the overall draft length. Set this parameter
high enough for the draft to fill the packager
pocket.
(“Shaved” selected in the “Portion Type”): If
“Shaved” is selected, the “Shaved Product
Spacing” adjustment displays. This adjustment
controls the speed and travel distance of the
Slicing Conveyor while the “shaved” product is
sliced. This adjustment must be set to a long
“slice spacing” distance in order to create a
“bunched” pile of product on the Transfer
Conveyor.
If the setting is too low, the slices will not roll and
“Bunch” into a pile properly.

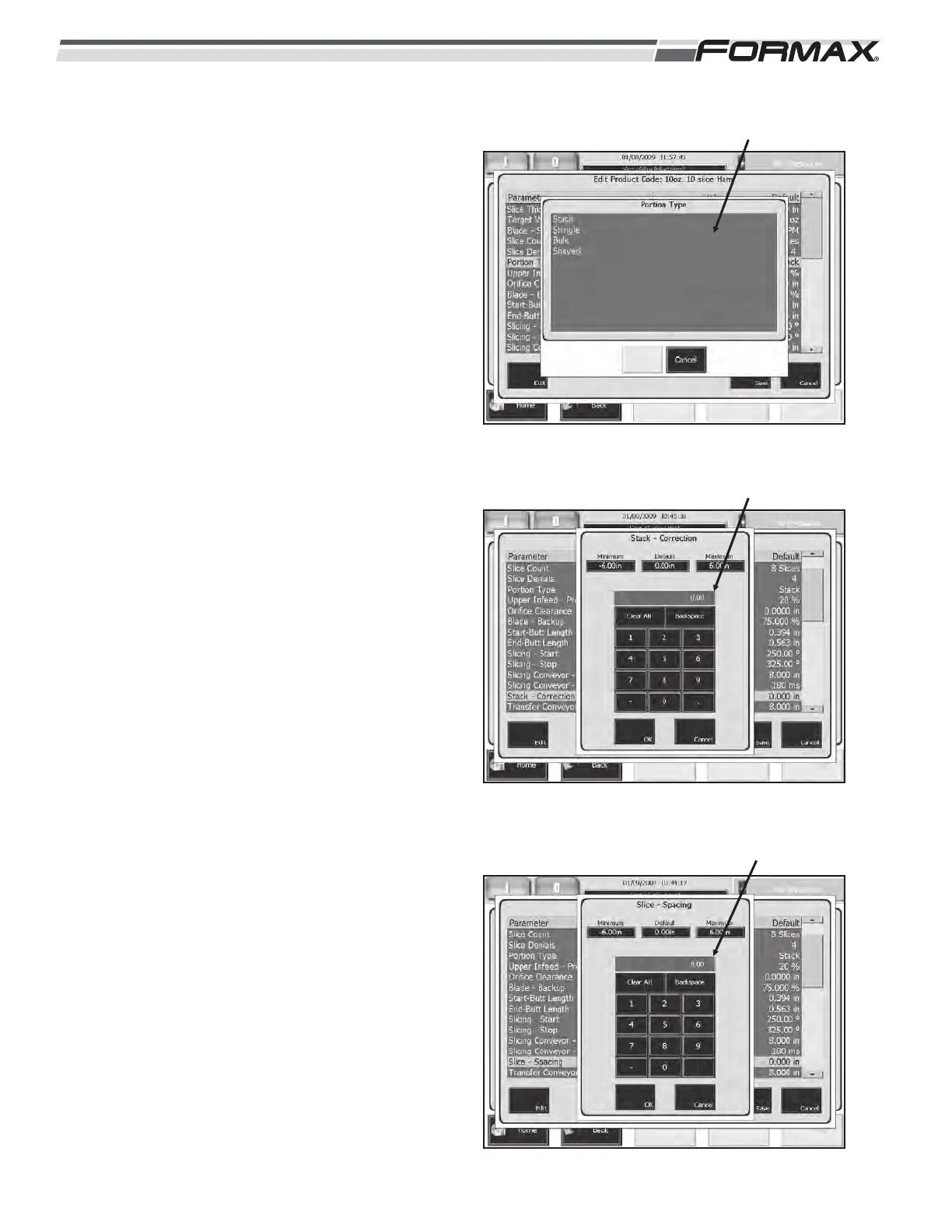

ILLUSTRATION 36
PORTION TYPE
ILLUSTRATION 37
STACK CORRECTION
ILLUSTRATION 38
SLICE SPACING
