Lower Infeed #1, #2, #3: The Lower
Infeed screens allow you to test the
operation and travel accuracy of the
Lower Infeed Conveyor Belts individually.
(Illustration 30)
Home: Homes the Lower Infeed
Conveyor and Gripper to a hard stop
at the top.
Jog Forward: Runs the Lower Infeed
Conveyor forward,
Jog Backward: Runs the Lower
Infeed Conveyor backward.
Stop: Stops the Lower Infeed
Conveyor.
EStop: Stops the Lower Infeed
Conveyor.
Reset Fault: Resets Fault.
Loaf Gate: The Loaf Gate screen allows
you to test the operation of the Loaf Gate
Cylinder. (Illustration 31)
Butt Drop: Moves the Loaf Gate to
the “Down” position.
Feed: Moves the Loaf Gate to a level
position with the Shear Bar.
Load: Moves the Loaf Gate to the
“Up” position.
Cycle: Cycles Loaf Gate “open” and
“closed.”
Reset: Does not apply.
Stop: Stops the Loaf Gate Cycle.

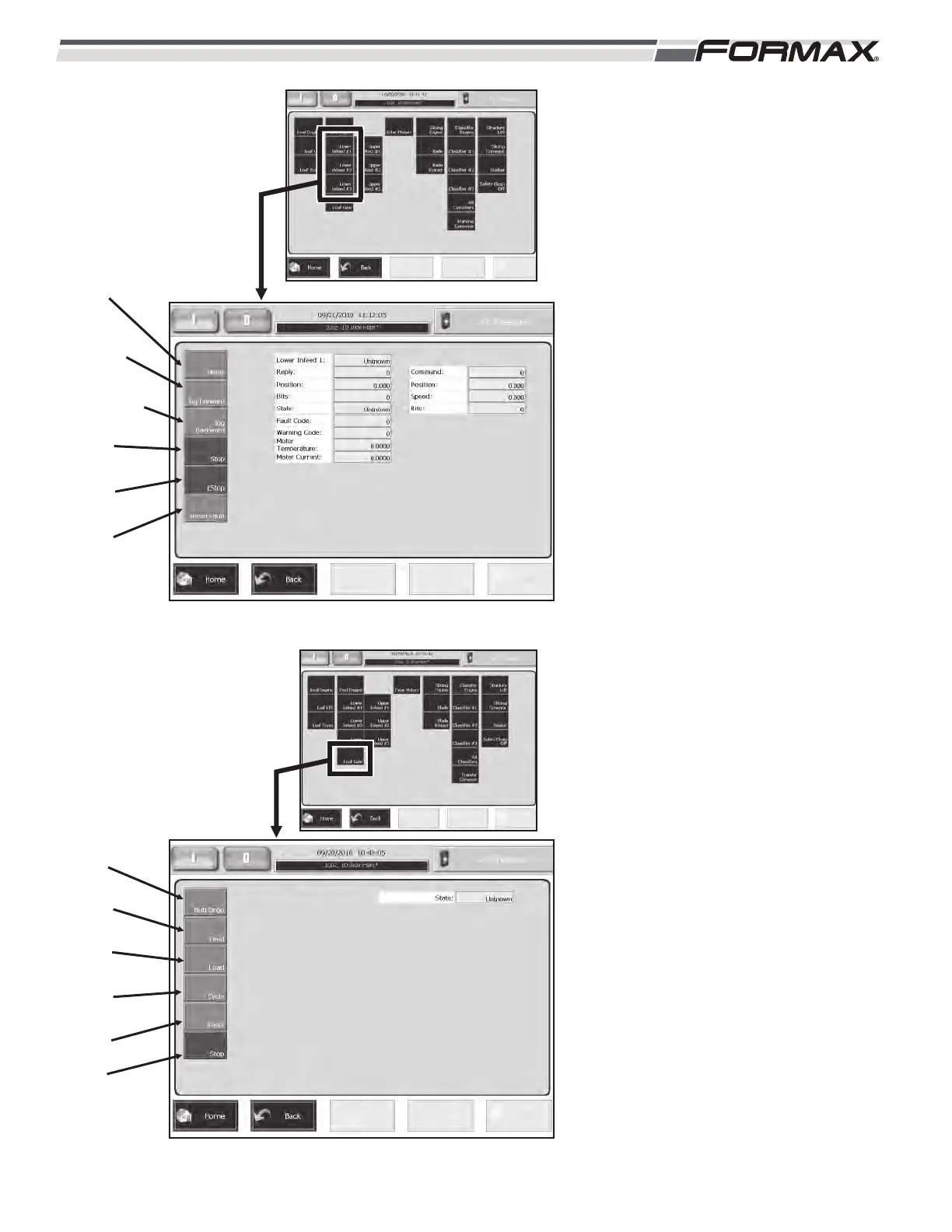

ILLUSTRATION 30
HOME
JOG
FORWARD
JOG
BACKWARD
STOP
ESTOP
RESET
FAULT
ILLUSTRATION 31
BUTT
DROP
FEED
LOAD
CYCLE
RESET
STOP
