Exlar Motors: The Exlar Motors screen displays the
test functions of the Exlar Motors. (Illustration 33)
Transfer Lift: Allows you to test the operation of the
Transfer Lift Linear Actuator.
Enable:
Home:
Move: Enter a “Position” in the Keypad. Pressing
“OK” will move the Decel Lift to that position.
E-Stop: Stops the movement of the Transfer Lift
Actuator.
Classifier: Allows you to test the operation of the
Classifier Accept/Reject Conveyors
Enable:
Home:
Run: Enter a “Speed” in the Keypad. Touching
“OK” will run all of the “Accept/Reject”
Conveyors.
Stop: Stops the Accept/Reject Conveyors.
E-Stop: Stops the movement of the
Accept/Reject Conveyors.

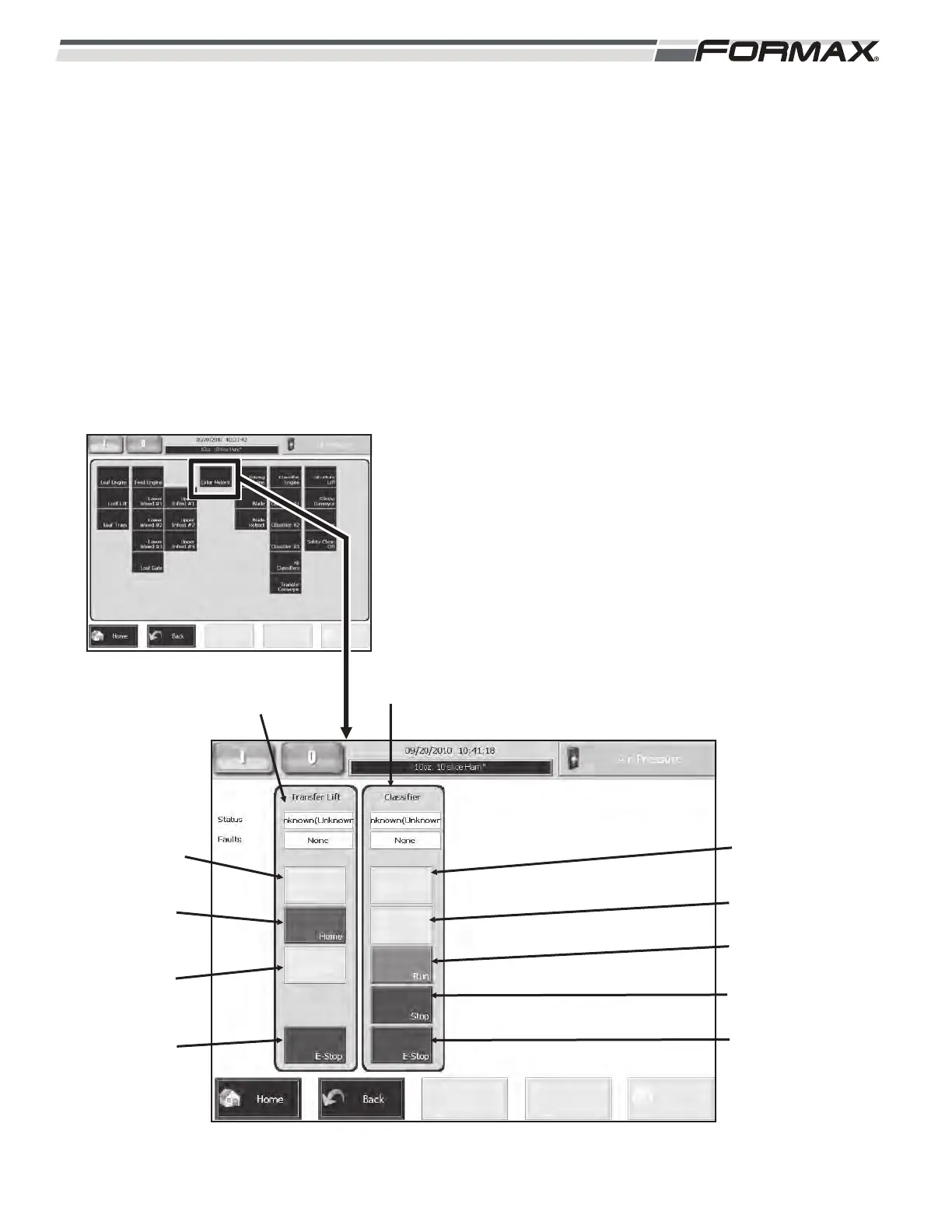

ILLUSTRATION 33
TRANSFER
LIFT
CLASSIFIER
ENABLE
HOME
MOVE
ESTOP
ENABLE
HOME
RUN
STOP
ESTOP
