Classifier Engine: The Classifier
Engine screen allows you to test the
operation of the Classifier
Accept/Reject Conveyors.
(Illustration 37)
Home: Moves the Transfer
Conveyor to the “Home” position.
Move To Ready: Moves the
Accept/Reject Conveyors to the
lowered position.
Move To Clean: Moves the
Accept/Reject Conveyors to the
raised position.
Cycle: Cycles the Transfer
Conveyor, the Scale Conveyors
and the Classifier Conveyor.
Hold: Stops the cycle of the Scale
Conveyors and Classifier
Conveyors. The Transfer Conveyor
will continue to run.
Resume: Resumes operation of
the Scale Conveyors and Transfer
Conveyor.
Reset Faults: Resets Faults.
Stop: Stops the “cycle” of the
Classifier.
EStop: Stops the “cycle” of the
Classifier.

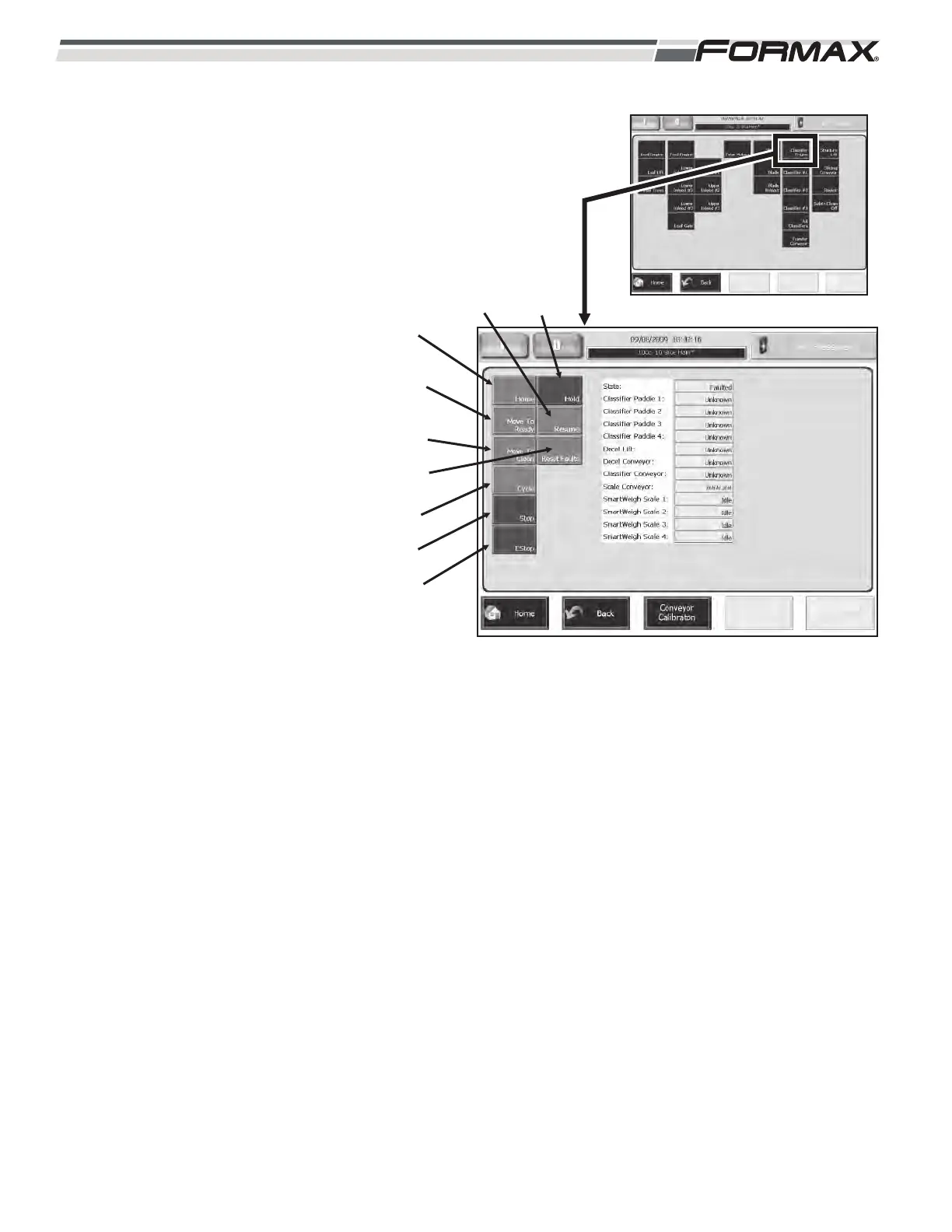

ILLUSTRATION 37
HOME
MOVE TO
READY
MOVE TO
CLEAN
CYCLE
HOLD
RESUME
RESET
FAULTS
STOP
ESTOP
