031914 M3-13
4. The common wire (402) is sent
directly to the M16 and M17
Rotary/Linear Actuator Motors on
wire 402. The 401 wire takes the
48 VDC through the QF8 Breaker.
The QF8 Circuit Breaker protects
the GS3 Power Supply from
over-current conditions.
5. The QF8 Breaker sends the 48
VDC on wire 403 to the M16 and
M17 Servo Motors. The Servo
Motors have Motor Power supply
voltage as long as the KM3
Contactor is energized.

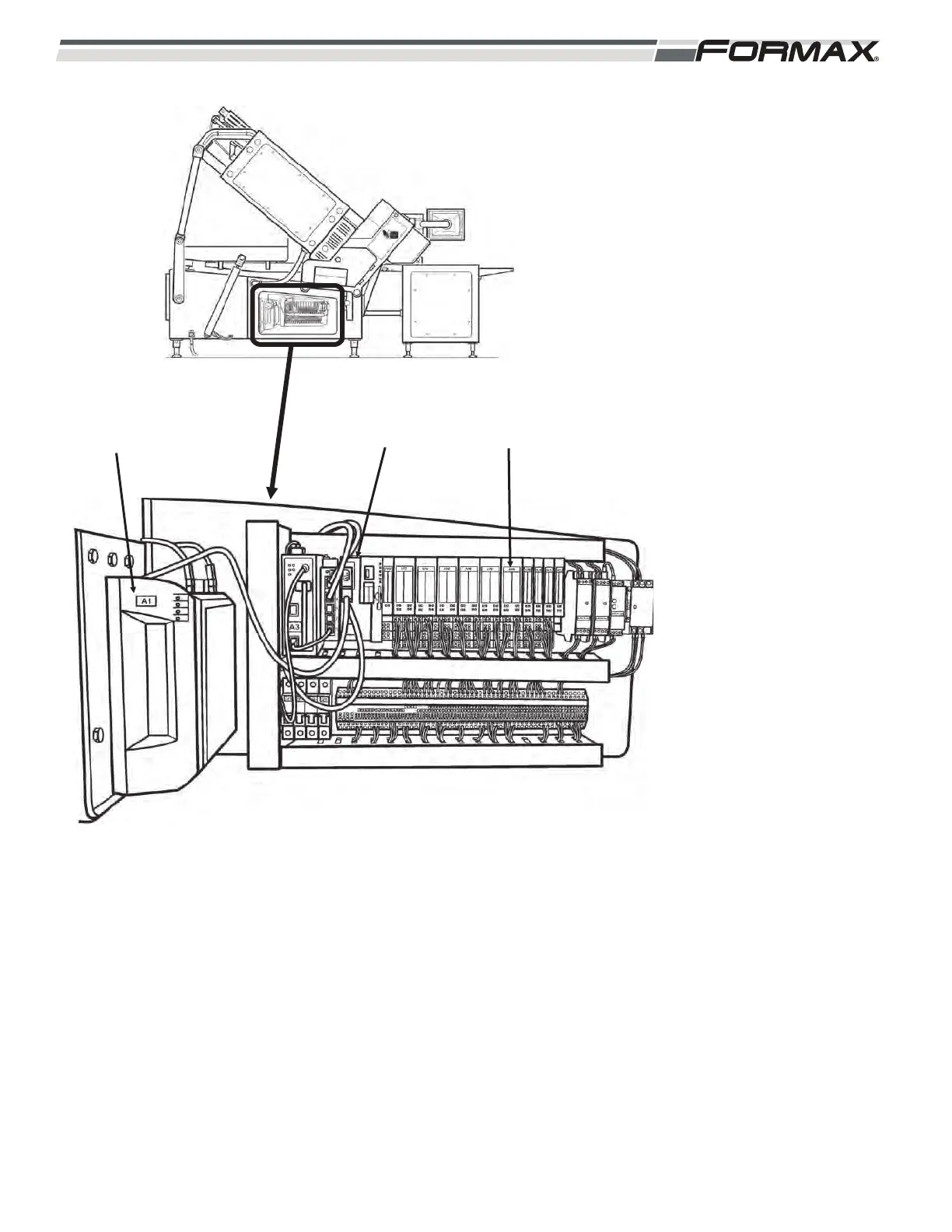

ILLUSTRATION 21
A1 COMPUTER
ASSEMBLY
AR8 SAFETY
MODULE
AR1 SAFETY
COMPUTER
