X120 Ethernet Connection: Ethernet
Cable that connects to the A8 Ethernet
Hub that allows communication with the
U1 Motion Control Module with a Laptop
Computer through the A3 Wireless
Ethernet Module located in the
Touchscreen. A Computer can also be
directly connected for troubleshooting
purposes.
X130 Ethernet Connection: Not Used.
CF Port: The Compact Flash Port that
holds the Compact Flash Chip that
holds the operating software that
controls the U1 Motion Control Module.
This Chip must be correctly
programmed for the U1 Motion Control
Module to operate.
IMPORTANT!
Each Motion Control Module has its own
Software Chip! They are not
interchangeable!

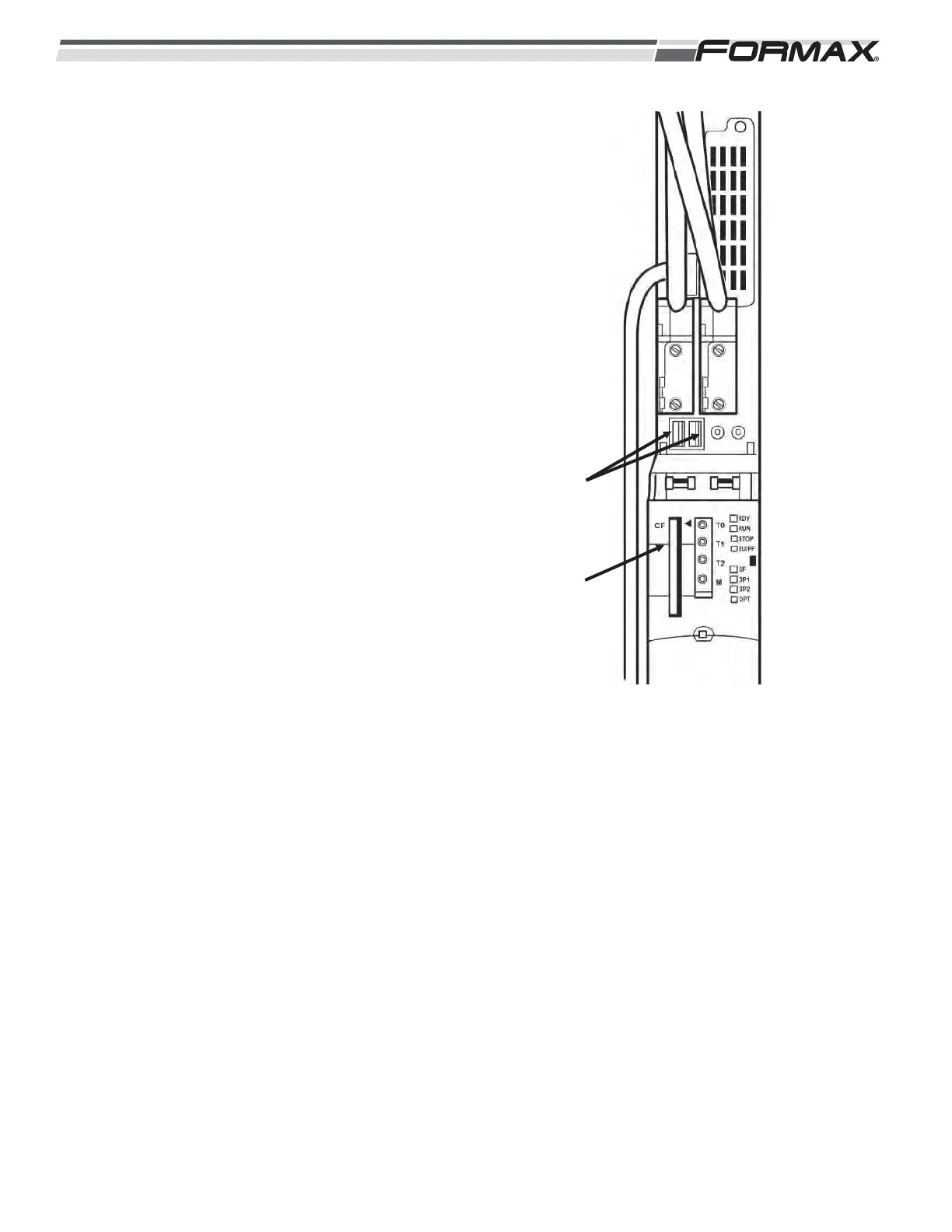

ILLUSTRATION 32
ETHERNET
PORTS
COMPACT
FLASH
CHIP
