X122 Terminal Connector: The X122
Terminal Strip can receive Status Input
Signals from components on the Slicer.

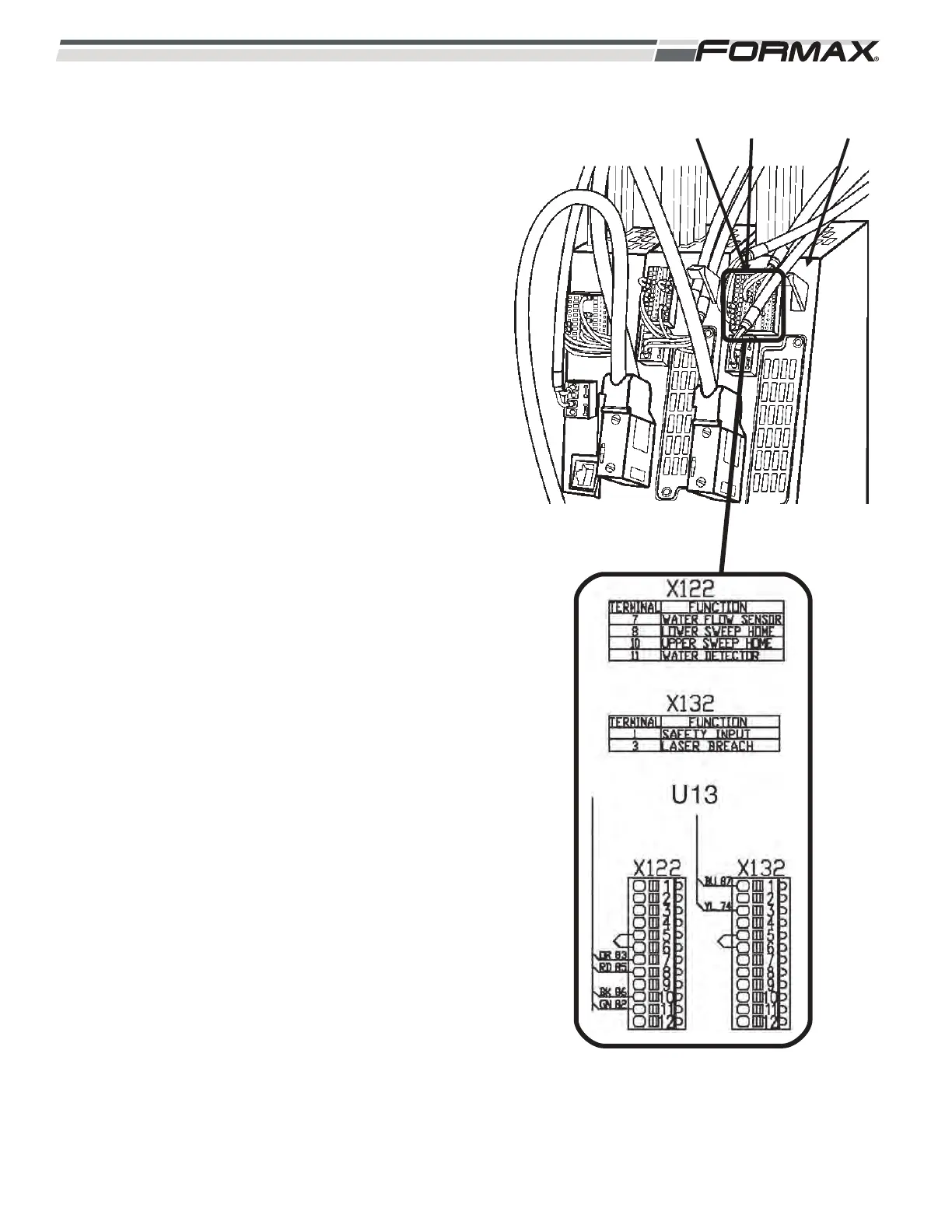

(Illustration 42) The X122 Terminal connector
is not currently in use.
X132 Terminal Connector: The X132
Terminal Strip receives a 24 VDC Status
Input Signal from KA1/KA2 Safety Relay.
Terminal 1: 24 VDC Input Signal from the
KA1/KA2 Safety Contactor when all
guards are closed and all “Master Off”
buttons are pulled out. This signals the
U9 Motion Control Module that it is safe to
run the Servo Motors under its control.
Terminal 2: Not used.
Terminal 3: Not used.
Terminal 5 and 6: Not used.
X122 U9 MODULEX132
ILLUSTRATION 42
