X124 Terminal Connector: The
Motion Control Modules require a 24
VDC Supply Voltage in order to
operate. (Illustration 43) This voltage is
sent from the QF9 Breaker to the X124
Terminals on each Module and
connects to the “+” and “M” terminals.
24 VDC is sent on wire “101” to
terminal “+.” The common wire is sent
on wire “2” to terminal “M.” This
voltage runs in parallel to each of the
Motion Control Modules.
X126 Profibus Connection: The
X126 Profibus Plug is the Profibus
Communication Network between the
U1, U2 and U9 Motion Control
Modules. The Terminating Resistor
Switch must be set to “On” position.
CF Port: The Compact Flash Port that
holds the Compact Flash Chip that
holds the operating software that
controls the U9 Motion Control Module.
This Chip must be correctly
programmed for, the Motion Control
Module to operate.
IMPORTANT!
Each Motion Control Module has its own
Software Chip! They are not
interchangeable!
U9
MODULE
SWITCH IN “ON”
POSITION

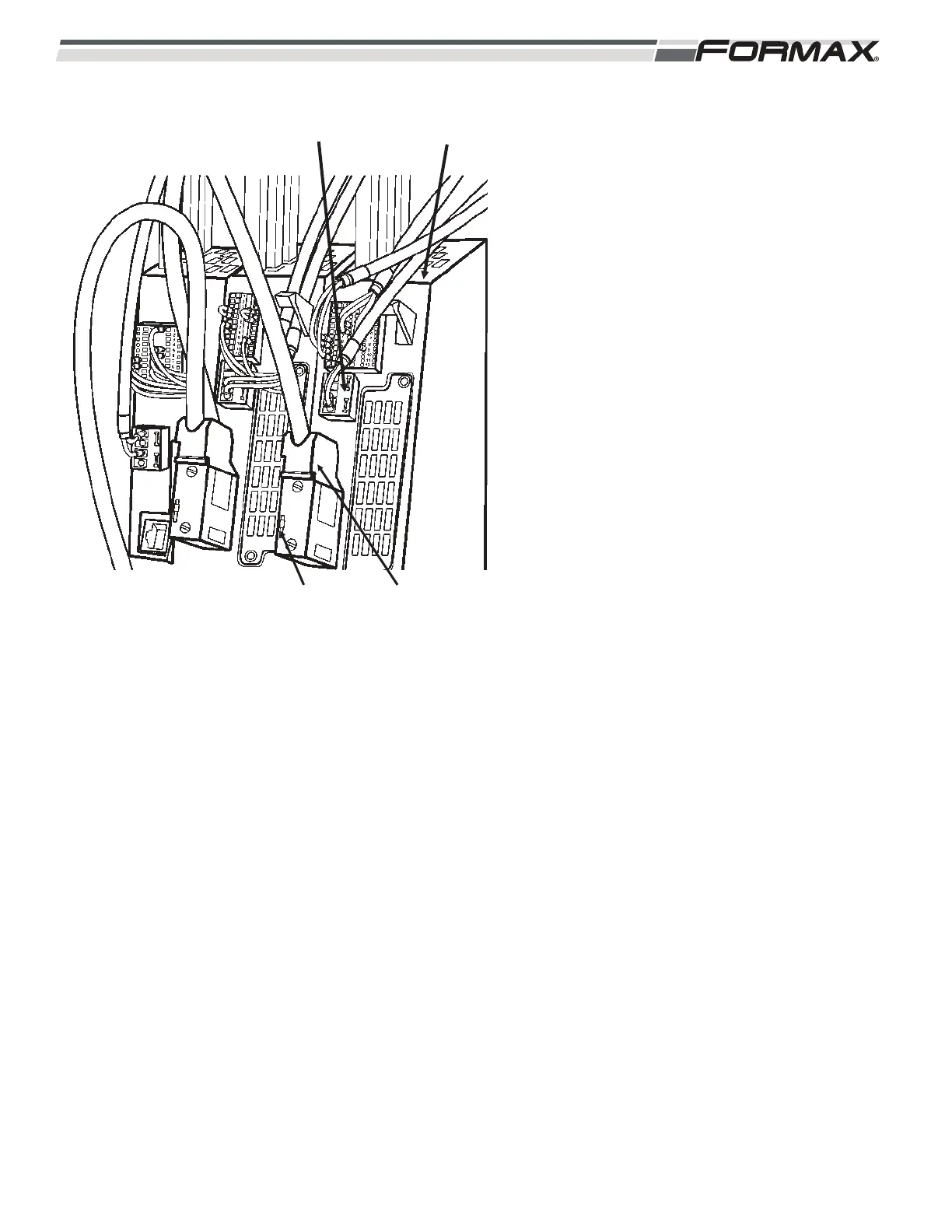

ILLUSTRATION 43
X124
TERMINAL
X126 PROFIBUS
CABLE
