M3-42 031914
DC LINK LED: The “DC LINK” LED
shows the status of the 650 VDC on
the DC Bus Bars. (Illustration 58)
LED OFF: Indicates that there is
no 24 VDC Control Voltage.
Check the 24 VDC at the X24
Terminal Plug.
Orange LED (RDY LED is
Green): The Servo Drive Module
is ready for operation and the DC
Bus Voltage is present.
Red LED (RDY LED is Green):
The Servo Drive Module is ready
for operation, but the DC Bus
Voltage is too high.
Orange LED (RDY LED is
Orange): The machine is booting
up and communication is being
established.

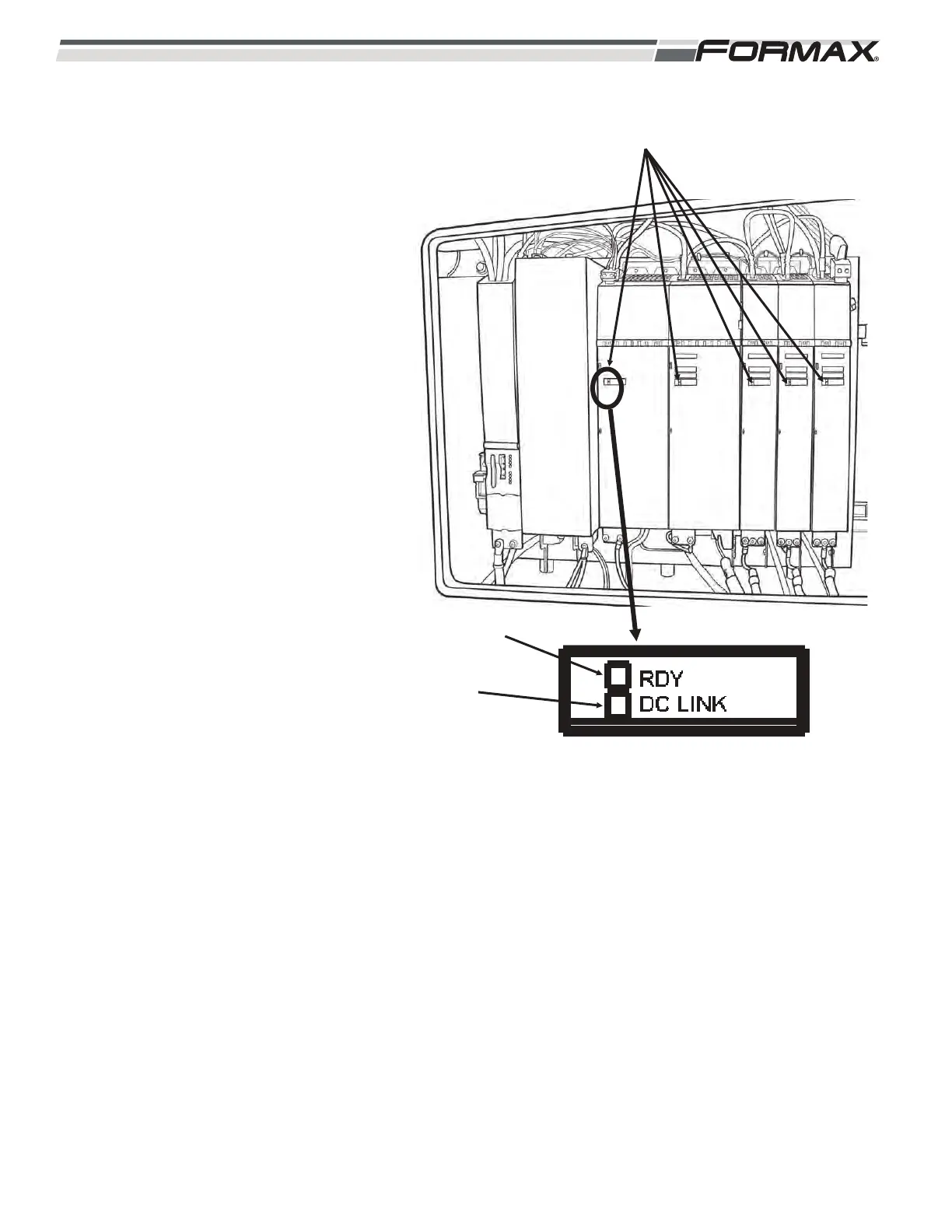

ILLUSTRATION 58
STATUS LED'S
READY LED
DC LINK
LED
