Formax PowerMax 3000 - Page 281

031914 M3-65

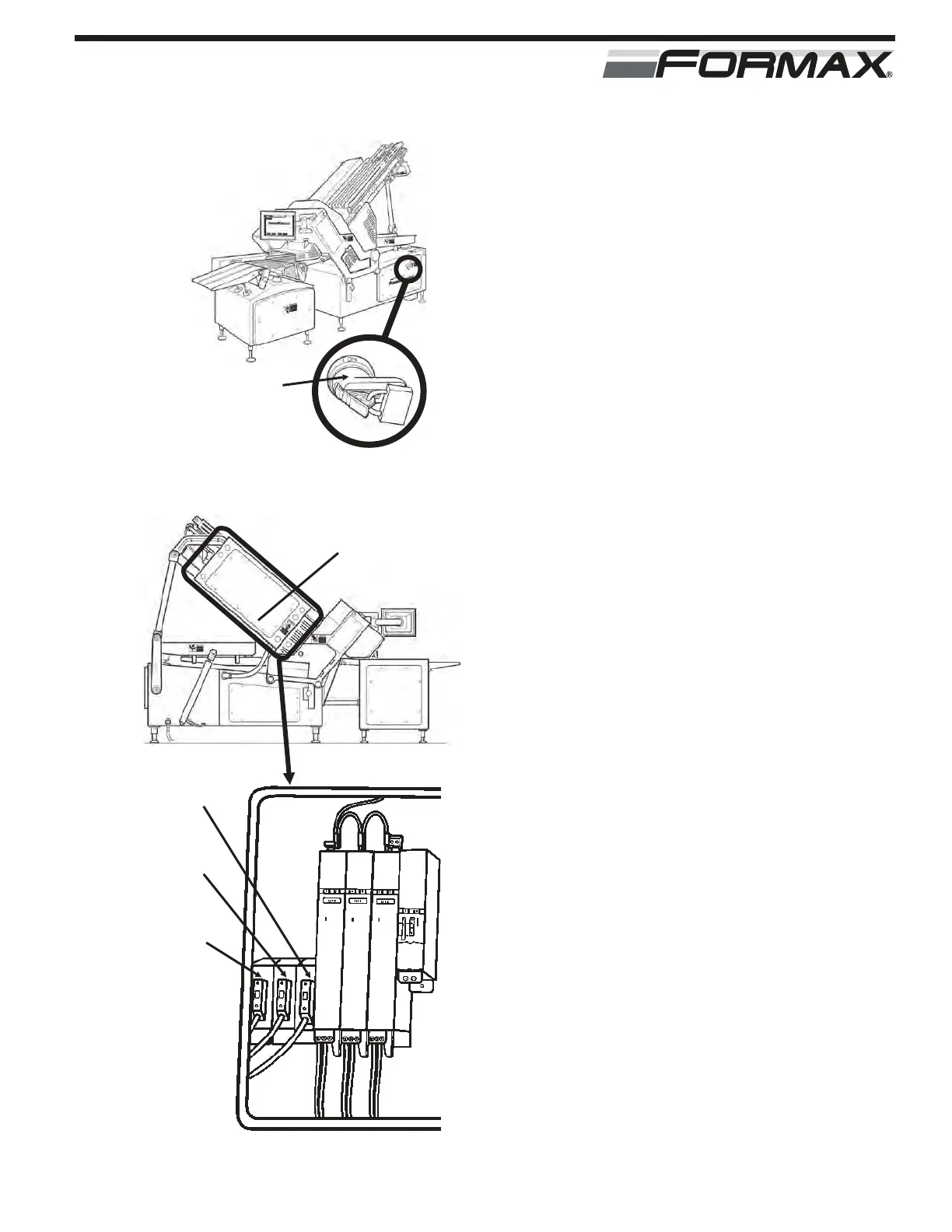

STEP 1 TURN “OFF” THE MAIN
POWER AND AIR
ADANGER!
Follow your company’s
Lockout/Tagout procedures when
performing any maintenance on
your Formax machine. (Illustration 1)
STEP 2 REMOVE THE COVER
(13mm WRENCH)
(Illustration 2)
FEEDBACK CONVERTER REPLACEMENT
U13, U14 AND U15
ILLUSTRATION 2
REMOVE COVER
(13mm WRENCH)
ILLUSTRATION 3
U13
FEEDBACK
HUB
MAIN POWER
HANDLE WITH
LOCKOUT
DEVICE
ILLUSTRATION 1
U14
FEEDBACK
HUB
U15
FEEDBACK
HUB
