STEP 3 REMOVE THE FEEDBACK
CONVERTER (Illustration 3)
1. Remove the terminal cable. (X500) (push
in the tab and pull up) (Illustration 5)
2. Remove the power cable. (X524)
3. Remove the grounding lugs. (Torx T20)
4. Loosen the resolver cable plug retaining
screws. (X520)
5. Remove the cable.
6. Disengage the module holddown from the
bracket. (insert screwdriver into the
bottom of the holddown and pull down)
(Illustration 6)

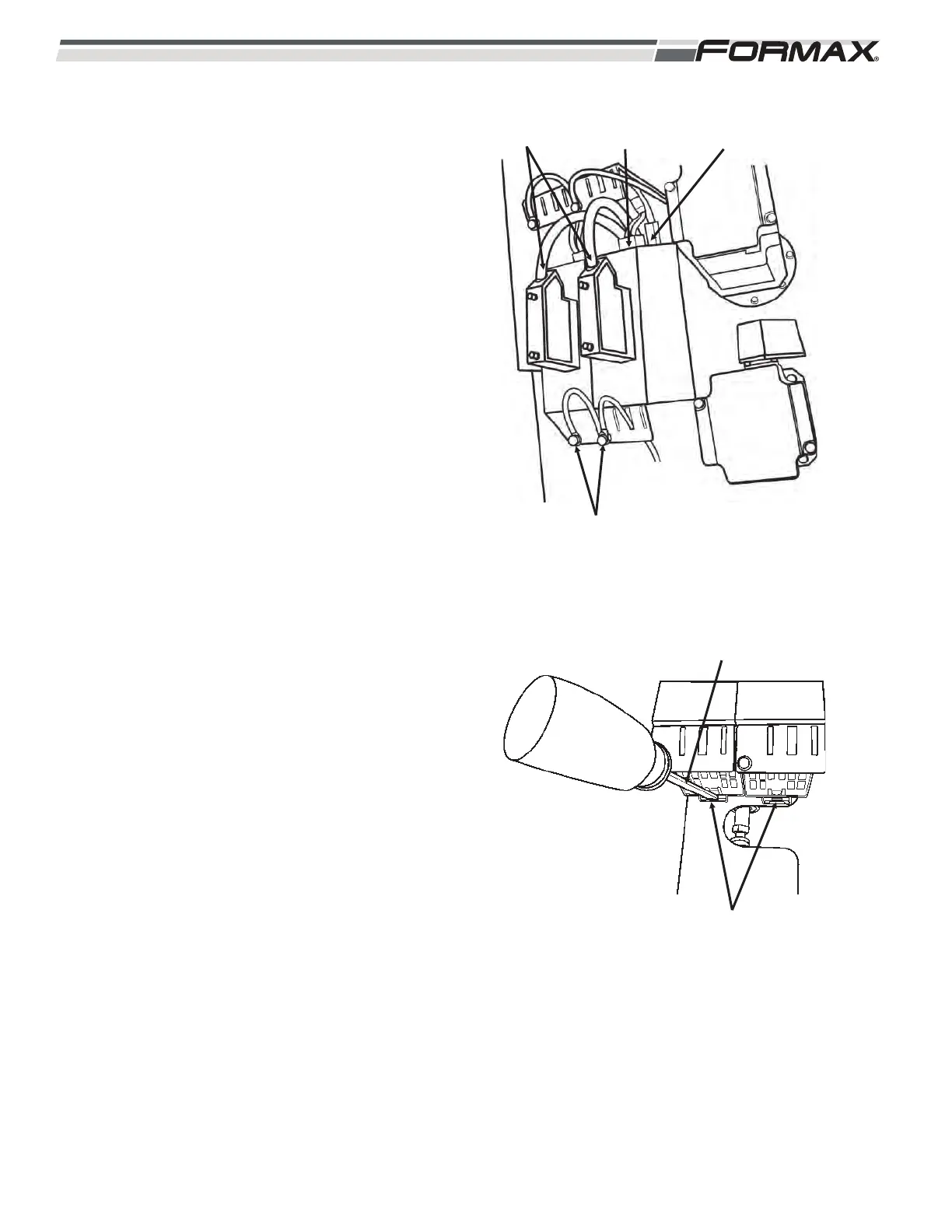

ILLUSTRATION 6
SCREWDRIVER
HOLDDOWNS
ILLUSTRATION 5
TERMINAL CABLE
(X500)
GROUNDING LUGS
POWER CABLE
(X524)
RESOLVER
CABLES
