M4-8 031914

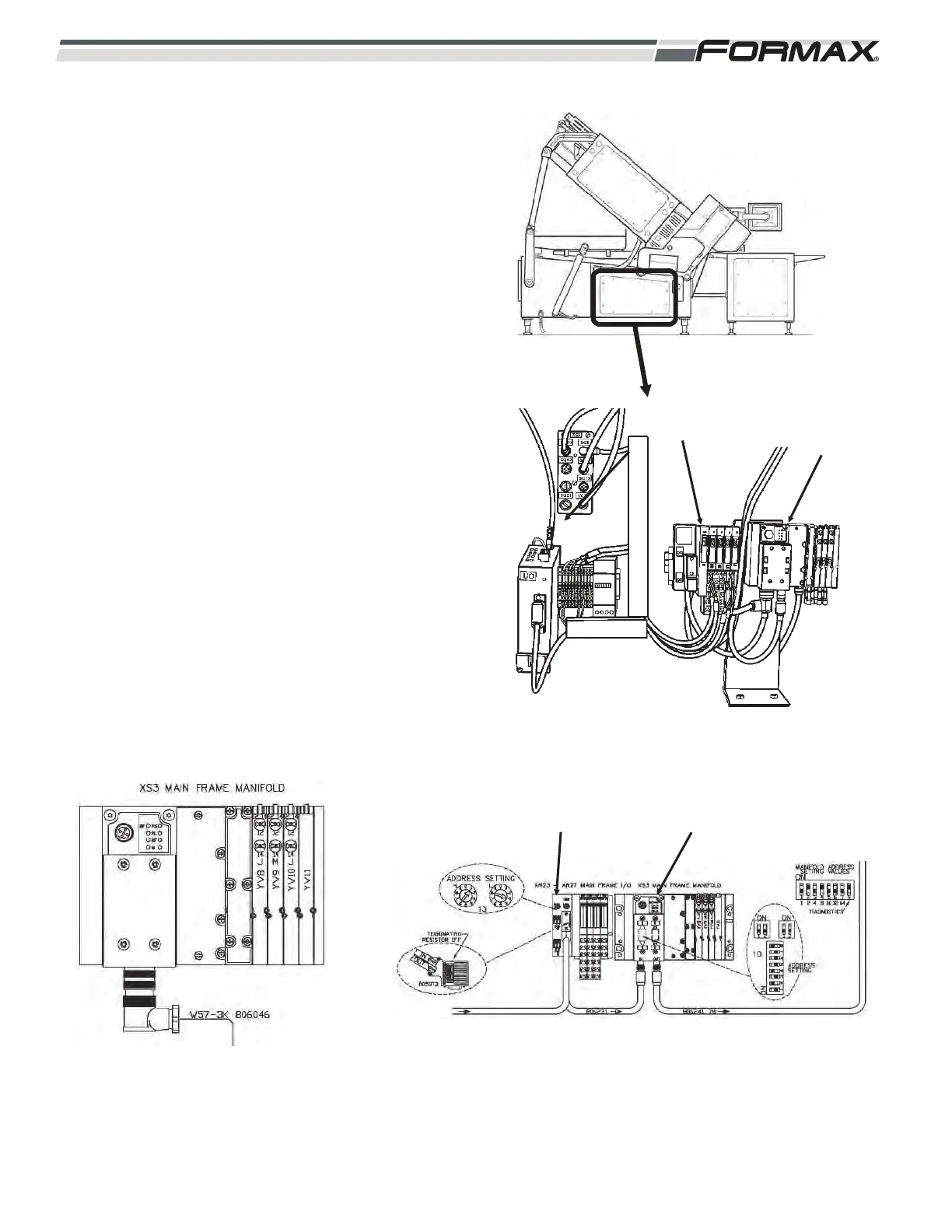

XS3 Main Frame Manifold: The Main
Profibus Cable travels from the AR23 Main
Frame Node to the XS3 Main Frame
Manifold and then out to the A8 Modbus
Module. (Illustrations 11 and 12) The XS3
Main Frame Manifold send output signals
to operate the pneumatic directional valves
that control the Safety Scanner Cover and
the optional Slicing Conveyor pop-up pins
(Illustration 13).
ILLUSTRATION 11
XS3 MAIN
FRAME
MANIFOLD
AR23 MAIN
FRAME NODE
ILLUSTRATION 12
AR23 MAIN
FRAME NODE
XS3 MAIN FRAME
MANIFOLD
ILLUSTRATION 13
