5. The QF4 Breaker transfers 24 VDC on
wire “7” to all of the Input/Output
Modules and to operate the
components controlled by the Remote
Nodes. (Illustration 49) This voltage is
“on” as long as the Slicer is powered
up and the QF4 Breaker is closed.
6. The QF6 Breaker transfers 24 VDC on
wire “88” to the M16 and M17 Linear
and Rotary Actuator Servo Motors.
(Illustration 49 and 50) This voltage is
used as a supply voltage to power up
the Control Unit in each Motor.

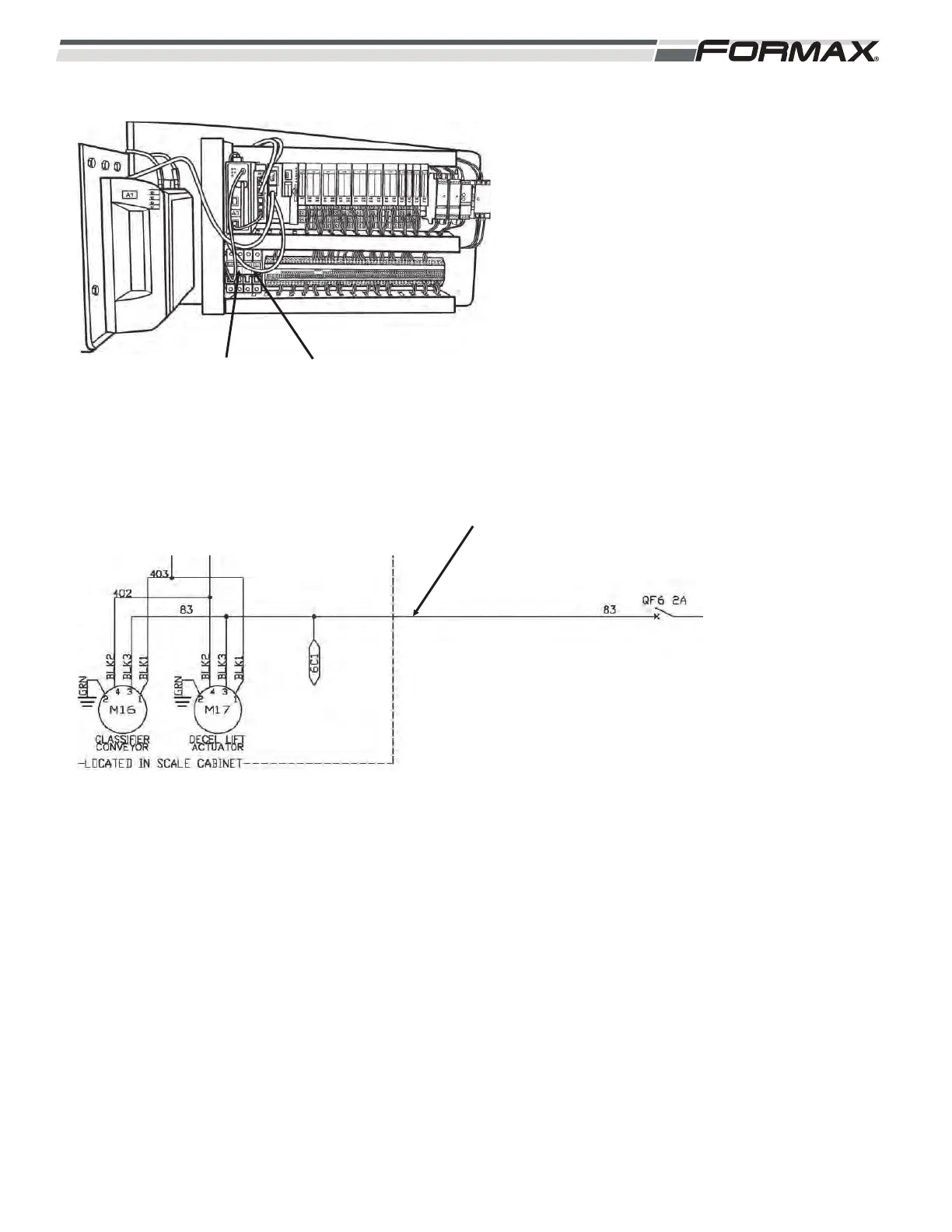

ILLUSTRATION 50
24 VDC SUPPLY VOLTAGE
ILLUSTRATION 49
QF4 CIRCUIT
BREAKER
QF6 CIRCUIT
BREAKER
To Next Page
