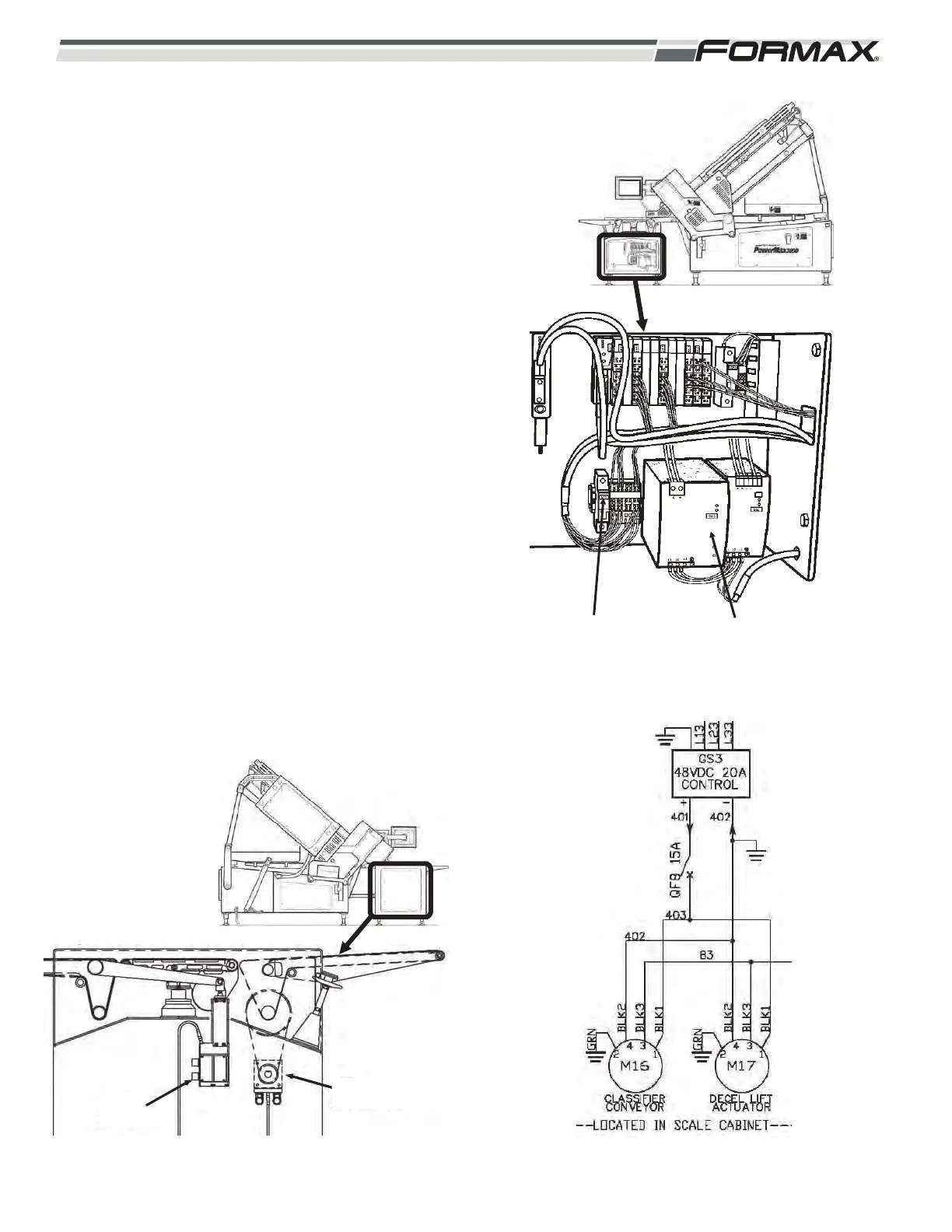

SYSTEM OVERVIEW - GS3 - 48 VDC POWER
SUPPLY (M16 Rotary Actuator/M17 Linear
Actuator Servo Motor Power)
The GS4 Power Supply supplies 48 VDC Servo Motor
Power voltage to the M16 and M17 Linear and Rotary
Actuators. (Illustration 51 and 52) This voltage is used to
run the Servo Motors that operate these Actuators.
These Motors are located in the Scale Cabinet.
1. The KM3 Contactor supplies 3-phase AC Supply
Voltage to the GS3 and GS2 Power Supplies.
(Illustration 51)
2. The GS3 Power Supply rectifies the 3-phase 460
AC to 48 VDC. 48 VDC is sent on wire “401” to
the QF8 Circuit Breaker. (Illustration 52)
3. The “common” wire 402 is sent through the Motor
Power Cable to the M16 and M17 Servo Motors.
4. The QF8 Circuit Breaker sends the 48 VDC on
wire 403 directly through the Motor Power Cables
to the M16 Classifier Conveyor Servo Motor and
to the M17 Decel Lift Servo Motor. (Illustration 53)
5. These Servo Motors can run only when the KM3
Contactor is energized.
M4-24 031914
ILLUSTRATION 52
ILLUSTRATION 53
M17
DECEL LIFT
M16
CLASSIFIER
GS3 POWER SUPPLYQF8 CIRCUIT BREAKER
ILLUSTRATION 51
