IMPORTANT!
Each of the “Safety Input,” Safety Output and Safety
Power Modules has a specific address that must be
set on the DIP Switches on the side of each module!
(Illustration 87) When replacing any of these Safety
Modules, refer to the Electrical Schematic and make
sure the “Address” DIP Switches are set correctly for
that module. If they are not set correctly, a “System
Fault” will occur and the module will not work!

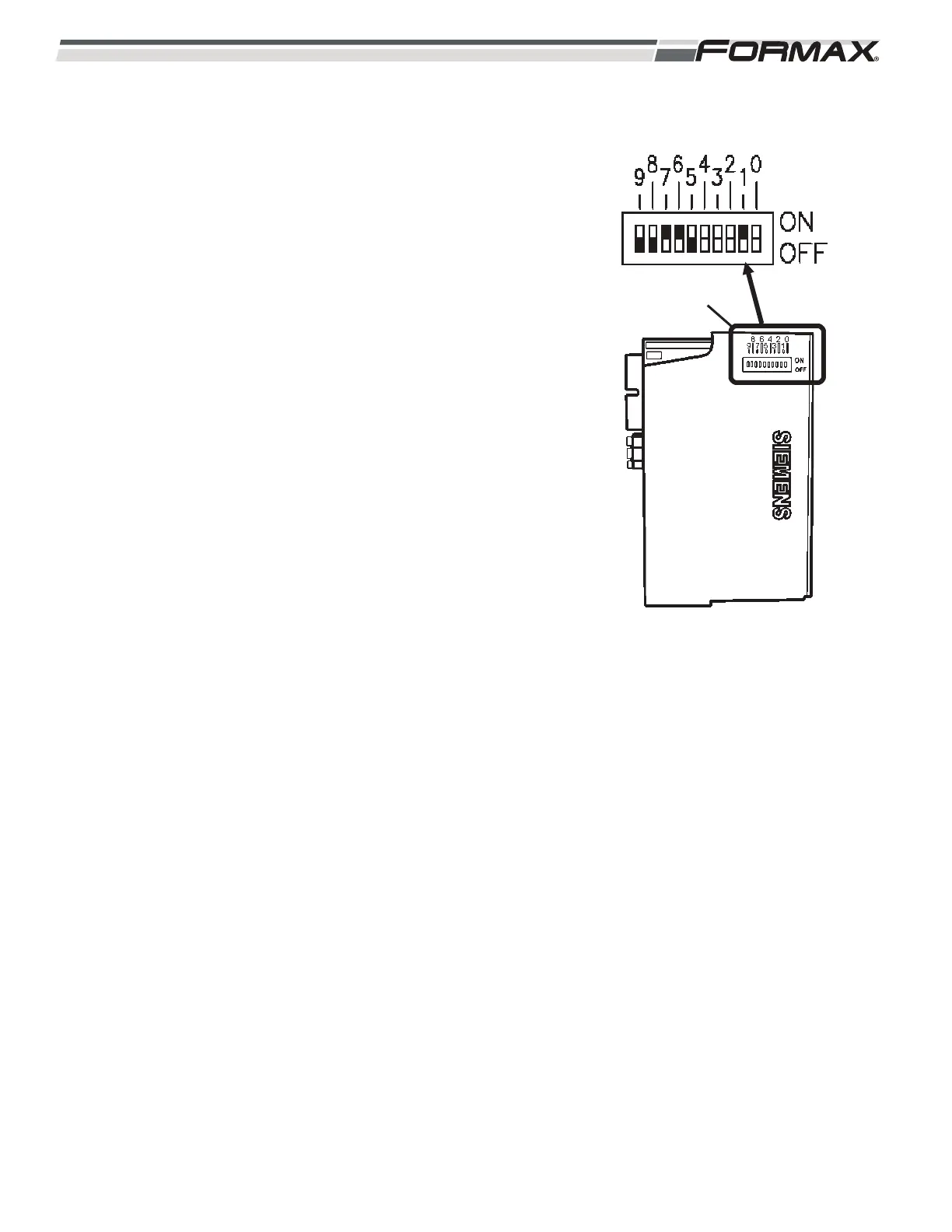

ILLUSTRATION 87
AR8 ADDRESS SETTINGS
DIP SWITCHES
