AR16 Terminal Connections:
Terminal 15 - 24 VDC Control Voltage from GS1
Power Supply through QF6 fuse on
wire 83.
Terminal 16 - Common Wire
Terminal 24 - 24 VDC Supply Voltage from GS2
Power Supply through QF7 fuse on
wire 303.
Terminal 25 - 24 VDC Supply Voltage sent on wire
303 to the AR18, AR19 and AR20
Stepper Modules used to run
Dynamic Scale Conveyor Motors.
Terminal 26 - Common wire sent on wire 302 to the
AR18, AR19 and AR20 Stepper
Modules used to run Dynamic Scale
Conveyor Motors.

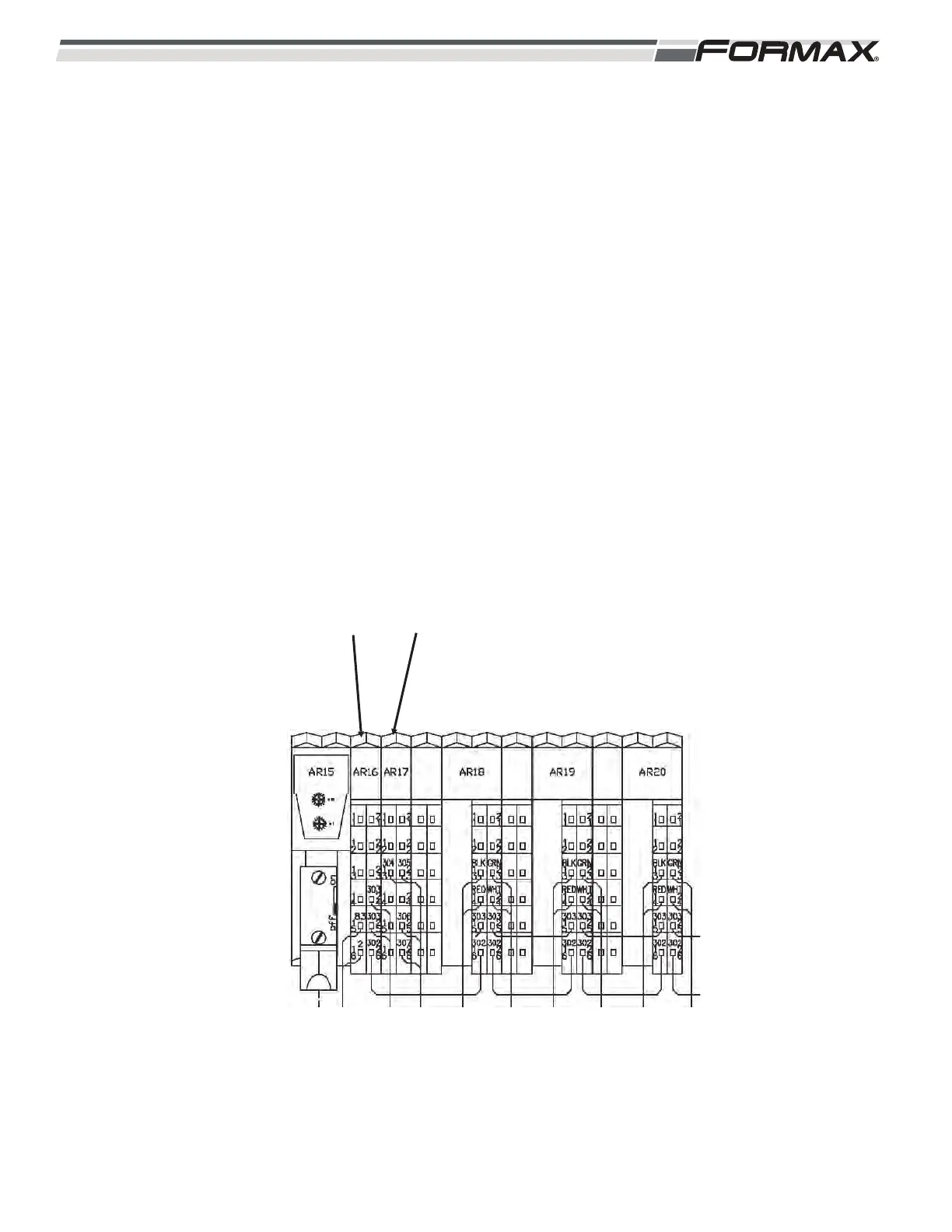

ILLUSTRATION 137
AR16 AR17
