NSHS-8 031914

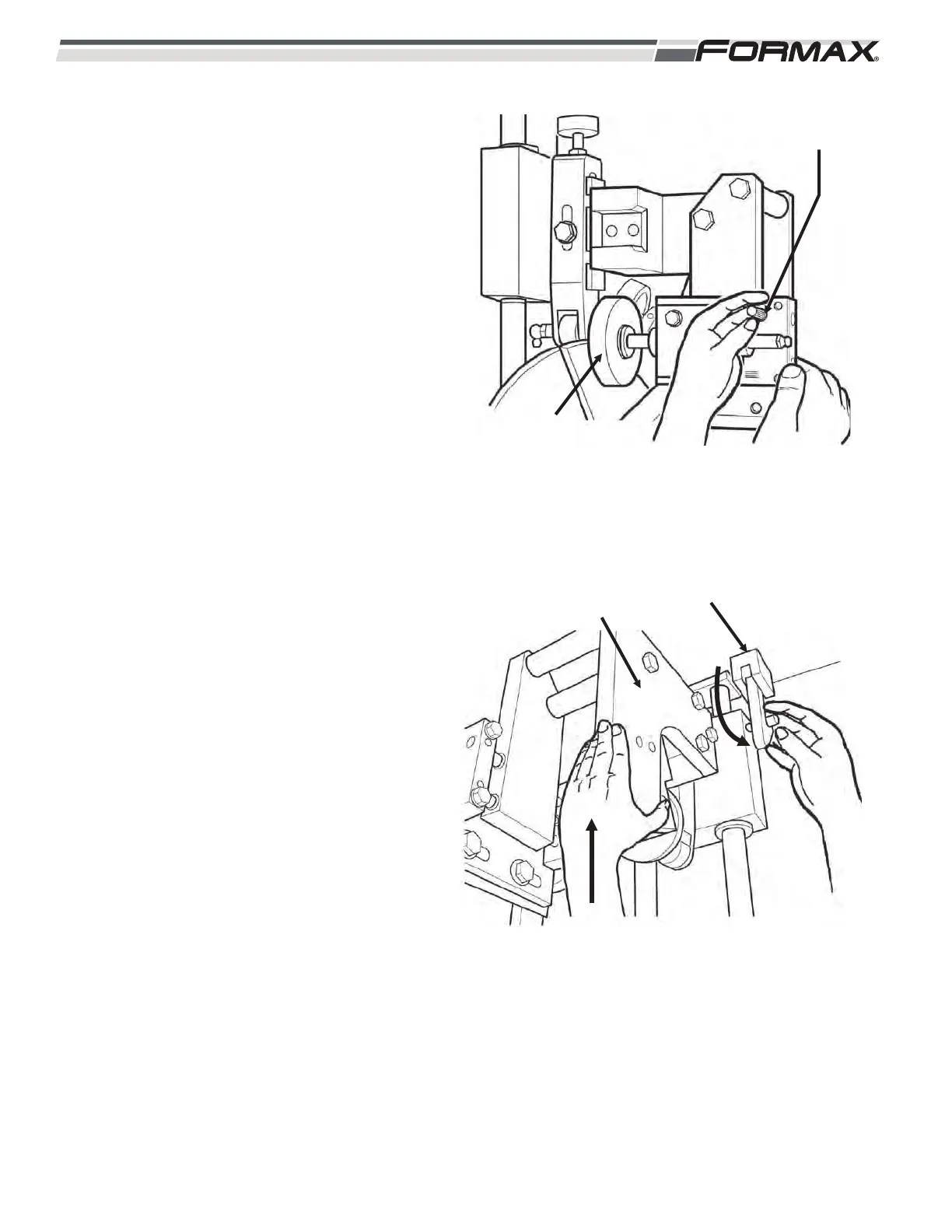

STEP 10 REMOVE THE KNIFE
1. Press the “MASTER OFF” button and
open the door.
2. Retract the hone stone by pushing and
turning the knob until it remains retracted.
3. Pull the deburr assembly back towards
you and engage the locking pin.
(Illustration 18)
ACAUTION!
The deburr stone must be retracted to
avoid damaging the cutting edge.
4. Raise the honing mechanism and latch it
at the top. (Illustration 19)
LOCKING PIN
DEBURR
STONE
ILLUSTRATION 18
LATCH
HONING
MECHANISM
ILLUSTRATION 19
