MOVE TO CLEAN: The Slicer must be put in the
“Clean-up” position for assembly, disassembly
and sanitation purposes. (Illustration 26)
When the “Move To Clean” button is “touched”
and “held”:
1. All Slicer components move to their
“Clean-up” position. (Illustration 27)
2. The Infeed Structure lowers to the “down”
position for access to the Infeed
Conveyors, Shear Bar and Knife Blade.
031914 6-11

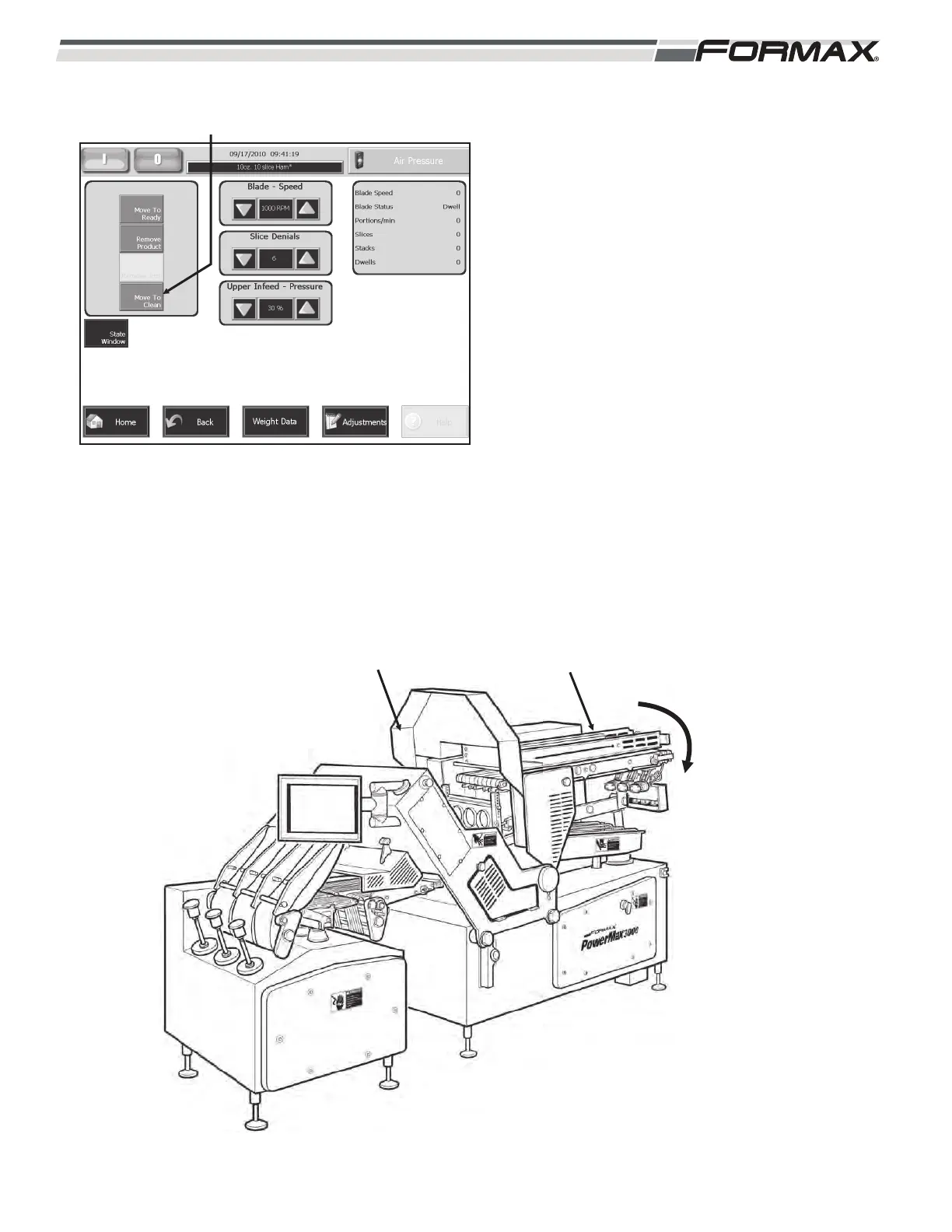

ILLUSTRATION 26
“MOVE TO CLEAN” BUTTON
ILLUSTRATION 27
INFEED STRUCTUREKNIFE COVER
