GRIP #1, #2 AND #3 OFFSET: The “Grip Offset”
adjustment allows you to fine-tune the position of
each Gripper when they “Grip” the product.

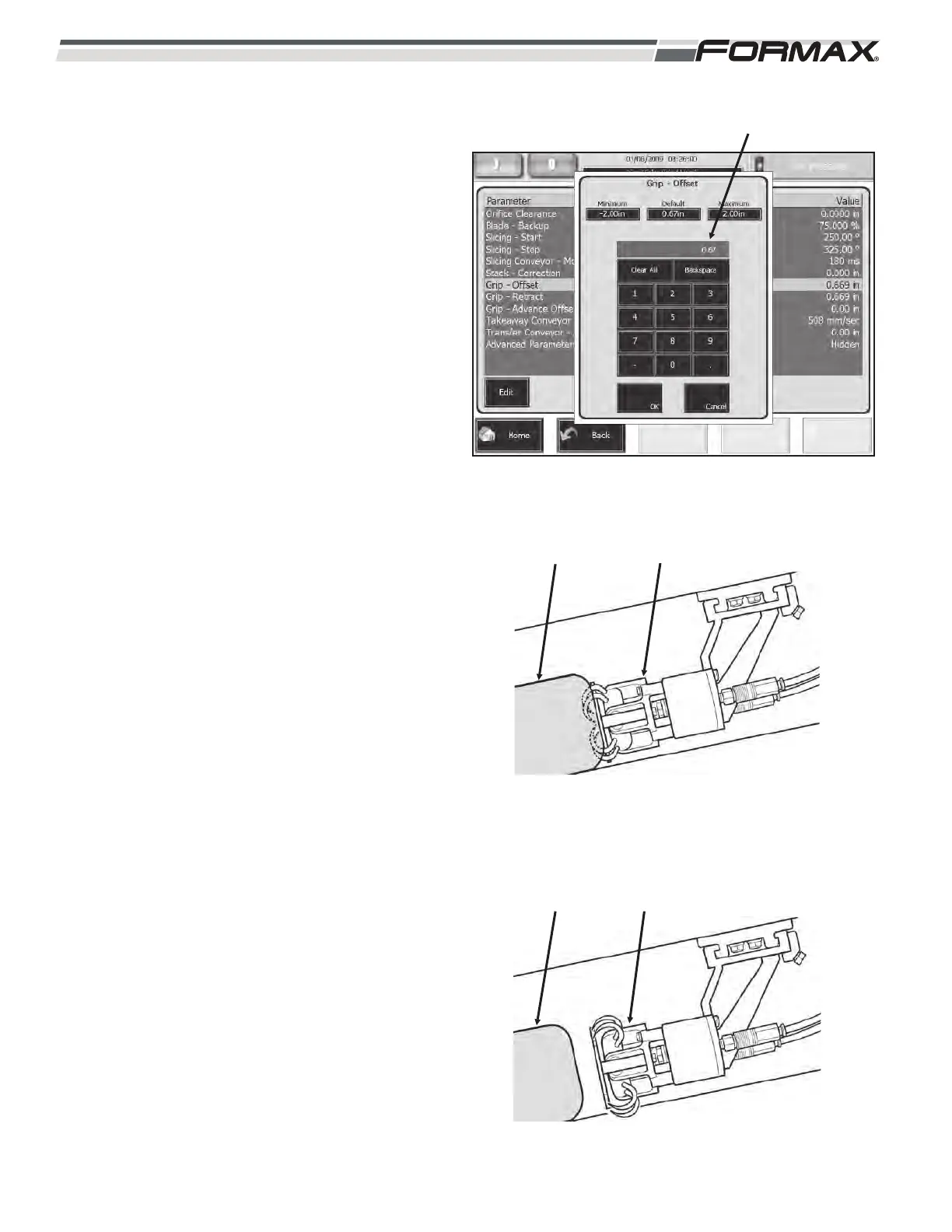

(Illustration 85 and 86) The “Grip Offset”
adjustment can be set from - 50.80mm (-2.0
inches) to +50.80mm (+2.0 inches).
If the Gripper is traveling too far when they grip the
product, decrease the setting.
If the Gripper is not traveling far enough before
gripping the product, increase the setting.
(Illustration 87)
6-32 031914
GRIPPER NOT TRAVELING
FAR ENOUGH
PRODUCT
ILLUSTRATION 87
CORRECT GRIPPER OFFSETPRODUCT
ILLUSTRATION 86
ILLUSTRATION 85
“GRIP OFFSET” ADJUSTMENT
