Fujitsu M10-4 - Removing the Front Cover

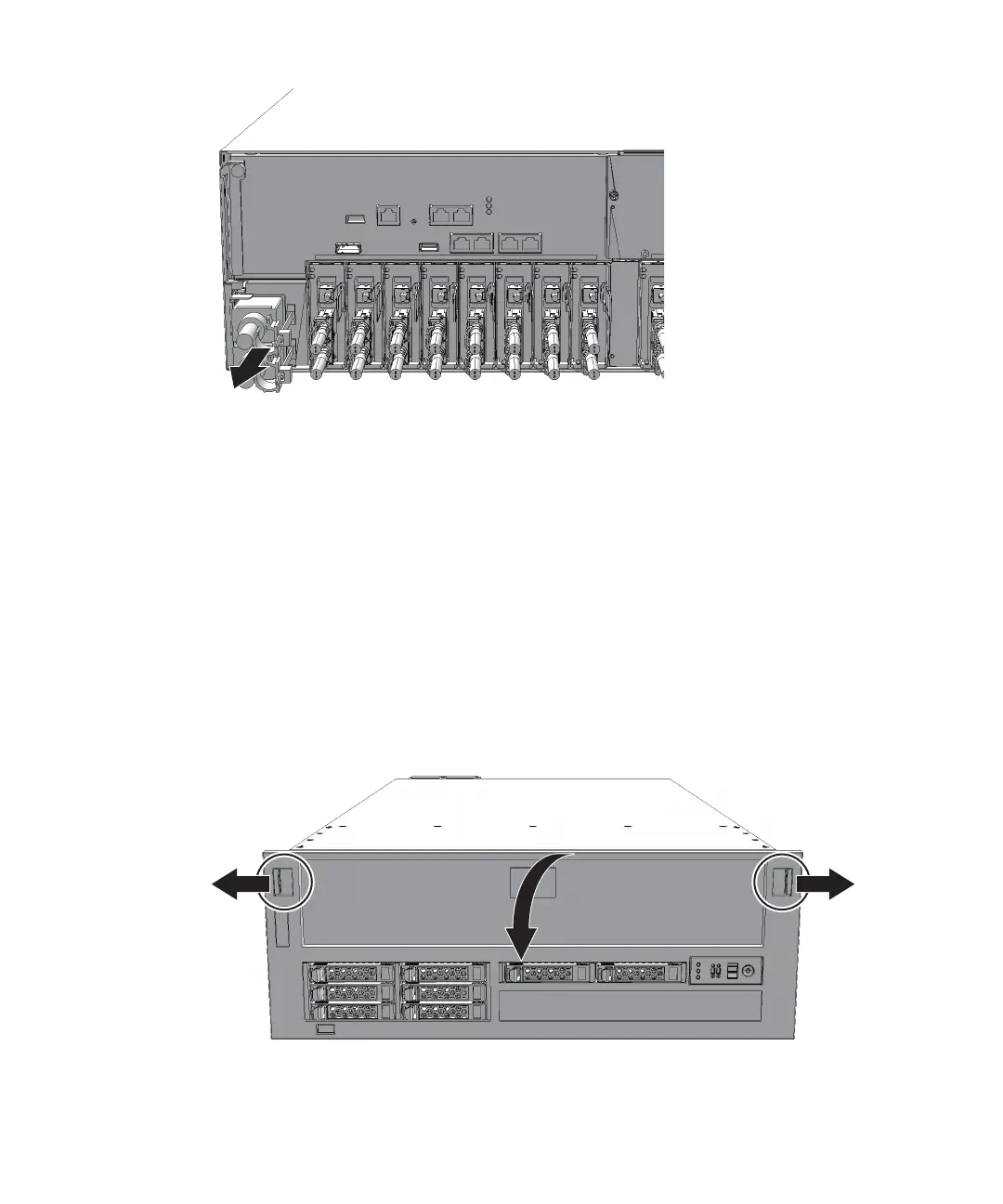

Figure 5-11
Removing the power cord
5.9.5 Removing the front cover
To perform maintenance on the following FRUs from the front of the chassis, remove
the front cover before starting the work:
- Fan unit
- Power supply unit
- PSU backplane unit
- Operation panel
1.
Release the right and left slide locks of the front cover and pull it toward s the
front.
Figure
5-12
Releasing the slide locks of the front cover
2.
Lift the front cover upwards to remove it.
Fujitsu M10-4/Fujitsu M10-4S/SPARC M10-4/SPARC M10-4S Service Manual
･
November 201486
